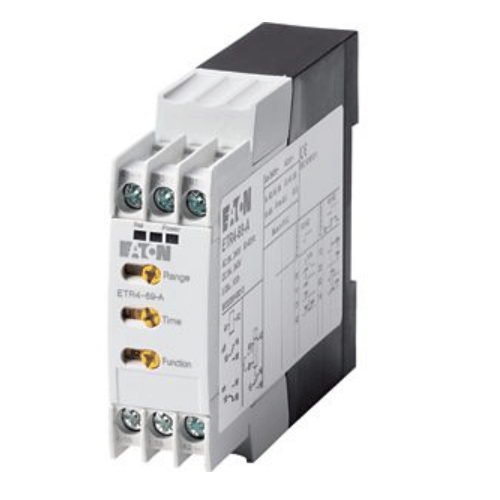

Eaton Moeller 031891 ETR4-69-A Timing relay

Eaton Moeller® Series ETR4-69-A Timing Relay

Reliable and versatile electronic timing relay designed for controlling processes and automation sequences in industrial applications. The ETR4-69-A offers precise On-Delay (Response Delay) functionality within a compact, DIN rail mountable housing.

Key Features:

• Precise Timing: Offers adjustable On-Delay timing across a wide range.
• Wide Voltage Range: Compatible with a broad spectrum of AC and DC control voltages for flexible application.
• Compact Design: Space-saving 22.5 mm width allows for high-density panel mounting.
• Clear Status Indication: LEDs typically indicate power and relay status (exact behavior model-specific).
• High Reliability: Built to meet stringent international standards for industrial use.

Product Specifications:

• Brand: Eaton
• Series: Moeller® ETR4
• Product Type: Timing Relay
• Catalog Number: 031891
• Model Code: ETR4-69-A
• EAN: 4015080318910
• Function: On-Delay (Response Delay / Ansprechverzögert)
• Voltage Rating: 24 - 240 V AC (50/60 Hz), 24 - 240 V DC
• Timing Range: 0.05 seconds - 100 hours (Adjustable via front potentiometer)
• Output: 1 Changeover (CO) contact / 1 Wechsler
• Product Length/Depth: 103 mm
• Product Height: 83 mm
• Product Width: 23 mm
• Product Weight: 0.11 kg
• Compliances & Certifications:
  • UL Listed (File No. E29184, Category Control No. NKCR)
  • UL 508
  • CSA Certified (File No. 012528, Class No. 3211-03)
  • CSA-C22.2 No. 14
  • CE Marked
  • IEC/EN 61812-1
  • IEC/EN 60947-5-1
  • VDE 0435
