Eaton FWC-20A10F Fuse, 20A 600V, Fast-Acting Ferrule, 10x38mm - Pack of 10
Eaton FWC-20A10F Fuse, 20A 600V, Fast-Acting Ferrule, 10x38mm - Pack of 10
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

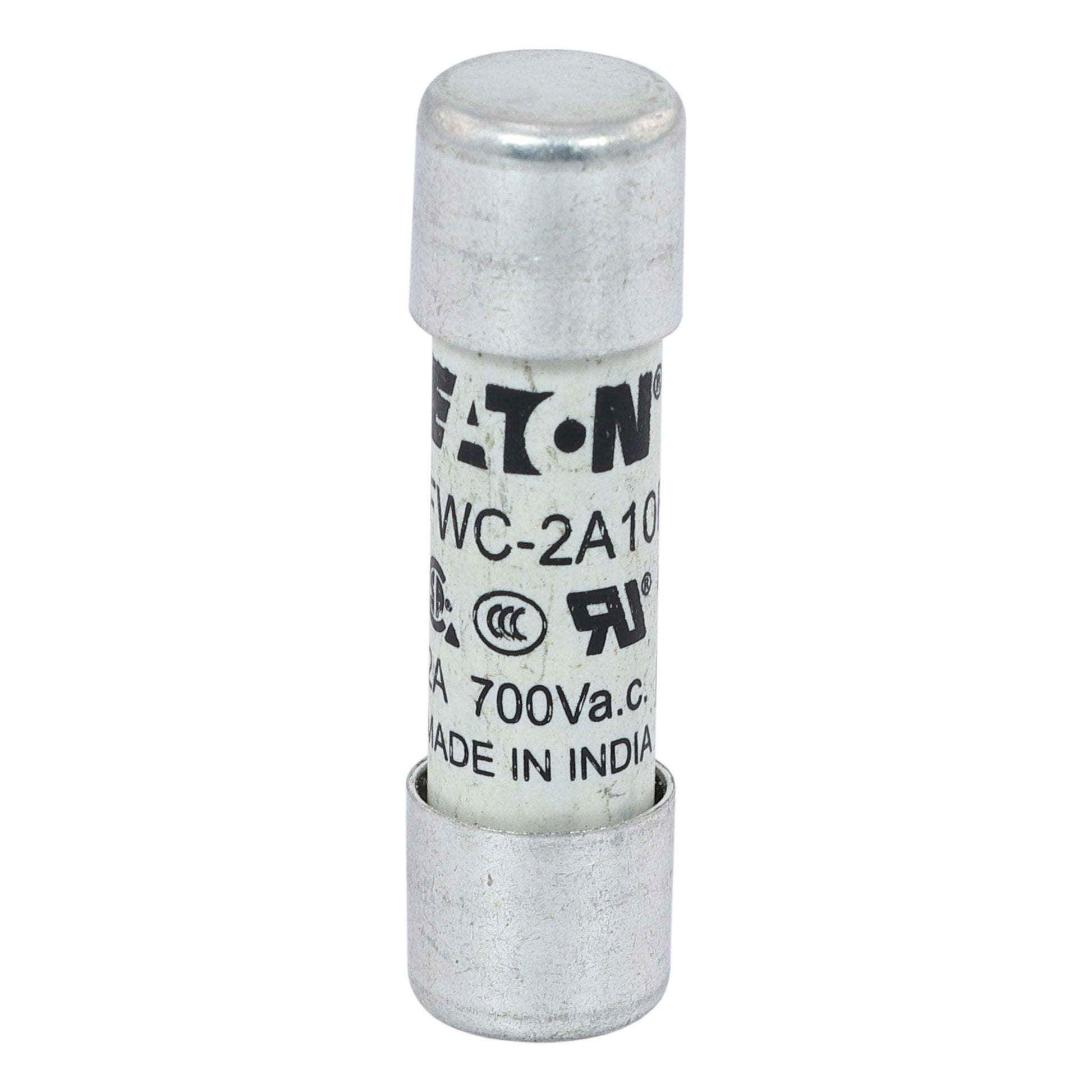

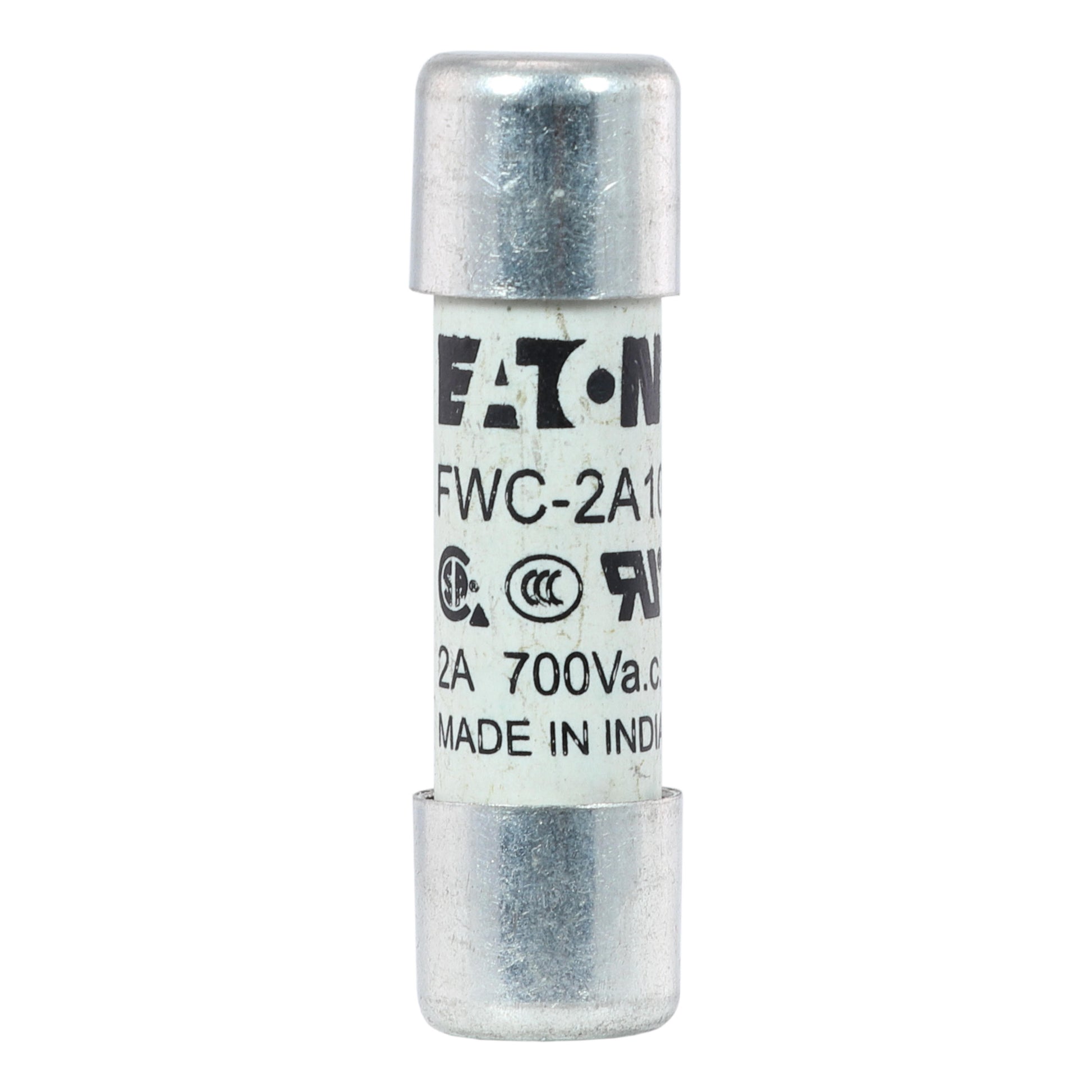

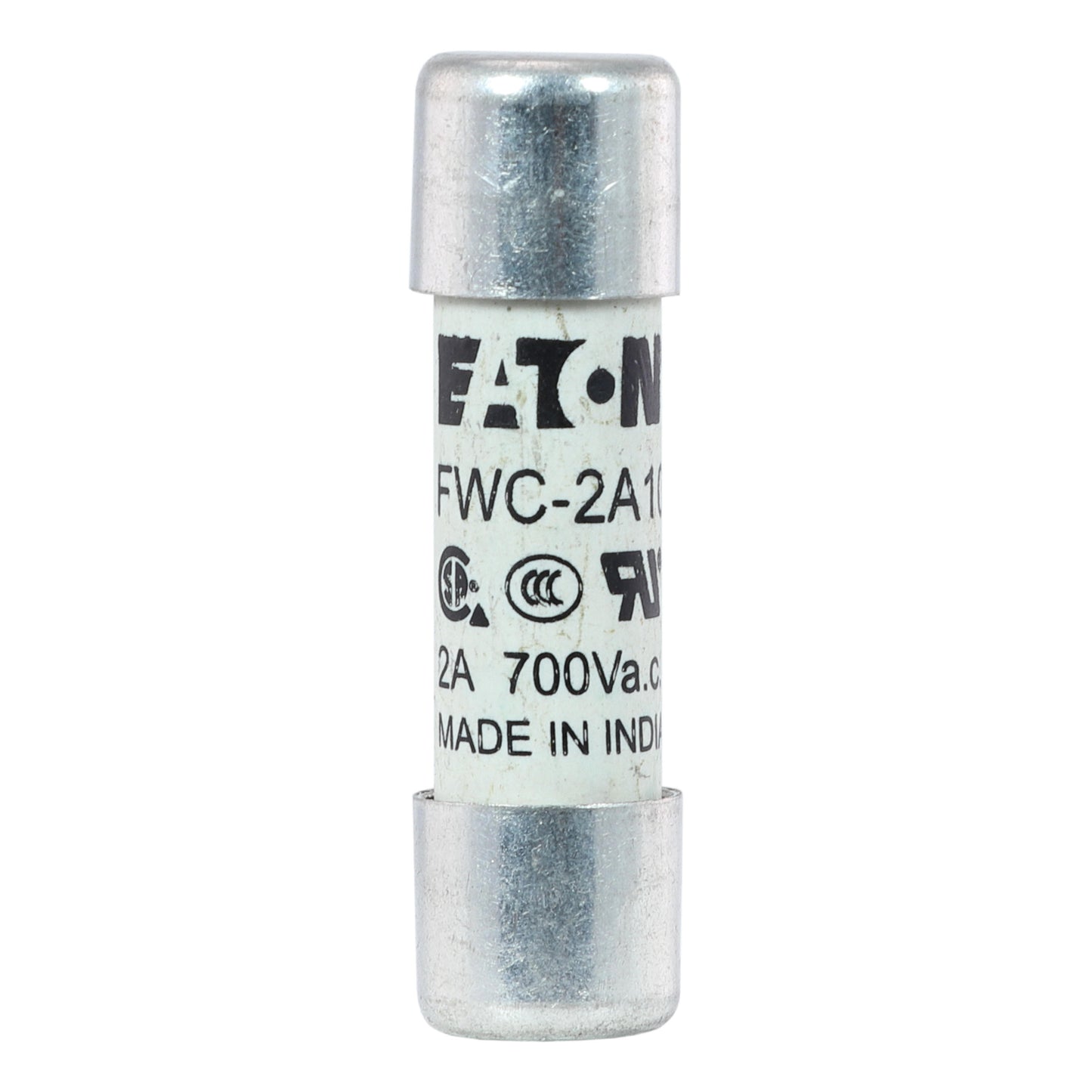

Eaton Bussmann Series High-Speed Cylindrical Fuse - FWC-2A10F
Manufacturer: Eaton
Product Series: Bussmann FWC Series
High-speed, non-indicating cylindrical fuse designed for the protection of semiconductors, DC common buses, DC drives, and power converters/rectifiers.
Specifications
| Parameter | Value |
|---|---|
| Catalog Number | FWC-2A10F |
| Amperage Rating | 2 A |
| Voltage Rating | 600 Vac / 700 Vdc |
| Interrupt Rating | 200 kA (AC) |
| 10 kA (DC) | |
| Class | Class aR |
| Utilization Category | aR (Semiconductor Protection) |
| Fuse Size | 10 x 38 mm |
| Connection Type | Ferrule End x Ferrule End |
| Body Material | Ceramic |
| Pre-arc (I²t) | 0.5 A²s |
| Clearing (I²t) at 660V | 3 A²s |
| Watt Losses | 1.2 W |
Physical Dimensions
| Parameter | Value |
|---|---|
| Diameter | 10 mm |
| Length | 38 mm |
| Weight | 8.8 g |
Compliance & Certifications
| Standard | Status |
|---|---|
| RoHS Compliant | Yes |
| CE Marked | Yes |
| UL Recognized | Yes |
| CSA Certified | Yes |
