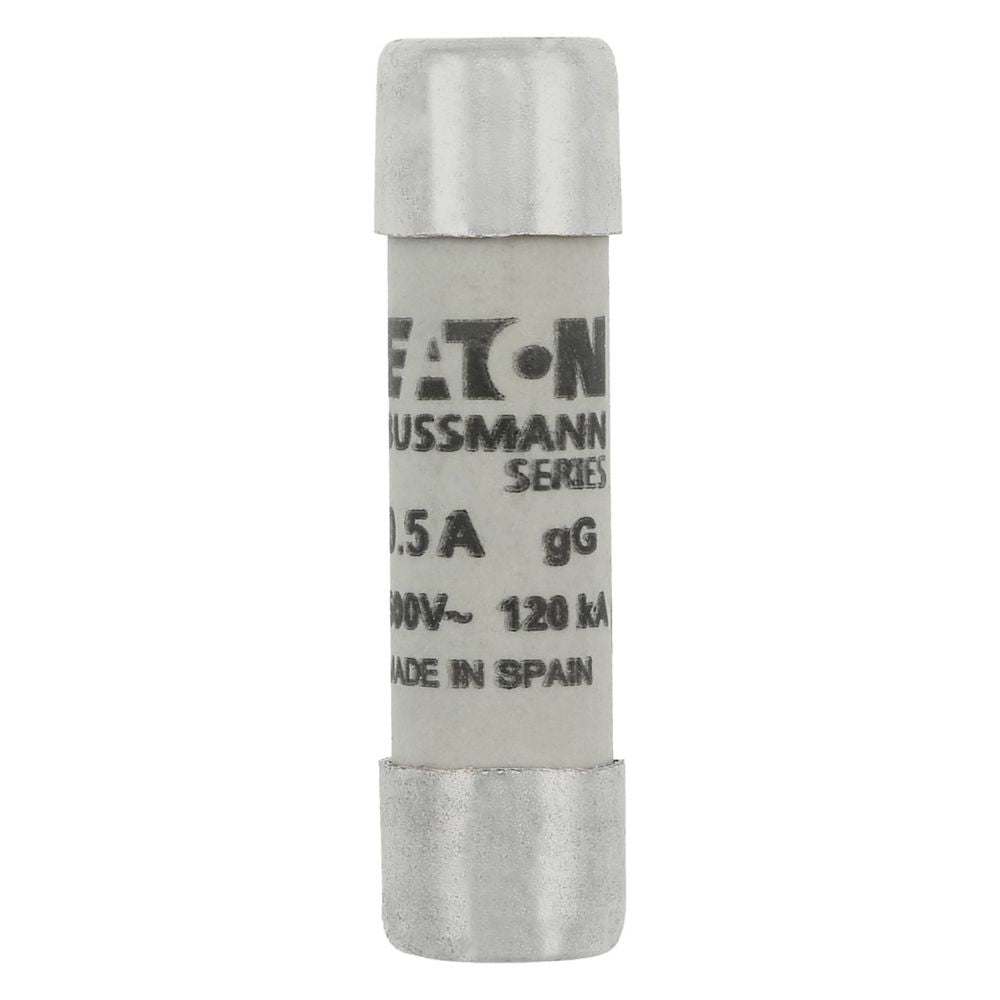

Eaton C10G0.5 Cylindrical Fuse, 0.5A 500Vac, Class gG/gL, 10x38mm - Pack of 10

Eaton Bussmann C10G0.5 Low Voltage Cylindrical Fuse – Product Specifications

• Product Name: Eaton Bussmann Series Low Voltage Cylindrical Fuse
• Catalog Number: C10G0.5
• Model Code: CYLINDRICAL FUSE 10 x 38 0.5A gG 500V AC
• UPC: 051712589871
• EAN: 5027590493376

Physical Dimensions:

• Length/Depth: 38 mm
• Height: 10 mm
• Width: 10 mm
• Weight: 7.7 g

Certifications & Compliance:

• RoHS Compliant
• CE Marked
• Certification Standard: IEC 60269

Electrical Specifications:

• Amperage Rating: 0.5 A
• Voltage Rating (AC): 500 V
• Current Type: AC
• Frequency Range: 45 Hz to 62 Hz
• Breaking Capacity: 120 kA
• Class: gL/gG
• Utilization Category: gG (for cable and equipment protection)
• Fuse Type: C10G
• Voltage Type: AC
• Watt Losses: 1.43 W

Design & Construction:

• Fuse Size: 10 x 38 mm
• Shape: Cylindrical
• Material: Ceramic
• Connection Type: Ferrule end x ferrule end
• Mounting Method: Fuse holder compatible (CHM Modular fuse holder)

Additional Information:

• Application: Industrial and general-purpose use
• Quantity per Unit: 10
