Eaton Bussmann MDA-10-R Fuse, 6.3x32mm, 10A 250VAC, Time-Delay Ceramic - Pack of 10

Eaton Bussmann MDA-10-R Fuse

The Eaton Bussmann MDA-10-R is a robust and reliable time-delay ceramic fuse, meticulously engineered to provide superior circuit protection in applications demanding high current handling and excellent surge tolerance. Measuring 6.3x32mm, this medium-acting fuse is designed to accommodate temporary inrush currents typical of motor start-ups or power supply charging, while consistently delivering unwavering protection against sustained overloads and damaging short-circuit conditions.

Manufacturer Information:

• Manufacturer: Eaton Bussmann
• Part Number: MDA-10-R
• Amperage: 10 Amperes (A)
• Voltage Rating: 250 Volts Alternating Current (VAC)
• Fuse Type: Time-Delay (Medium-Acting)
• Body Material: Ceramic

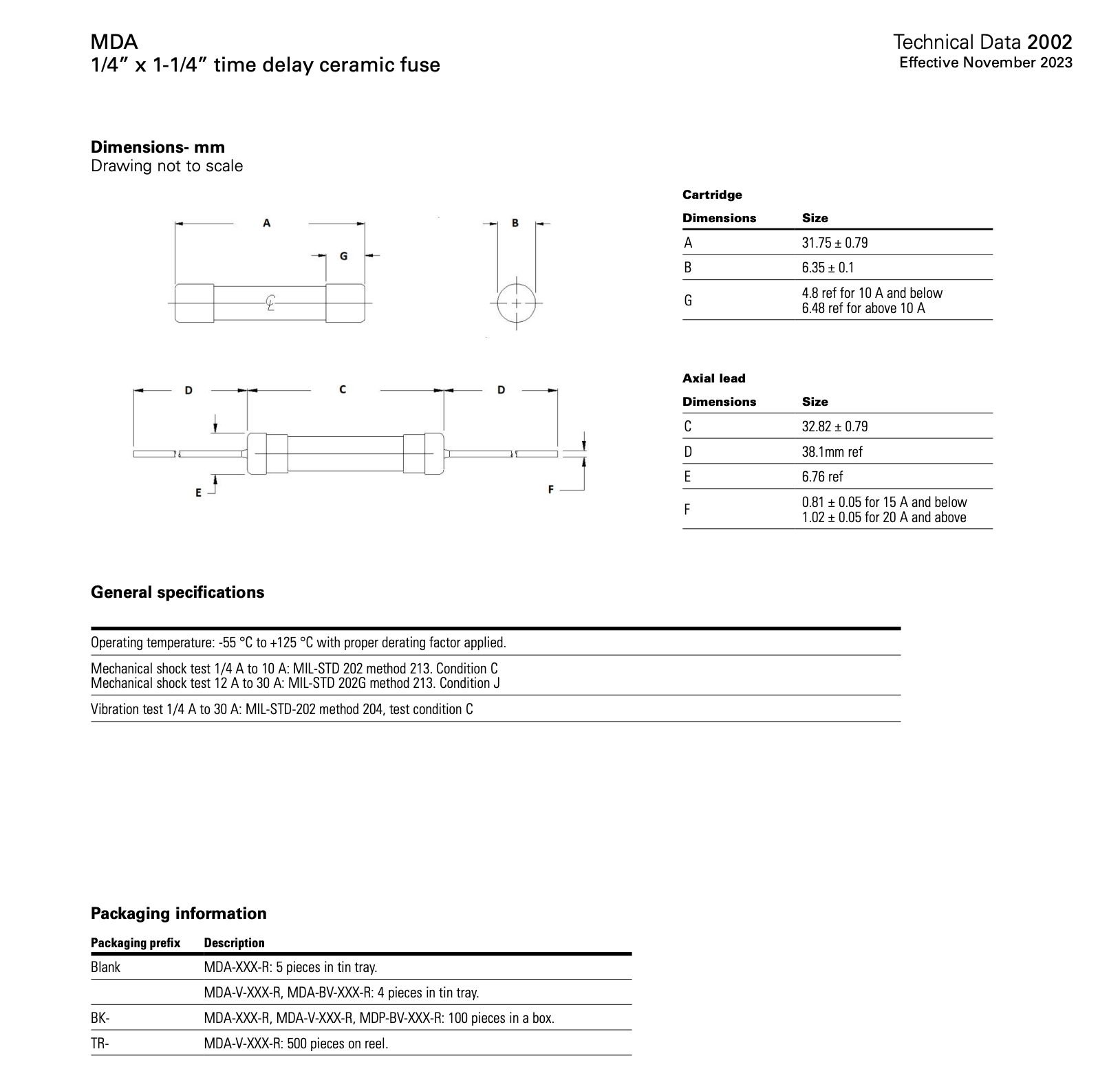

• Dimensions: 6.3mm Diameter x 32mm Length
• Breaking Capacity: Typically 10kA (Dependent on voltage and specific test standards. Consult Eaton Bussmann datasheets for precise values.)
• Compliance: UL Listed, CSA Certified (Common for Bussmann fuses; verify current certifications on Eaton Bussmann datasheets).

Key Features:

• Time-Delay Characteristics: Specifically designed to prevent premature opening from transient current spikes, making it ideal for the protection of inductive and capacitive loads that experience momentary overcurrents.
• High Interrupting Rating (HIR): The ceramic body construction contributes to a high interrupting rating, enabling the fuse to safely clear fault currents without rupturing, particularly vital in industrial and power applications.
• Exceptional Thermal Durability: Ceramic fuses offer superior thermal endurance and mechanical strength, making them well-suited for demanding environments where heat generation or mechanical stress might be factors.
• Industry-Standard Form Factor: The ubiquitous 6.3x32mm size ensures seamless integration and interchangeability with existing fuse holders and equipment, simplifying maintenance and upgrades.

Applications:

Eaton Bussmann MDA-10-R fuses are extensively utilized across various sectors for critical circuit protection, including:

• Industrial Machinery and Equipment
• Power Distribution Units (PDUs)
• Heaters and Motors
• Control Panels
• HVAC Systems
• Lighting Systems
• Commercial Appliances
