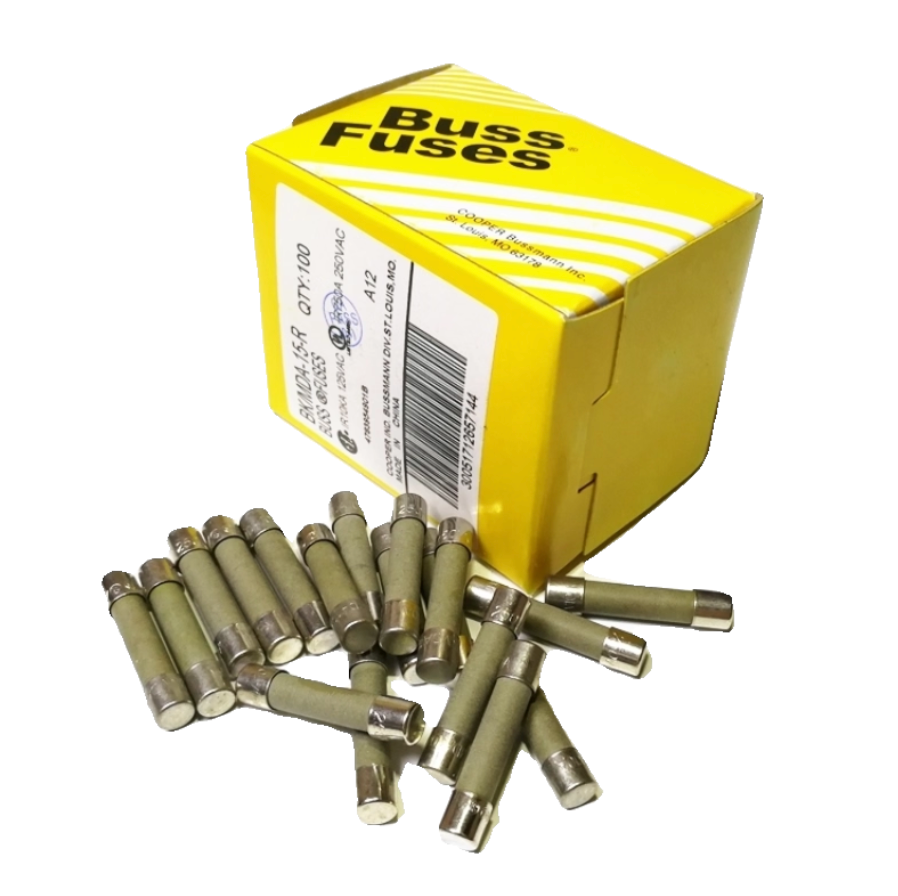

Eaton Bussmann MDA-1-R Fuse, 6.3x32mm, 2A 250VAC, Time-Delay Ceramic - Pack of 10

Eaton Bussmann MDA-2-R Fuse

The Eaton Bussmann MDA-2-R is a premium, time-delay ceramic fuse, specifically engineered to provide robust and reliable circuit protection across a diverse range of electrical and electronic applications. Housed within a durable 6.3x32mm ceramic body, this medium-acting fuse is expertly designed to manage and tolerate temporary inrush currents, thereby preventing nuisance tripping, while consistently delivering unwavering protection against sustained overloads and destructive short-circuit events to safeguard equipment integrity.

Manufacturer Information:

• Manufacturer: Eaton Bussmann
• Part Number: MDA-2-R (Note: The part number reflects the 2A rating)
• Amperage: 2 Amperes (A)
• Voltage Rating: 250 Volts Alternating Current (VAC)
• Fuse Type: Time-Delay (Medium-Acting)
• Body Material: Ceramic

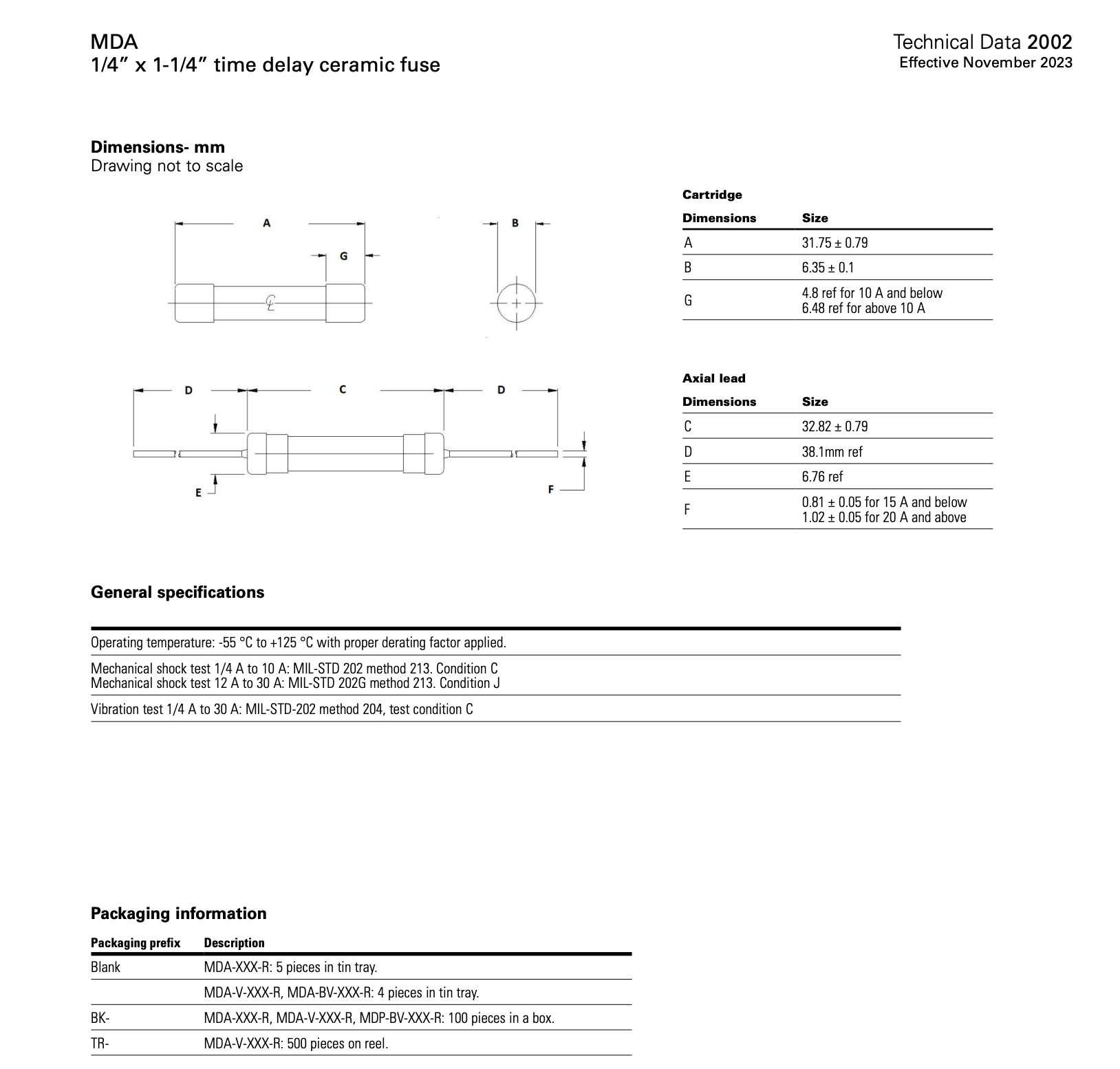

• Dimensions: 6.3mm Diameter x 32mm Length
• Breaking Capacity: Typically 10kA (Dependent on voltage and specific test standards. Consult Eaton Bussmann datasheets for precise values.)
• Compliance: UL Listed, CSA Certified (Common for Bussmann fuses; verify current certifications on Eaton Bussmann datasheets).

Key Features:

• Time-Delay Characteristics: Engineered to tolerate momentary overcurrents, making it ideal for protecting equipment that experiences inrush currents, such as motor start-ups, transformer energization, or capacitor charging circuits, without unnecessary interruption.
• High Interrupting Rating (HIR): The robust ceramic construction provides a high interrupting rating, ensuring the fuse can safely and effectively clear substantial fault currents, mitigating potential damage to both the fuse and the protected system.
• Superior Thermal Stability: The ceramic body offers excellent thermal endurance, enabling the fuse to perform reliably in environments with elevated temperatures and ensuring consistent protection during fault conditions.
• Industry-Standard Form Factor: Its widely recognized 6.3x32mm dimension ensures broad compatibility and straightforward integration into existing fuse holders and equipment, streamlining both initial design and subsequent maintenance.

Applications:

Eaton Bussmann MDA-2-R fuses are essential components for safeguarding circuits in numerous demanding applications, including:

• Industrial Control Systems
• Power Supply Units
• Commercial and Home Appliances
• HVAC Equipment
• Lighting Ballasts
• Audio-Visual Equipment
• Test and Measurement Instrumentation
