Eaton 741F0038 HF6 Current Transformer, 2500/1 A, 30VA Class 0.5, 0.72kV
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview

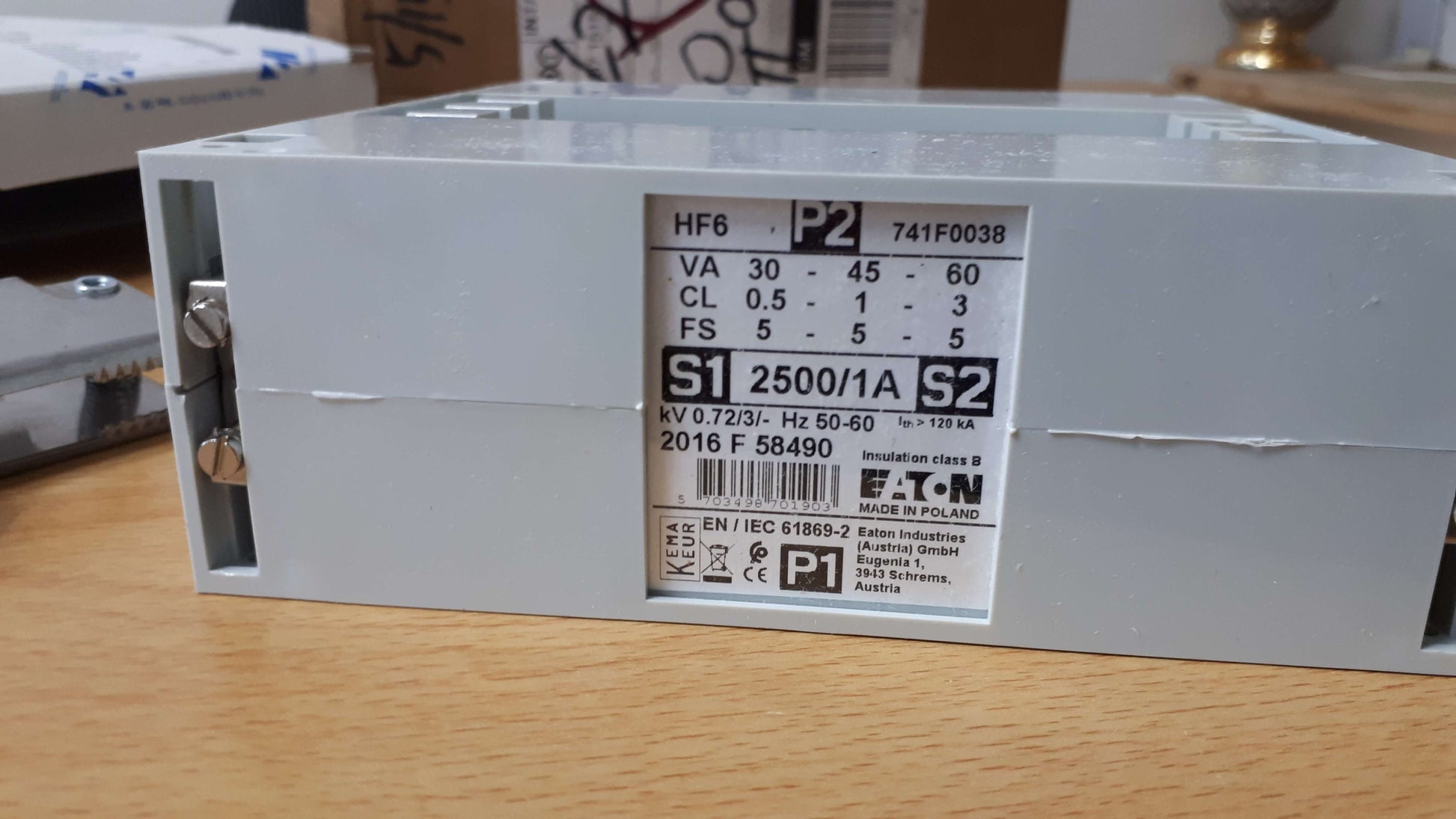

The Eaton 741F0038 is a precision-engineered Model HF6 low-voltage current transformer designed for industrial energy monitoring and protection applications. Manufactured in Poland under strict Eaton Industries (Austria) GmbH quality standards, this unit features a through-primary design with a transformation ratio of 2500/1 A. It offers versatile accuracy classifications, supporting Class 0.5 metering at 30VA burdens, making it suitable for high-accuracy billing and measurement circuits. The device complies with IEC/EN 61869-2 standards and features a robust insulation Class B housing capable of withstanding operating voltages up to 0.72 kV.
Availability Note: The standard lead time for this specific configuration is approximately 8-11 weeks.
Technical Specifications
| Brand | Eaton |
| Order Code / MPN | 741F0038 |
| Model Series | HF6 |
| Transformation Ratio | 2500/1 A |
| Primary Current (Ip) | 2500 A |
| Secondary Current (Is) | 1 A |
| Accuracy Class 1 (Burden) | Class 0.5 (30 VA) |
| Accuracy Class 2 (Burden) | Class 1 (45 VA) |
| Accuracy Class 3 (Burden) | Class 3 (60 VA) |
| Instrument Security Factor (FS) | FS 5 |
| Frequency | 50-60 Hz |
| Maximum Operating Voltage (Um) | 0.72 kV |
| Isolation Test Voltage | 3 kV |
| Rated Thermal Short-time Current (Ith) | > 120 kA |
| Insulation Class | B |
| Standard Compliance | EN / IEC 61869-2 |
| Manufacturing Standard | KEMA EUR |
| Country of Origin | Poland |
