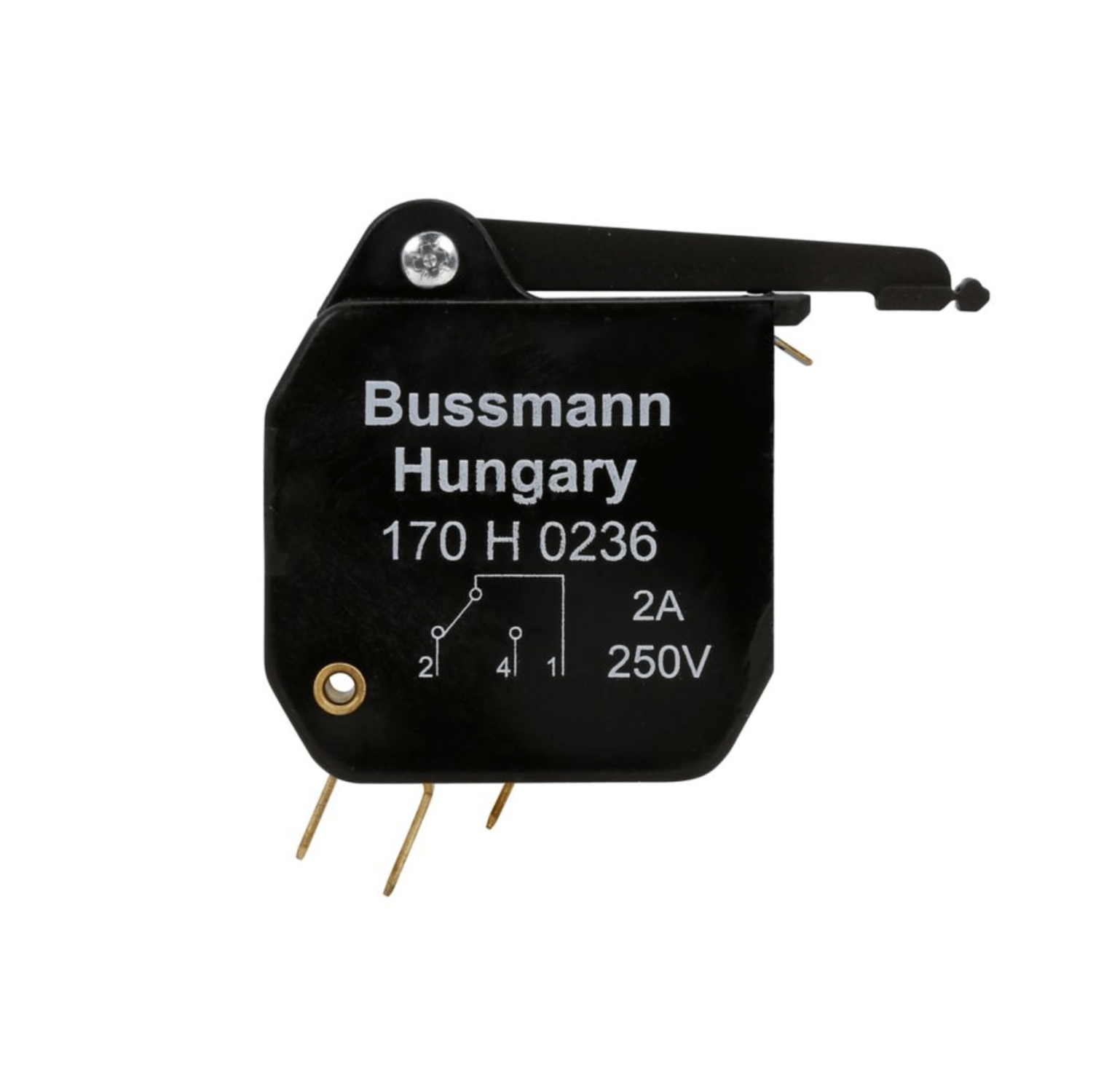

Eaton Bussmann 170H0236 High Speed Microswitch for Type T Fuse Indicators, 2A 250VAC - Pack of 5

Product Overview The Eaton Bussmann 170H0236 is a high-precision microswitch accessory designed for remote status indication of high-speed semiconductor fuses. This switch is specifically engineered to interface with fuses featuring Type T indicators, allowing for immediate electrical signaling to monitoring systems or control circuits when a fuse opens. Its versatile mounting design makes it compatible with a wide range of DIN and French-style fuse standards used in global power electronics applications.

Key Features

• Extensive Compatibility: Optimized for a broad range of fuse sizes including DIN 43653 Size 000, and DIN 43620 sizes 000, 00, 1, 2, and 3. It also supports French-style Type T fuses from size 1* to 3.
• Standardized Electrical Interface: Features 6.3 mm x 0.8 mm lug terminals, ensuring a secure and standardized connection for industrial control wiring.
• High Voltage Rating: Engineered to provide safe isolation in high-voltage environments, rated for systems up to 690V (IEC) and 700V (UL).
• Precision Signaling: Provides reliable activation triggered by the fuse’s mechanical indicator, facilitating rapid fault detection and reducing system downtime.
• Dual Certification: Compliant with CE, GoST-R, and RoHS standards, meeting stringent international safety and environmental regulations.

Technical Specifications

• Manufacturer: Eaton Bussmann
• Catalog Number: 170H0236
• Product Type: High Speed Fuse Microswitch
• Amperage Rating: 2A
• Voltage Rating: 250V AC (Standard operation)
• Maximum System Voltage: 700V (UL) / 690V (IEC)
• Connection Type: 6.3 mm x 0.8 mm Lug Terminals
• Dimensions: 57 mm (L) x 47 mm (H) x 20 mm (W)
• Indicator Type Compatibility: Type T (Mechanical)
• Standards: CE Marked, GoST-R, RoHS Compliant
• Package Quantity: 5 Pieces
