Eaton 170M1369 Fuse, 100A 690V, gR Type, High Speed, Bolted, Size 00, Pack of 10

The Eaton Bussmann Series 170M1369 high-speed square-body fuse provides exceptional overcurrent protection for industrial power distribution and motor control applications. Designed to IEC and UL standards, it combines rapid fault interruption with high breaking capacity in a compact, reliable package.

Key Features
• Amperage Rating: 160 A
• Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)
• Clearing I²t: 16 000 A²s at 660 V
• Pre-arc I²t: 2 300 A²s
• Breaking Capacity: 200 kA
• Watt Losses: 32 W per fuse
• Body Dimensions: 105 mm L × 46 mm H × 300 mm W
• Weight: 135.9 g
• High-speed (gR/aR) characteristic for fast fault clearing
• Square-body ceramic construction for durability

Certifications & Compliance
• IEC Rated
• UL Recognized
• CE Marked
• RoHS Compliant

Applications
• Medium-voltage power distribution
• Motor starter and drive protection
• Transformers and switchgear
• Renewable energy inverters
• Industrial control panels

Benefits
• Minimizes equipment damage and downtime with rapid fault interruption
• Accommodates high fault currents up to 200 kA
• Ensures global safety compliance in diverse installations
• Simplifies inventory with a standardized square-body form factor

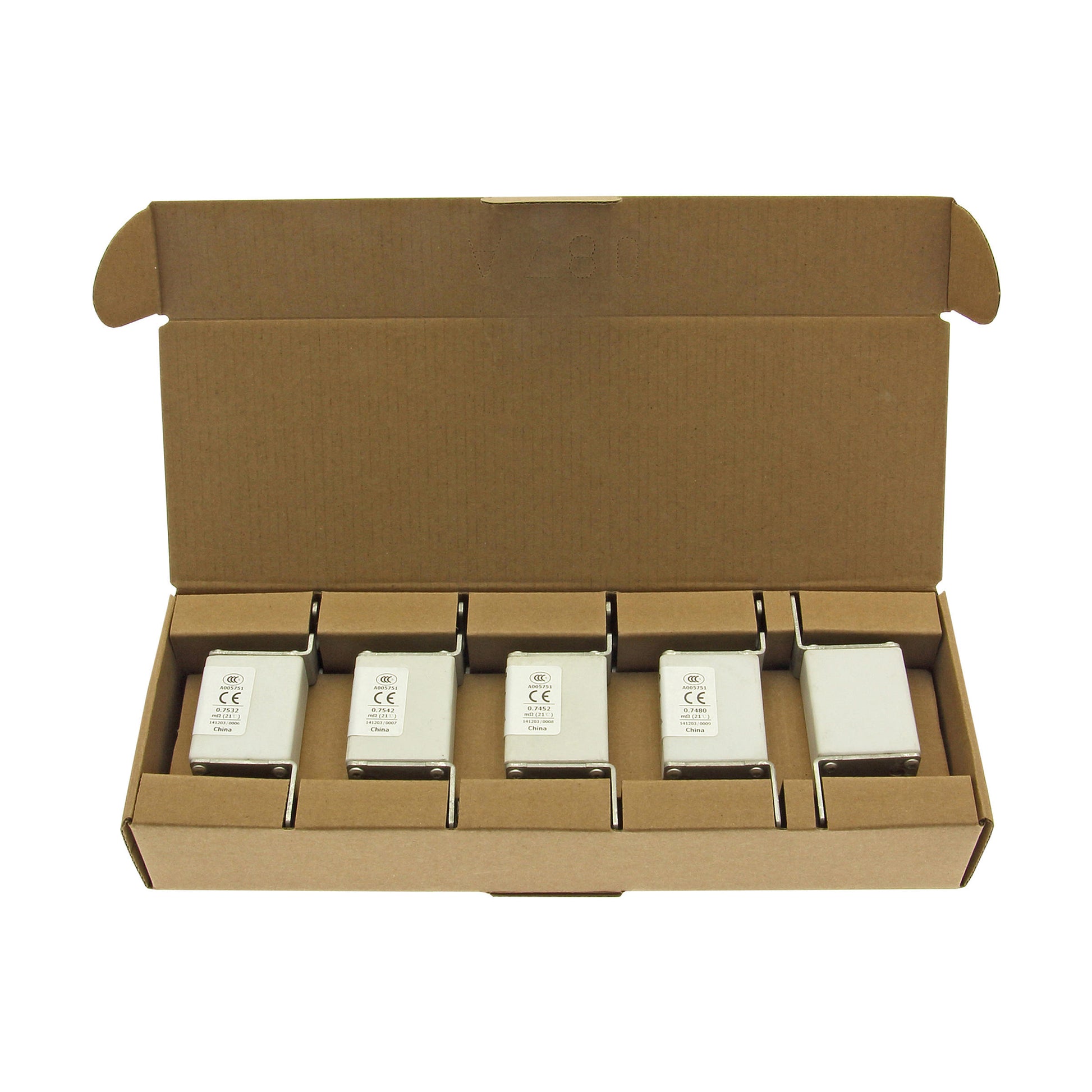

Pack Contents
• 10 × Eaton Bussmann Series 170M1369 High-Speed Square-Body Fuses (160 A, 690 V AC, Class aR)

For robust, high-performance protection in demanding electrical systems, trust the Eaton Bussmann Series 170M1369 fuse.
