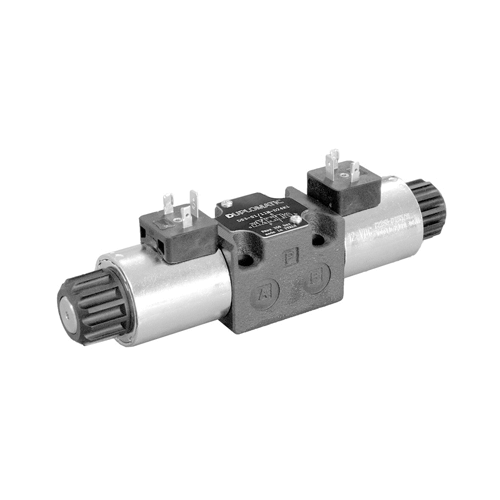

Duplomatic DS3-S5/11N-D24K1 Solenoid Operated Directional Control Valve, ISO 4401-03, 24V DC

$280.00 USD
$280.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview

The Duplomatic DS3-S5/11N-D24K1 is a solenoid operated directional control valve designed for subplate mounting in accordance with ISO 4401-03 standards. It offers excellent flow control precision, utilizing DC solenoids and a robust design to ensure minimal pressure losses.

Key Features

  • Solenoid actuated, direct operated
  • 3 or 4-port design availability
  • Variety of spool types
  • Suitable for DC or AC solenoids
  • Rated for high-pressure up to 350 bar
  • Handles a maximum flow rate of 100 l/min
  • Salt spray resistant for 600 hours with zinc-nickel coating
  • UL certified coils for use with 24V DC

Specifications

Mounting Interface ISO 4401-03
Maximum Operating Pressure 350 bar (P, A, B ports), 210 bar (T port)
Maximum Flow Rate 100 l/min
Fluid Temperature Range -20 to +80°C
Coil Voltage 24V DC
Protection Class IP65
