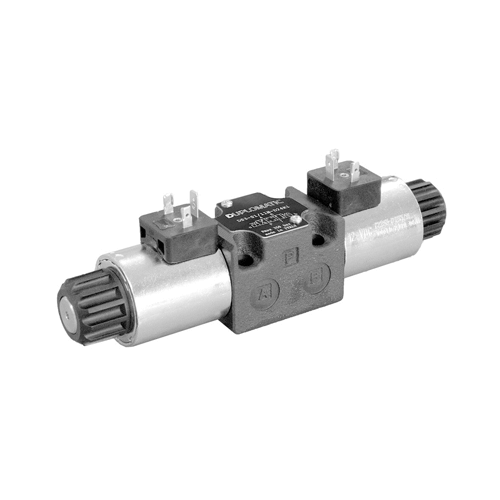

Duplomatic DS3-S2/11N-D24K1 Solenoid Operated Directional Control Valve, ISO 4401-03, 24V DC

$200.00 USD
$200.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview

The Duplomatic DS3-S2/11N-D24K1 is a solenoid operated directional control valve designed for subplate mounting according to ISO 4401-03 standards. This high-performance valve is suitable for applications requiring precise flow control, available with DC solenoids, and features a robust valve body to minimize pressure drops.

Key Features

  • Solenoid actuated, direct operated
  • Available in 3 or 4-port design
  • Wide range of spool types
  • Compatible with DC or AC solenoids
  • High-pressure rating up to 350 bar
  • Maximum flow rate of 100 l/min
  • Salt spray resistance up to 600 hours with zinc-nickel coating
  • UL certified coils for 24V DC applications

Specifications

Mounting Interface ISO 4401-03
Maximum Operating Pressure 350 bar (P, A, B ports), 210 bar (T port)
Maximum Flow Rate 100 l/min
Fluid Temperature Range -20 to +80°C
Coil Voltage 24V DC
Protection Class IP65
