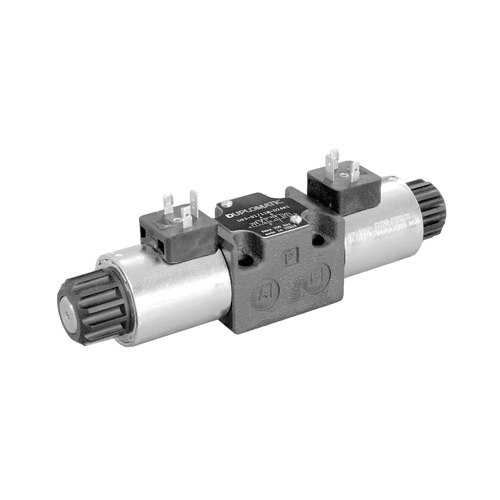

Duplomatic DS3-S10/11N-D24K1 Solenoid Operated Directional Control Valve, ISO 4401-03, 24V DC

$280.00 USD
$280.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview

The Duplomatic DS3-S10/11N-D24K1 is a solenoid operated directional control valve for subplate mounting, adhering to ISO 4401-03 standards. It ensures reliable flow control with a robust design and efficient DC solenoids, minimizing pressure drops in hydraulic circuits.

Key Features

  • Solenoid actuated, direct operated
  • Available in 3 or 4-port layouts
  • Diverse spool type options
  • Compatible with DC and AC solenoids
  • Sustains high pressures up to 350 bar
  • Manages a flow rate of up to 100 l/min
  • 600-hour zinc-nickel coating for salt spray resistance
  • UL certified coils for applications using 24V DC

Specifications

Mounting Interface ISO 4401-03
Maximum Operating Pressure 350 bar (P, A, B ports), 210 bar (T port)
Maximum Flow Rate 100 l/min
Fluid Temperature Range -20 to +80°C
Coil Voltage 24V DC
Protection Class IP65
