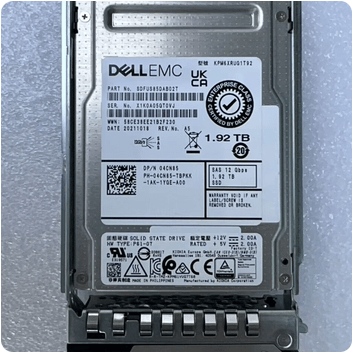

Dell 1.92TB SAS 12Gb/s 2.5-inch Read Intensive TLC Enterprise SSD (DP/N: 4CN85) - Kioxia PM6 Series (KPM6XRUG1T92)

The Dell 1.92TB SAS 12Gb/s 2.5-inch Read Intensive TLC Enterprise SSD (DP/N: 4CN85) is a robust and high-performing solid-state drive specifically designed and validated for Dell PowerEdge servers and Dell storage systems. This enterprise-grade SSD, manufactured by Kioxia (part of their PM6 series, KPM6XRUG1T92 model), leverages advanced BiCS FLASH™ 3D TLC NAND technology and a dual-port SAS 12Gb/s interface to deliver exceptional reliability, power efficiency, and consistent performance for read-intensive workloads. It is an ideal solution for applications such as web servers, streaming media, large-scale data analytics, and virtualization environments where high read access and a balanced cost-to-performance ratio are critical.

Manufacturer Information:

• Manufacturer: Dell Inc. (This is a Dell-branded and validated part.)
• Original Drive Manufacturer: Kioxia Corporation (The underlying drive technology and model KPM6XRUG1T92 are from Kioxia).

Key Features:

• Dell Certified Part: This SSD is a genuine Dell-branded and validated component with Dell Part Number 4CN85. It is certified for full compatibility, optimal performance, and reliability within Dell PowerEdge servers and Dell storage infrastructure. Using Dell-certified parts ensures access to Dell's full technical support and warranty.
• Read Intensive Workload Optimized: Engineered for demanding read-intensive enterprise applications (typically rated for 1 Drive Write Per Day - DWPD or less). This makes it highly efficient and cost-effective for scenarios requiring frequent data retrieval.
• High Enterprise Capacity: Offers a robust 1.92TB of solid-state storage, providing significant capacity for datasets, applications, and operating systems in high-density rack environments.
• Dual-Port SAS 12Gb/s Interface: Features a high-speed, resilient dual-port SAS (Serial Attached SCSI) 12Gb/s interface, ensuring high throughput, stable connectivity, and critical path redundancy for high-availability enterprise environments.
• Kioxia BiCS FLASH™ 3D TLC NAND: Built upon Kioxia's advanced BiCS FLASH™ 3D TLC (Triple-Level Cell) NAND technology, which delivers an excellent balance of capacity density, performance, and endurance required for enterprise-class SSDs.
• 2.5-inch Small Form Factor (SFF): Adheres to the widely adopted 2.5-inch form factor, enabling seamless integration and hot-swappable installation into compatible Dell PowerEdge server and storage array drive bays.
• Enterprise-Reliability and Data Integrity: Incorporates comprehensive enterprise protection features including power loss protection (PLP) to safeguard data during unexpected power outages, end-to-end data path protection, and advanced error correction mechanisms (ECC) to maintain data integrity and prolong drive life.
• Consistent Performance: Delivers stable and predictable performance, characterized by low latency and high IOPS, which is crucial for responsive application and system operation in data centers.

Technical Specifications:

• Manufacturer: Dell Inc.
• Dell Part Number (DP/N): 4CN85
• Underlying Original Model (Kioxia): KPM6XRUG1T92 (Kioxia PM6 Series)
• Capacity: 1.92 TB
• Interface: Dual-Port SAS
• SAS Speed: 12 Gb/s
• Form Factor: 2.5-inch (SFF)
• NAND Flash Type: TLC (Triple-Level Cell) BiCS FLASH™ 3D NAND
• Workload Type: Read Intensive (RI)
• Features: Power Loss Protection (PLP), End-to-End Data Path Protection, Advanced ECC, Hot-Swappable.
• Compatibility: Designed for Dell PowerEdge servers and storage systems supporting 2.5-inch SAS 12Gb/s SSDs (Please verify specific compatibility with your Dell system model).
