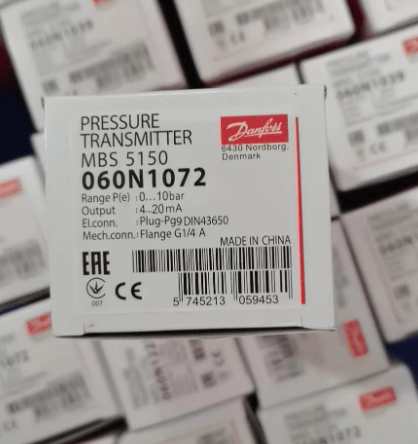

Danfoss MBS5150 060N1072 Pressure transmitter

Manufacturer: Danfoss Product Type: Pressure Transmitter Series: MBS 5150 Part Number: 060N1072

Specifications:

• Pressure Range (Pe): 0 to 10 bar (0 to 145 psi)
• Output Signal: 4 - 20 mA
• Supply Voltage: 10 - 32 V DC
• Accuracy: ±0.3 % FS
• Electrical Connection: M12 x 1, 4-pin, Male
• Pressure Connection: G 1/2 A DIN 3852-E
• Compensated Temperature Range: -10 °C to 80 °C (14 °F to 176 °F)
• Enclosure Rating: IP67
• Approvals: ATEX, BV, CCC, CCS, CE, cULus, DNV, EAC, GL, KR, LR, NKK, PRS, RINA, RMRS, RoHS China, TYSK, UKCA
