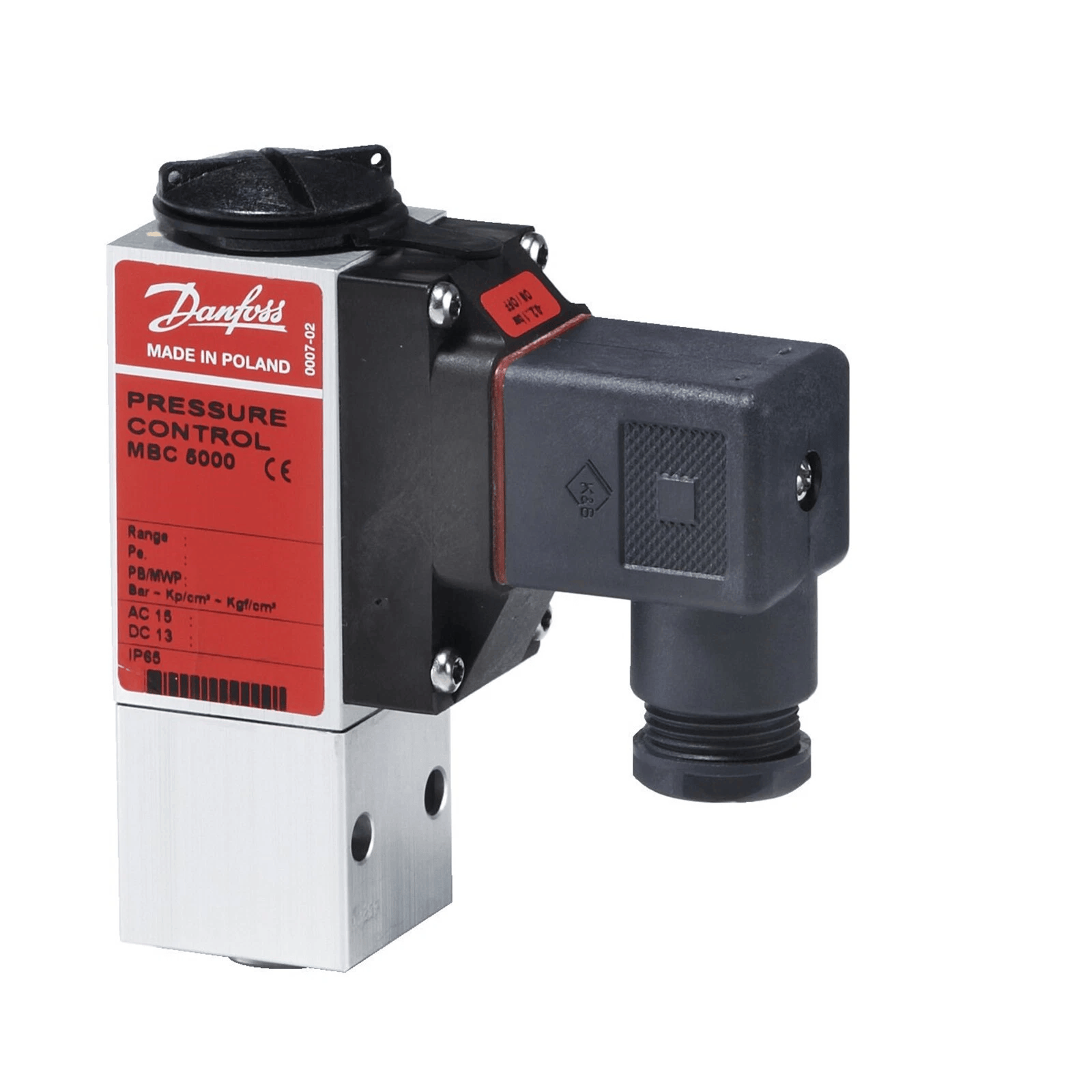

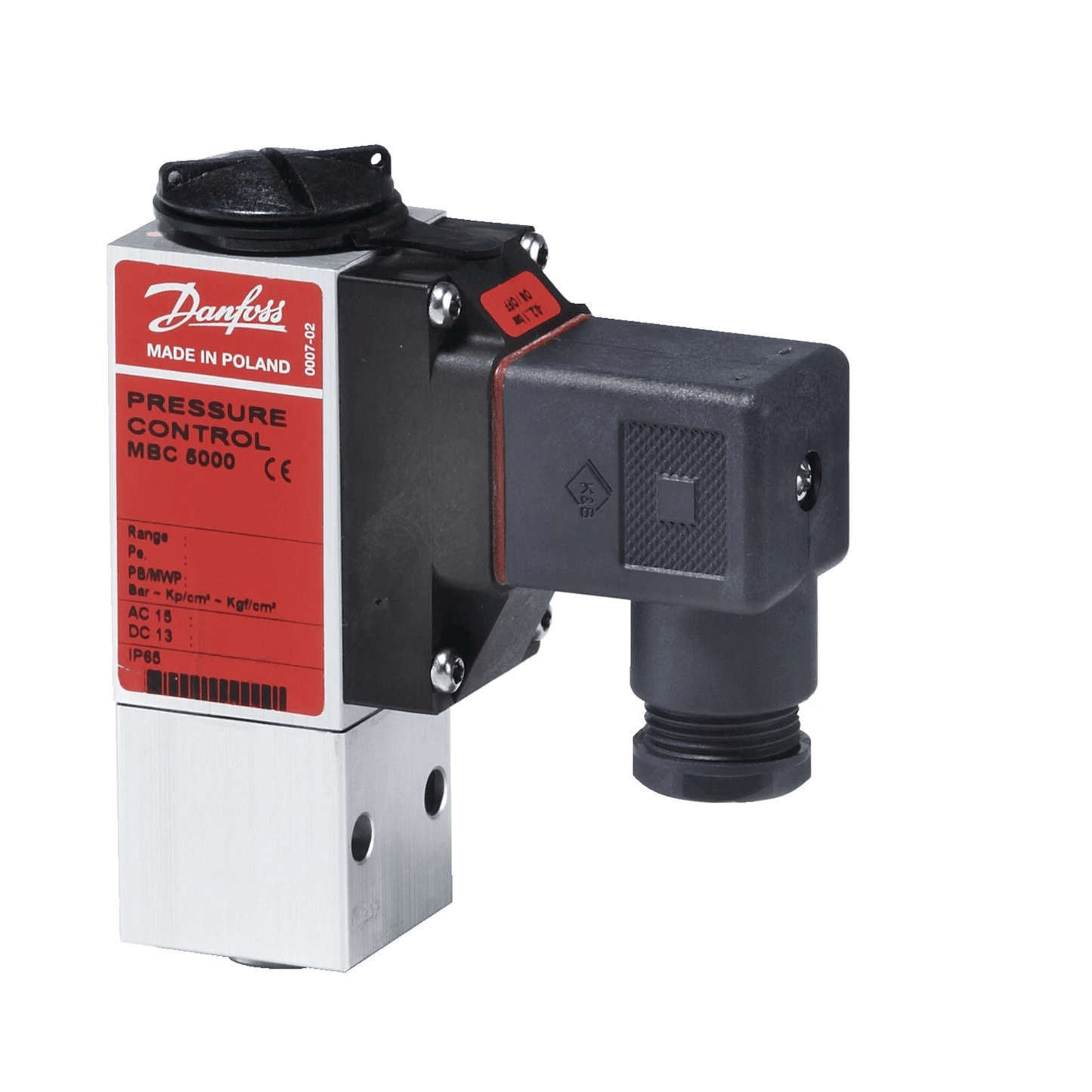

Danfoss MBC5100 061B2012 Pressure Switch

Manufacturer: Danfoss Product Type: Pressure Switch Series: MBC 5100 Part Number: 061B110866

Specifications:

• Pressure Range (Pe): -0.2 to 10.0 bar (-2.90 to 145.00 psig)
• Adjustable Differential: 0.7 to 4.0 bar (10.0 to 58.0 psi)
• Max. Working Pressure (MWP): 35 bar
• Pulse Load Capacity: 250 bar
• Contact Function: SPDT (Single Pole Double Throw), Gold Plated
• Contact Rating:
  • AC1: 10 A, 250 V
  • AC15: 3 A, 250 V
  • AC3: 4 A, 250 V
  • DC13: 12 W, 220 V
  • LR (Locked Rotor): 28 A, 250 V
• Electrical Connection: DIN-plug, Pg 13.5, Female (EN 175301-803-A)
• Pressure Connection: G 1/4 Female (ISO 228-1)
• Pressure Connection Hex: 27 mm
• Enclosure Rating: IP65
• Ambient Temperature Range: -40 °C to 85 °C (-40 °F to 185 °F)
• Reset Function: Automatic
• Pressure Sensing Element: Bellows
• Approvals: ATEX, BV, CCC, CCS, CE, DNV, EAC, GL, LR, NKK, RINA, RMRS, RoHS China, TYSK, UKCA
