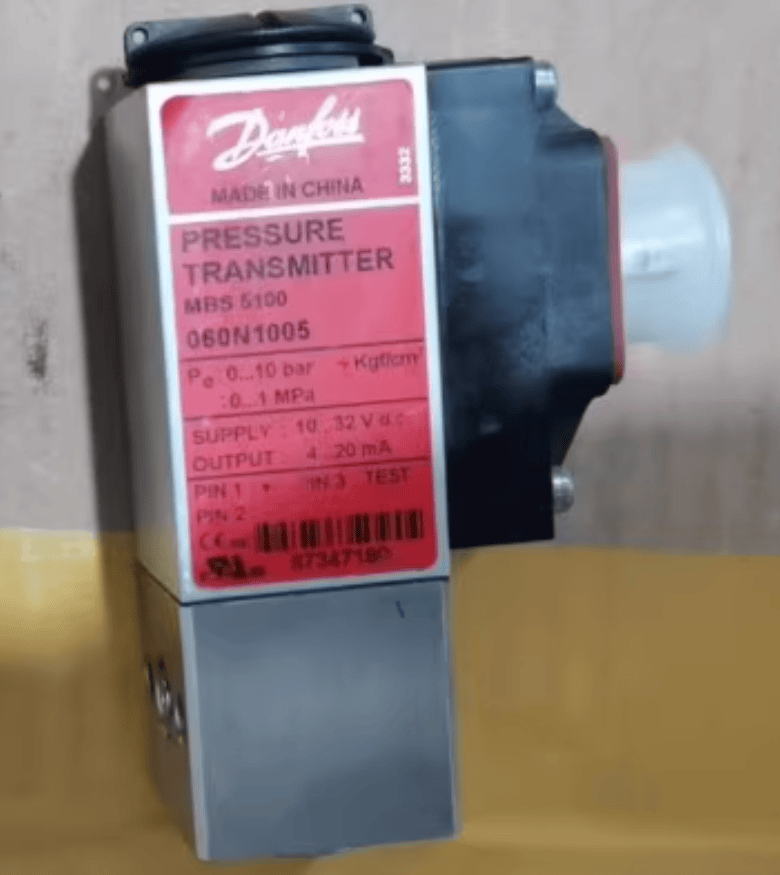

Danfoss 060N1005 Pressure transmitter

Manufacturer: Danfoss Product Type: Pressure Transmitter Model: MBS 5100 Part Number: 060N1005

Specifications:

• Pressure Range (Pe): 0 - 10 bar / 0 - 1 MPa
• Supply Voltage: 10 - 32 V DC
• Output Signal: 4 - 20 mA
• Electrical Connection Pins:
  • Pin 1: + (Supply)
  • Pin 2: - (Supply)
  • Pin 3: Test
