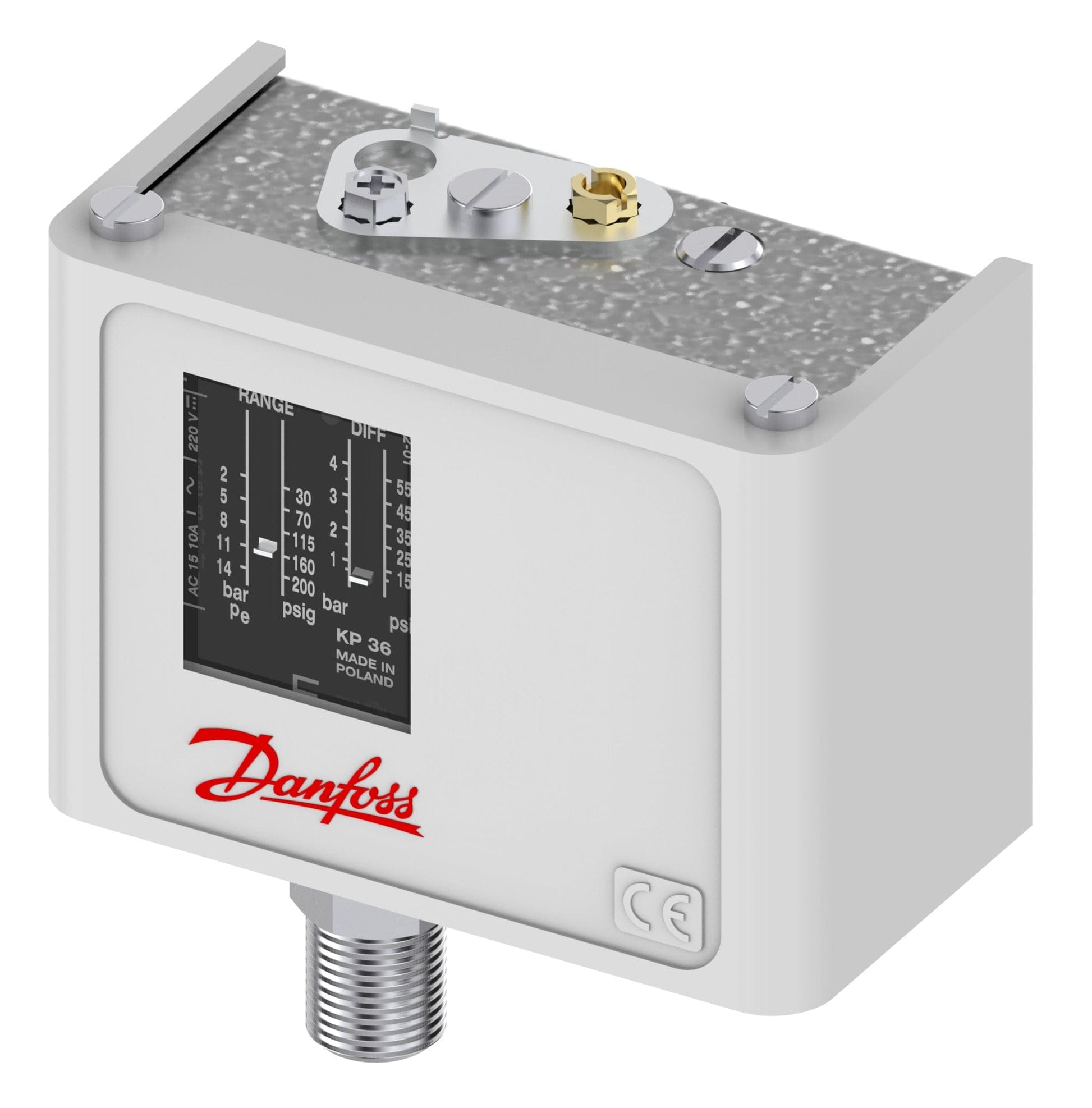

DANFOSS 060-216066 KP36 Pressure switch

ressure Switch KP36 - Product Specifications

Product Name: Pressure Switch KP36
Product Group: Switches and thermostats
Type: KP36

Pressure Sensing Element: Bellows
Pressure Connection Type: G
Pressure Connection Size: 1/2
Pressure Connection Standard: ISO 228-1
Pressure Male/Female: Male

Regulation Range:

• 1 - 10.5 bar (14.5 - 150 psig)

Max. Working Pressure:

• 17 bar (245 psig)
• Max. Test Pressure: 22 bar (319 psig)

Differential:

• 0.7 bar (10 psi)

Contact Function: SPDT
Contact Rating:

• 120Vac, 16FLA, 96LRA, 3APilotDuty
• 16 A resistive, single phase
• 240 V AC, 8 FLA, 48 LRA
• 240V dc, 12W pilot duty (0.05 A)
• 8 A resistive, single phase

Electrical Connection: Rubber cable gland
Electrical Connection Size: 6-14 mm

EN 60947 Electrical Properties:

• Insulation: 400V
• Pollution degree: 3
• Rated impulse voltage: 4 kV
• Short circuit protection, fuse: 16A

EN 60947 Wiring Properties:

• Flex, ferrules: 0.5-1.5 mm²
• Flex, no ferrules: 0.7-2.5 mm²
• Solid/stranded: 0.75-2.5 mm²

Enclosure Rating:

• IP30
• Nema 1

Ambient Temperature Range:

• -40 °C to 65 °C (-40 °F to 149 °F)
• 80 °C/176 °F for max 120 min

Reset Function: Manual Max

Approvals & Compliance: CCC, CE, CMIM, EAC, LLC CDC EURO-TYSK, LVD, PZH, RINA, RMRS, RoHS China, UKCA, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, CE evaluated, China RoHS compliance, EU RoHS compliance, UK RoHS compliance, REACH (Lead (CAS no. 7439-92-1)), WEEE compliant, SCIP dossier no. b1323c86-8856-44cc-b1c6-6849abe37ee4, UL approval file name: E31024 MH27572, UL evaluated.

EEE Category: 5 small equipment (any external dimension 50 cm)

Serviceable: No
Quantity per packing format: 36 pc
Packing format: Multi pack
Net weight: 0.331 kg
Gross weight: 0.364 kg
Volume: 0.57 L
EAN: 5702428365352

Product Accessories: Switches accessories
