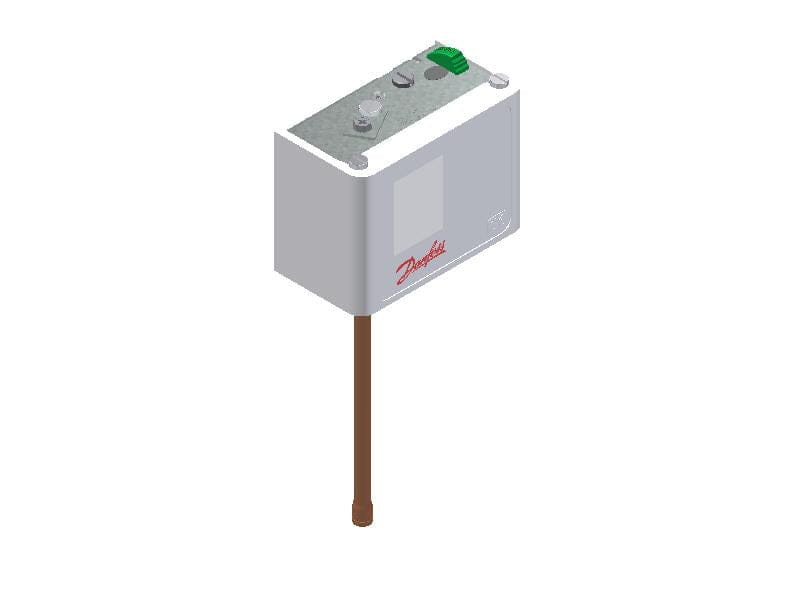

DANFOSS 060-118066 Pressure switch, KP5

Pressure Switch KP5 - Technical Specifications

General:

• Product Name: Pressure Switch
• Product Type: KP5
• Product Group: Switches and thermostats
• Contact Function: SPDT
• Reset Function: Manual Max
• Pressure Sensing Element: Bellows
• Pressure Connection Type: Solder, ODF
• Pressure Connection Size: 1/4
• Pressure Connection Standard: EN 1254-1
• Pressure Male/Female: Female
• Enclosure Rating IP: IP30
• Enclosure Rating Nema: 1
• Serviceable: No

Pressure Specifications:

• Max. Working Pressure: 35 bar (510 psig)
• Max. Test Pressure: 35 bar (510 psig)
• Differential Pressure: 3 bar (43 psi)
• Regulation Range (bar): 8 bar - 32 bar
• Regulation Range (psig): 116 psig - 464 psig

Electrical Specifications:

• Electrical Connection: Rubber cable gland
• Electrical Connection Size: 6-14 mm
• Contact Rating: AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V
• EN 60947 Electrical Properties: Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit protection, fuse: 16A
• EN 60947 Wiring Properties: Flex, ferrules: 0.5-1.5 mm²; Flex, no ferrules: 0.7-2.5 mm²; Solid/stranded: 0.75-2.5 mm²

Environmental Specifications:

• Ambient Temperature Range (°C): -40 °C to 65 °C
• Ambient Temperature Range (°F): -40 °F to 149 °F
• Ambient Temperature Note: 80 °C/176 °F for max 120 min

Fluid Specifications:

• Lubricants Compatibility: Oil-free applications
• Refrigerants: R113, R1234yf, R1234yz, R1234ze(E), R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A, R513A, R515B
• Oil-free Refrigerants: R134a, R513A, R515B
• Application Note: Not applicable for liquid line

Physical Specifications:

• Net Weight: 0.327 kg
• Gross Weight: 0.374 kg
• Volume: 1.281 L

Certifications and Compliance:

• Approvals: BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PZH, RINA, RMRS, RoHS China, UKCA, c UL us UL873, CS C22.2
• CE Evaluated: Yes
• China RoHS Compliance: Yes
• EU RoHS Compliance: Yes
• EU RoHS Exemption Clause: No
• UK RoHS Compliance: Yes
• UL Approved Refrigerants: R113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B
• UL Evaluated: Yes
• UL Approval File Name: E31024
• PED Category: (Not specified)
• EEE Category: 5 small equipment (any external dimension ≤ 50 cm)
• In Scope of WEEE: Yes
• In Scope of WEEE and Contain Batteries: No
• Other RoHS Documentation: (Not specified)
• EAN: 5702428011853
• Packing Format: Multi pack
• Quantity per Packing Format: 32 pc
• SCIP Dossier No.: b1323c86-8856-44cc-b1c6-6849abe37ee4
• SCIP Dossier Product Name: KP/KPI pressure switch
• REACH Candidate List Substances: Lead (CAS no. 7439-92-1)
