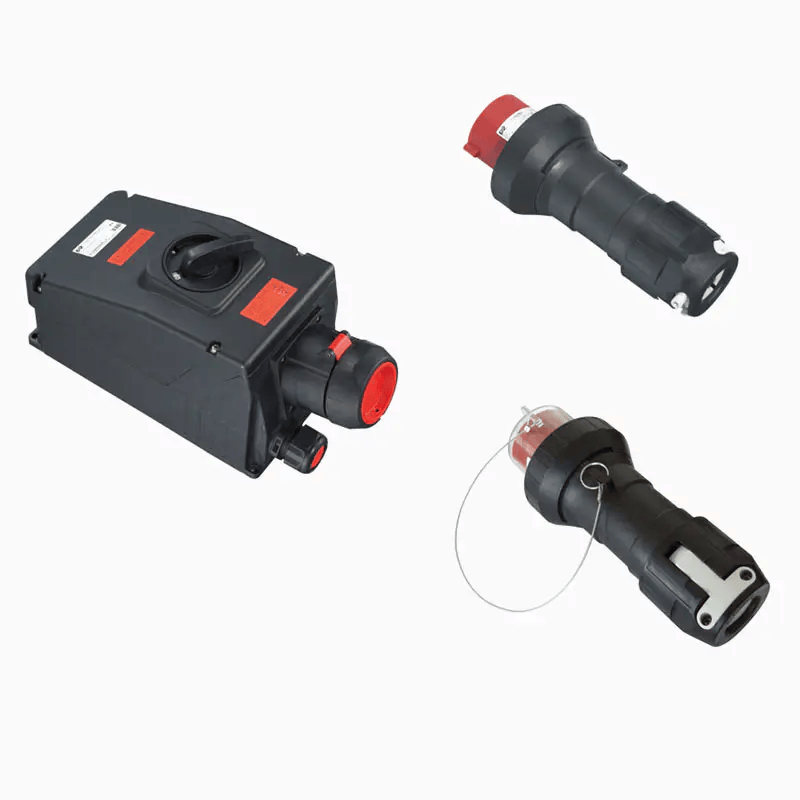

CZ CZ0253 Explosion-proof Cable-Mounted Socket, All-Plastic, 10-150A, Ex de IIC T6 Gb, IP65

CZ0253 Explosion-proof Cable-Mounted Socket, All-Plastic, 10-150A

The Chuangzheng CZ0253 series explosion-proof cable-mounted socket is an innovative and highly secure solution for flexible power connections in hazardous industrial environments. Constructed entirely from high-strength engineering plastic through a single injection molding process, this device offers exceptional corrosion resistance, superior impact strength, and a significantly lighter weight compared to traditional metallic counterparts. It holds an advanced Ex de IIC T6 Gb explosion protection rating, certifying its safe and reliable operation in areas with highly flammable gases of explosion group IIC, as well as combustible dust zones (Zone 21 and Zone 22). Available in a broad spectrum of current ratings from 10A to 150A and various pole configurations, the CZ0253 is designed to provide versatile and uncompromised safety for portable equipment and extension applications where robust, explosion-proof, and flexible power access is required.

Key Features:

• Advanced Explosion Protection: Boasts an "Ex de IIC T6 Gb" rating, ensuring safe deployment in Zone 1 and Zone 2 gas hazardous areas (including highly flammable IIC gases like acetylene and hydrogen), and Zone 21 and Zone 22 dust hazardous areas. The "de" protection signifies a flameproof enclosure coupled with increased safety terminals.
• All-Plastic, High-Strength Construction: Manufactured from premium engineering plastic, delivering excellent chemical and corrosion resistance, high mechanical durability, and a lightweight profile that simplifies installation and handling in challenging industrial settings.
• High IP65 Environmental Protection: With an Ingress Protection rating of IP65, the socket is fully protected against dust ingress and resistant to low-pressure water jets from any direction, guaranteeing robust performance in wet, dusty, and harsh conditions.
• Wide Current & Pole Configurations: Available in a diverse range of current options (10A, 15A, 25A, 32A, 63A, 100A, 150A) and pole arrangements (2-pole + Earth (2P+E), 3-pole + Earth (3P+E), and 3-pole + Neutral + Earth (3P+N+E)) to suit various power requirements.
• Integrated Safety Interlock: Incorporates a critical safety interlock mechanism that prevents connection or disconnection under live conditions, thereby eliminating the risk of electrical arcing in potentially explosive atmospheres.
• Temperature Class T6: Certified to Temperature Class T6, guaranteeing that the maximum surface temperature will not exceed 85℃ during operation, which is critical for environments containing gases with very low ignition temperatures.
• Flexible Cable Entry: Designed with G-thread cable entries featuring specific applicable cable diameter ranges to ensure secure, flameproof, and dust-tight connections for various cable sizes.

Detailed Technical Specifications:

Electrical Characteristics:

• Manufacturer: Chuangzheng Explosion-proof Electric Co., Ltd.

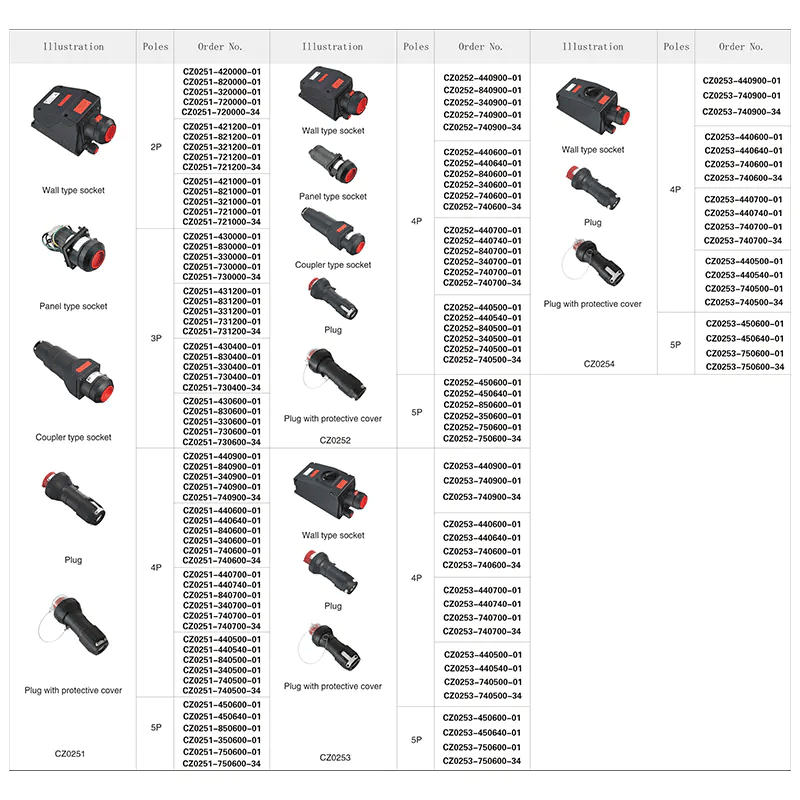

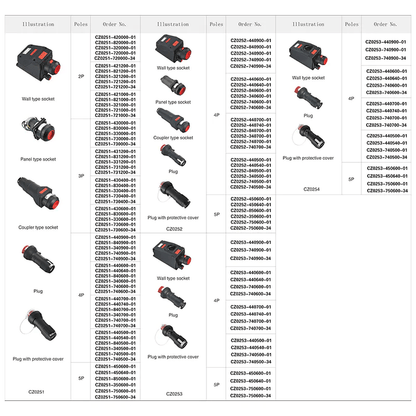

• Series: CZ0253
• Product Type: Explosion-proof Cable-Mounted Socket (or Mobile Socket)
• Rated Current Options: 10A, 15A, 25A, 32A, 63A, 100A, 150A
• Rated Operating Voltage: AC 380V, DC 48V
• Pole Configurations:
  • 2P+E (Two Poles + Earth)
  • 3P+E (Three Poles + Earth)
  • 3P+N+E (Three Poles + Neutral + Earth)

Explosion Protection & Environmental:

• Explosion Protection Mark: Ex de IIC T6 Gb
• Applicable Hazardous Zones:
  • Zone 1 (Gases)
  • Zone 2 (Gases)
  • Zone 21 (Dusts)
  • Zone 22 (Dusts)
• Gas Group Compatibility: IIA, IIB, IIC
• Temperature Class: T6 (Max Surface Temperature < 85℃)
• Ingress Protection (IP) Rating: IP65
• Ambient Temperature Range: -20℃ to +40℃

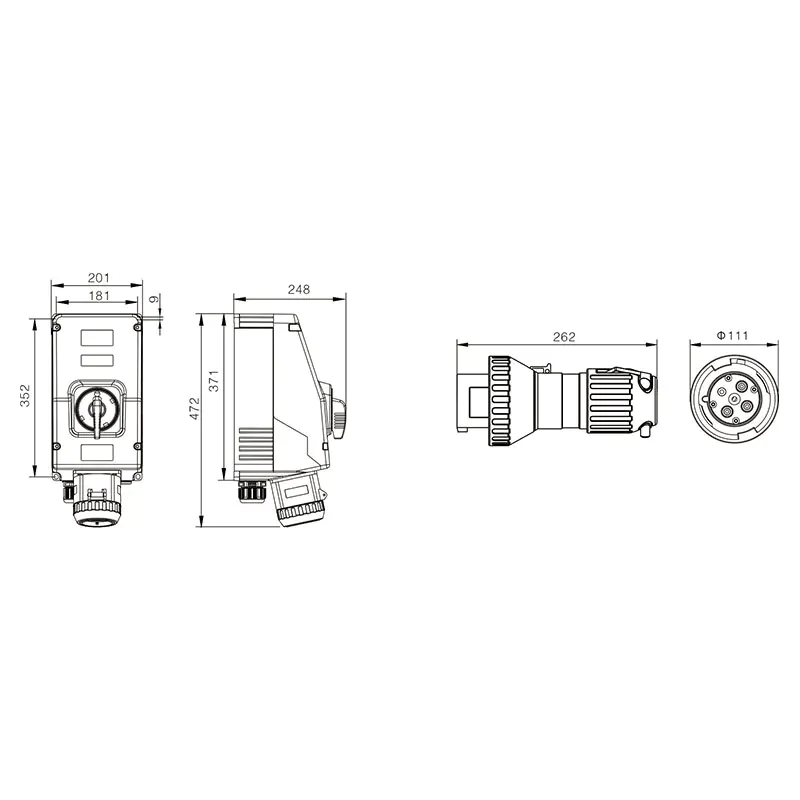

Mechanical Specifications:

• Housing Material: High-strength Engineering Plastic
• Cable Entry Thread & Applicable Cable Diameter:
  • G3/4" (for current ratings 10A-63A), for cable outer diameter Φ9mm to Φ14mm
  • G1" (for current ratings 100A-150A), for cable outer diameter Φ13mm to Φ22mm
• Internal Wiring Terminals: Screw terminals
• Mounting Type: Cable-mounted (designed for inline cable connection, portable use)
• Compatibility: Designed to mate with compatible explosion-proof plugs (e.g., from the CZ0251 series).

Standards & Compliance:

• Explosion Protection Standards: Conforms to relevant national standards (e.g., GB3836 series) and international standards (e.g., IEC 60079 series) for explosion-proof electrical equipment.
• Certifications: CCC (China Compulsory Certification) and other applicable certifications for explosion protection.

Applications:

The Chuangzheng CZ0253 Explosion-proof Cable-Mounted Socket is an indispensable solution for extending or providing flexible power connections for electrical equipment in a wide array of hazardous industrial settings, including:

• Petrochemical and Chemical Plants: Enabling safe power connections for portable lighting, tools, and temporary equipment in areas with flammable gases and vapors.
• Oil and Gas Industries: Ideal for connecting test equipment, mobile heating units, and communication devices on drilling rigs, refineries, and storage terminals.
• Pharmaceutical and Fine Chemical Manufacturing: Providing secure and flexible electrical access in production and laboratory areas where explosive atmospheres may exist.
• Painting and Coating Facilities: Supplying power to portable spray guns, ventilation fans, and drying equipment in hazardous zones.
• Grain Silos and Food Processing: Used in environments where combustible dusts pose a risk of explosion, offering safe connections for cleaning or processing equipment.
• Construction Sites in Hazardous Areas: Facilitating temporary power connections for various machinery and equipment.
• Any hazardous workshop or laboratory: Requiring reliable, explosion-proof, and easily movable power access points for critical operations.
