CZ CZ0252 Explosion-proof Power Socket, All-Plastic, 10-150A, Ex de IIC T6 Gb, IP65

CZ0251 Explosion-proof Plug and Socket Device, All-Plastic, 10-150A

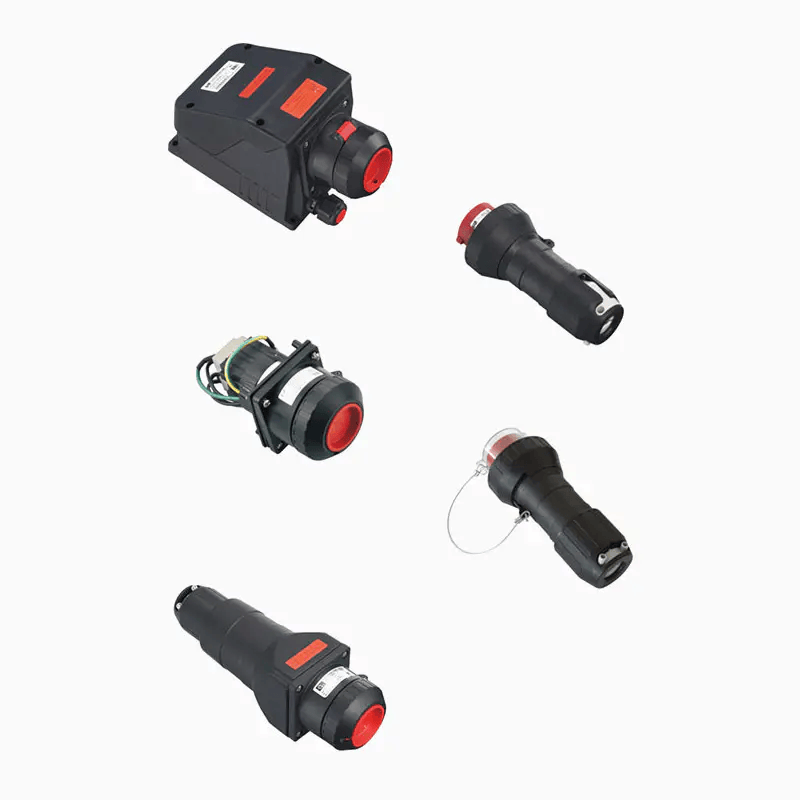

The Chuangzheng CZ0251 series represents a state-of-the-art all-plastic explosion-proof plug and socket device, meticulously designed for safe and reliable power connection in hazardous environments. Engineered with a robust engineering plastic enclosure, this device offers superior corrosion resistance, high impact strength, and a lightweight alternative to traditional metal enclosures. Certified with an impressive Ex de IIC T6 Gb explosion protection rating, it ensures utmost safety in areas where highly flammable gases of explosion group IIC are present, as well as in zones with combustible dust. Available in a wide range of current ratings from 10A to 150A and various pole configurations, the CZ0251 series provides a versatile solution for diverse industrial applications demanding uncompromised safety and operational continuity.

Key Features:

• Superior Explosion Protection: Features an "Ex de IIC T6 Gb" rating, certifying its safe operation in Zone 1 and Zone 2 gas hazardous areas (including IIC gases like acetylene and hydrogen), and Zone 21 and Zone 22 dust hazardous areas. The "de" indicates flameproof enclosure and increased safety terminals.
• All-Plastic Construction: Crafted from high-strength engineering plastic, providing excellent chemical and corrosion resistance, mechanical durability, and a light overall weight, ideal for challenging industrial environments.
• High IP65 Environmental Protection: The robust enclosure provides an Ingress Protection rating of IP65, ensuring complete protection against dust ingress and resistance to multi-directional low-pressure water jets, making it suitable for wet and dusty conditions.

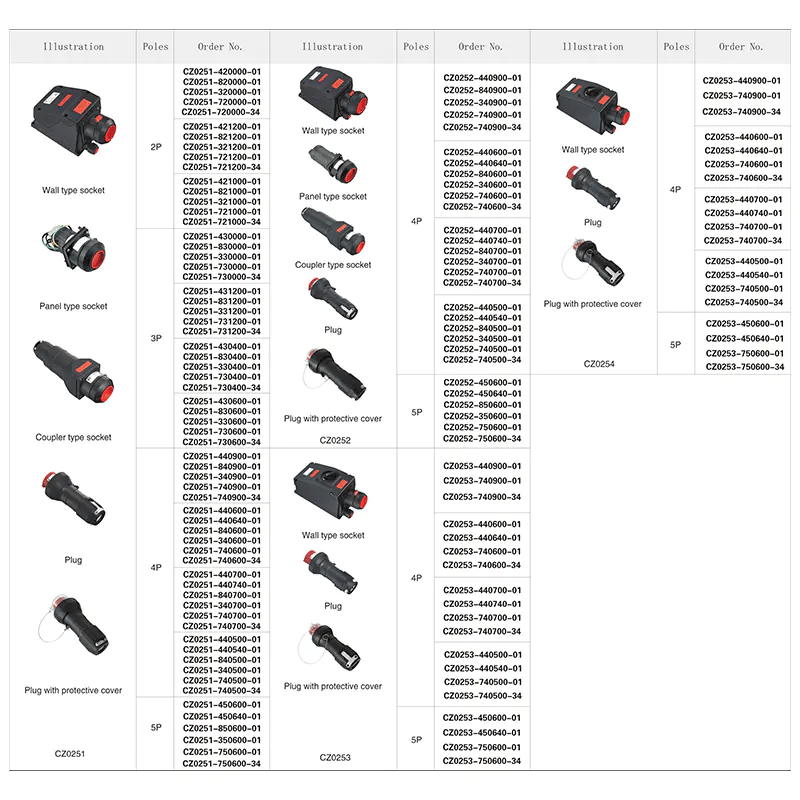

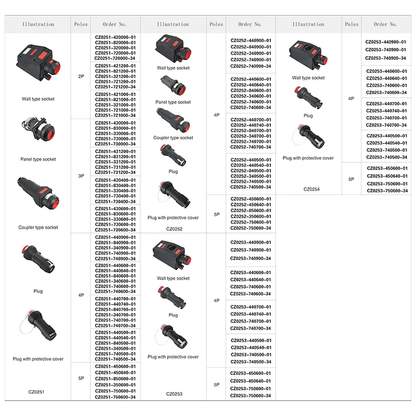

• Wide Current & Pole Configurations: Available in multiple current ratings including 10A, 15A, 25A, 32A, 63A, 100A, and 150A, alongside various pole arrangements such as 2-pole with Earth (2P+E), 3-pole with Earth (3P+E), and 3-pole with Neutral and Earth (3P+N+E).
• Safety Interlocking Function: Incorporates a mechanical interlocking mechanism that prevents live plugging or unplugging, significantly enhancing operational safety and preventing electrical arcing in hazardous atmospheres.
• Temperature Class T6: Guarantees that the maximum surface temperature during operation will not exceed 85℃, making it safe for environments with very low ignition temperature gases.
• Robust Cable Entry Design: Designed with standard G-thread cable entries to ensure secure and explosion-proof cable connections.

Detailed Technical Specifications:

Electrical Characteristics:

• Manufacturer: Chuangzheng Explosion-proof Electric Co., Ltd.
• Series: CZ0251
• Product Type: Explosion-proof Plug and Socket Device
• Rated Current Options: 10A, 15A, 25A, 32A, 63A, 100A, 150A
• Rated Operating Voltage: Max 380V AC (typically 220V/380V AC)
• Pole Configurations:
  • 2P+E (Two Poles + Earth)
  • 3P+E (Three Poles + Earth)
  • 3P+N+E (Three Poles + Neutral + Earth)
• Breaking Capacity (for switching capability): N/A (primarily a connection device, not a switch for breaking current directly)

Explosion Protection & Environmental:

• Explosion Protection Mark: Ex de IIC T6 Gb
• Applicable Hazardous Zones:
  • Zone 1 (Gases)
  • Zone 2 (Gases)
  • Zone 21 (Dusts)
  • Zone 22 (Dusts)
• Gas Group Compatibility: IIA, IIB, IIC
• Temperature Class: T6 (Max Surface Temperature < 85℃)
• Ingress Protection (IP) Rating: IP65
• Ambient Temperature Range: -20℃ to +40℃

Mechanical Specifications:

• Housing Material: High-strength Engineering Plastic
• Cable Entry Thread:
  • G3/4" (for 10A, 15A, 25A, 32A, 63A models)
  • G1" (for 100A, 150A models)
• Internal Wiring Terminals: Screw terminals

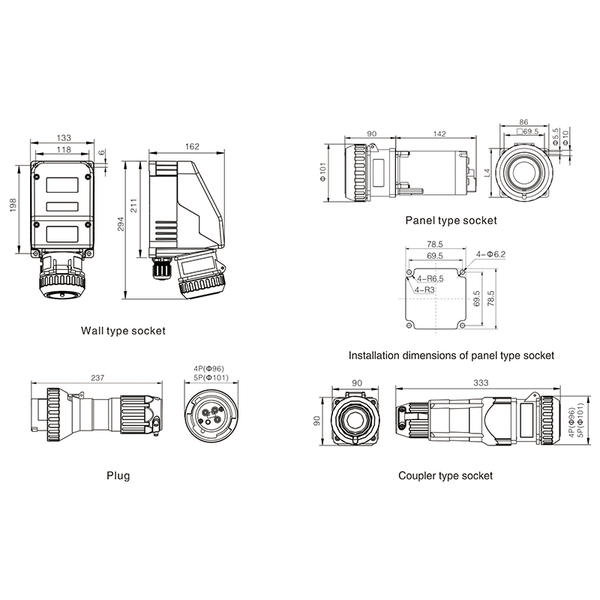

• Mounting Type: Panel/Surface Mountable (socket), Cable Mountable (plug)

Standards & Compliance:

• Explosion Protection Standards: Conforms to relevant national standards (e.g., GB3836 series) and international standards (e.g., IEC 60079 series) for explosion-proof electrical equipment.
• Certifications: CCC (China Compulsory Certification) and other applicable certifications for explosion protection.

Applications:

The Chuangzheng CZ0251 Explosion-proof Plug and Socket Device is an indispensable component for power supply and equipment connection in a wide variety of hazardous industrial settings, including:

• Chemical and Petrochemical Processing Plants: Securely connecting portable equipment, lighting, and machinery in areas with flammable gases and vapors.
• Oil and Gas Industries: Powering tools, heating elements, and communication devices on drilling rigs, refineries, and storage facilities.
• Pharmaceutical and Fine Chemical Manufacturing: Providing safe electrical connections in cleanrooms and production areas where explosive atmospheres may exist.
• Painting and Coating Facilities: Ensuring safe power distribution to spray booths and drying ovens.
• Mining Operations: (Specific to appropriate gas/dust groups if applicable, usually Ex d I for coal mines).
• Grain Silos and Food Processing Plants: (For dust protection where combustible dusts are present).
• Hazardous Workshops and Laboratories: Any area requiring reliable, explosion-proof, and easily connectable power circuits.
