Eaton Bussmann LPJ-200SP Low-Peak Fuse, 200A 600V AC, Class J Dual-Element Time-Delay - Pack of 3

Low-Peak™ LPJ Series Class J Dual-Element Time-Delay Fuse - Eaton Bussmann Series

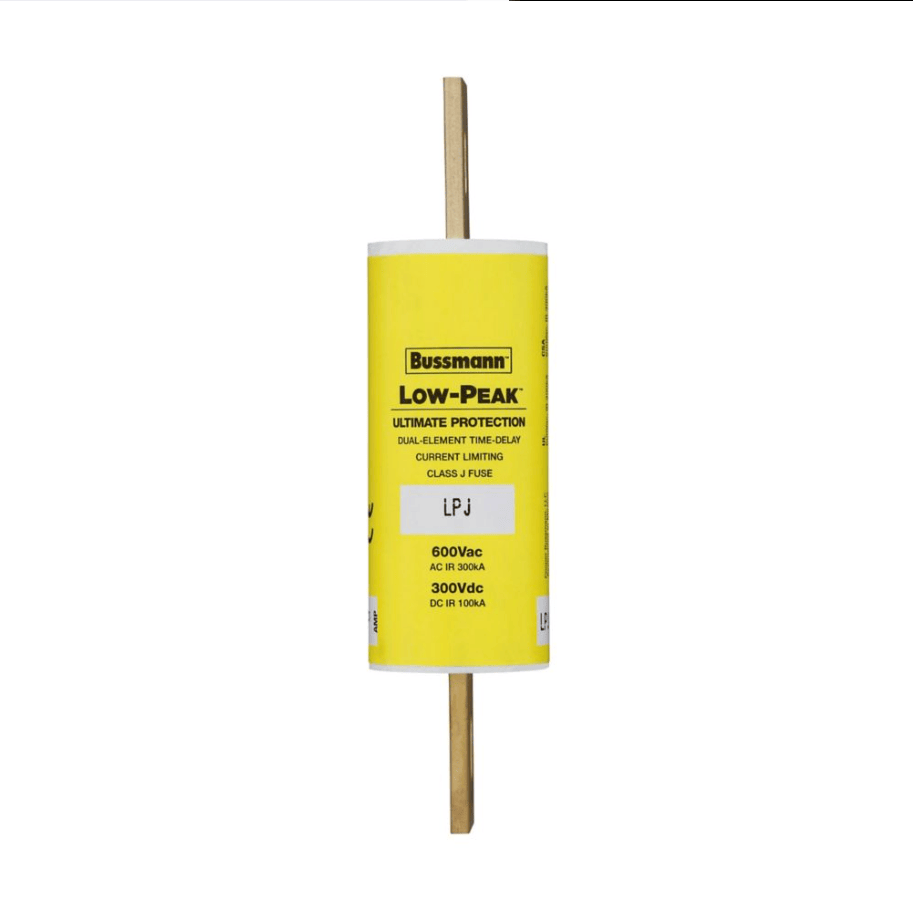

The Eaton Bussmann LPJ-200SP is an industry-standard Class J current-limiting fuse, engineered to deliver superior protection for critical electrical circuits. As part of the Low-Peak™ series, this dual-element fuse provides a minimum 10-second time-delay at 500% of its rated current. This allows the fuse to handle temporary power surges and motor starting currents without nuisance tripping, ensuring higher system uptime in demanding industrial environments.

With an extremely high interrupting rating of 300kA at 600Vac, the LPJ-200SP offers heavy-duty protection against the most severe fault currents. Its current-limiting design significantly reduces the peak let-through energy and magnetic forces that can damage downstream components. The compact Class J physical dimensions enable designers to utilize smaller disconnects and enclosures, effectively reducing the overall footprint of electrical assemblies.

Technical Specifications:

• Manufacturer: Eaton
• Brand: Bussmann series
• Catalog Number: LPJ-200SP
• Fuse Class: Class J
• Amperage Rating: 200 A
• Voltage Rating: 600 Vac, 300 Vdc
• Interrupting Rating: 300kA Vac RMS Sym., 100kA Vdc
• Time-Delay: 10 seconds (minimum) at 500% of rated current
• Standards/Compliance: UL Listed (Class J), CSA Certified, CE, RoHS Compliant

Key Features:

• Excellent Current Limitation: Minimizes I²t and peak let-through current to protect sensitive motor controllers and distribution panels.
• Robust Dual-Element Design: Provides high-speed short-circuit protection and reliable time-delay for overload conditions.
• System Versatility: Facilitates easy selective coordination with a 2:1 ratio for simplified electrical system engineering.
• Compact Form Factor: Saves significant space in panel designs compared to Class R or Class K fuses of the same rating.

Application: The LPJ-200SP is recommended for branch circuit protection, motor control centers (MCCs), and specialized machinery. It is an ideal solution for safeguarding motors, transformers, and electrical distribution systems that require high interrupting capacity and precision time-delay characteristics.
