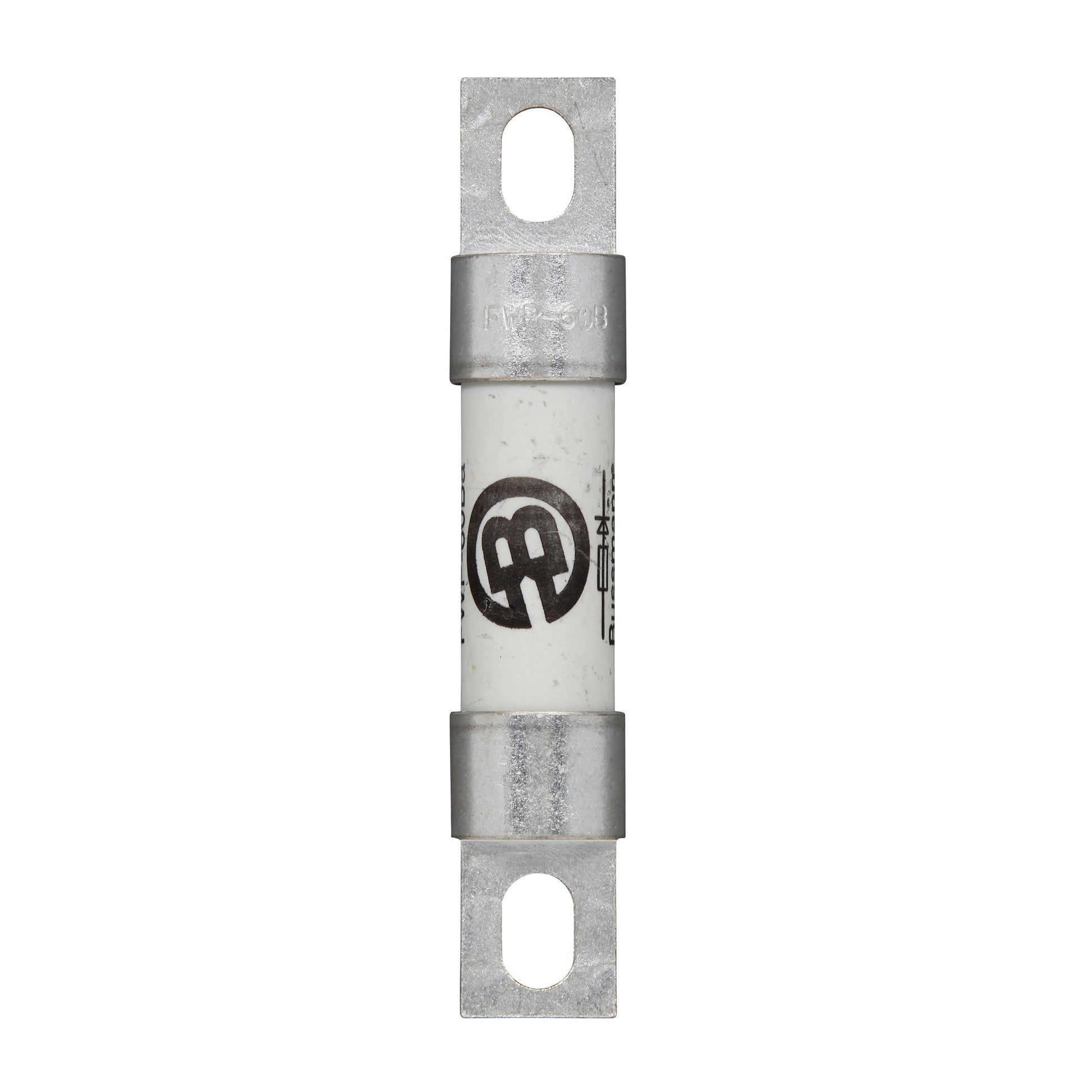

Bussmann FWP-50B Fuses (10 Pieces)

Eaton Bussmann series FWP-50B14FA High-Speed Fuse

Specifications:

• Catalog Number: FWP-50B14FA
• Fuse Type: High-Speed Semiconductor Fuse
• Class: Class aR
• Current Rating: 50 A
• Voltage Rating: 500 Vac, 500 Vdc
• Interrupting Rating:
  • 200 kAIC at 500 Vac
  • 50 kAIC at 500 Vdc
• Clearing I²t (at 500 Vac): 440 A²s
• Watt Loss (at rated current): 7.5 W
• Dimensions: 14 x 51 mm
• Body Material: Ceramic
• Termination: Ferrule end x Ferrule end
• Mounting: For use with fuse clips or blocks suitable for 14x51mm fuses
• Compliance: UL Recognized (File E76491), CSA Certified (File LR29862), CE Marked, RoHS Compliant
