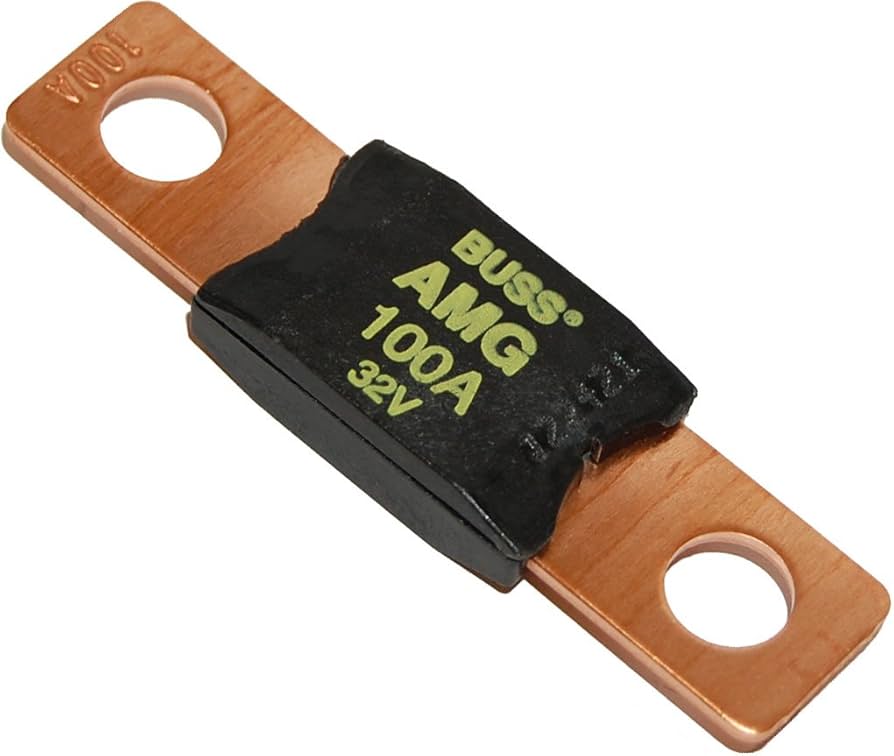

Eaton Bussmann AMG-100 High Current Fuse, 100A 32VDC, Bolted Blade Stud-Mount - Pack of 10

Product Overview The Eaton Bussmann AMG-100 is a heavy-duty bolt-in automotive fuse designed for high-current circuit protection. As part of the AMG series, this 100-Ampere fuse is engineered for primary power distribution and protects against high-current overloads and short circuits in 32V DC systems. Its specialized bolted blade design provides a vibration-resistant, low-resistance electrical connection, making it ideal for harsh environments found in commercial vehicles, marine applications, and off-road equipment.

Key Features

• High-Capacity Protection: 100A continuous current rating designed for alternators, battery feeds, and high-load power accessories.
• Bolted Connection: Secure mounting via M8 studs ensures superior mechanical stability and eliminates the risk of terminal arcing often associated with high-current plug-in connections.
• Reliable Performance: Constructed with a high-strength thermoplastic body and high-conductivity terminals for minimized voltage drop and long-term durability.
• Color-Coded Identification: Features a black housing for easy visual identification of the 100A rating within the AMG series.
• Standardized Geometry: 68.4mm overall length with industry-standard mounting holes, compatible with HMEG fuse holders and standard distribution blocks.

Technical Specifications

• Manufacturer: Eaton Bussmann
• Series: AMG
• Current Rating: 100A
• Voltage Rating: 32V DC
• Mounting Style: Bolt-In / Stud-Mount
• Hole Spacing: 2.00 in (50.8 mm) centers
• Body Material: High-temperature Thermoplastic
• Dimensions: 68.4 mm (L) x 15.4 mm (W) x 9 mm (H)
• Regulatory Compliance: RoHS Compliant
• Package Quantity: 10 Pieces
