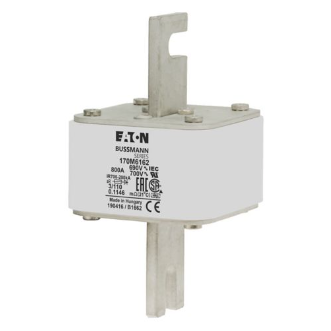

Eaton Bussmann 170M6162 High Speed Fuse, 800A 690V AC, Size 3 Square Body, DIN 43653 Bolted Tag - Pack of 3

The Eaton Bussmann 170M6162 is an industrial-grade high-speed square body fuse engineered for the protection of power semiconductors. Optimized for low I²t let-through and reduced arc voltage, this fuse provides superior protection for sensitive electronic components. It conforms to DIN 43653 standards, specifically designed with center-to-center bolted tags for secure installation in power distribution systems. This model features a single visual indicator for immediate status monitoring.

Technical Specifications:

• Manufacturer: Eaton
• Brand: Bussmann series
• Catalog Number: 170M6162
• Model Code: FUSE 800A 690V 3/110 AR UC
• Body Style: Square Body, Size 3
• Mounting Type: Bolted Tag (DIN 43653 /110mm centers)
• Indicator Type: Single Indicator (Visual)
• Rated Current: 800 A
• Rated Voltage: 690V AC (IEC)
• Utilization Category: aR (Partial range semiconductor protection)
• Breaking Capacity: 200 kA RMS Sym.

Physical Characteristics:

• Dimensions: 168 mm (L) x 95 mm (W) x 76 mm (H)
• Net Weight: 986 g
• Certifications: IEC Rated, UL Recognized, CE Marked, RoHS Compliant

Application: Targeted for heavy industrial applications including rectifiers, inverters, large motor drives, and DC common bus systems where high-speed response to short-circuit events is mandatory.
