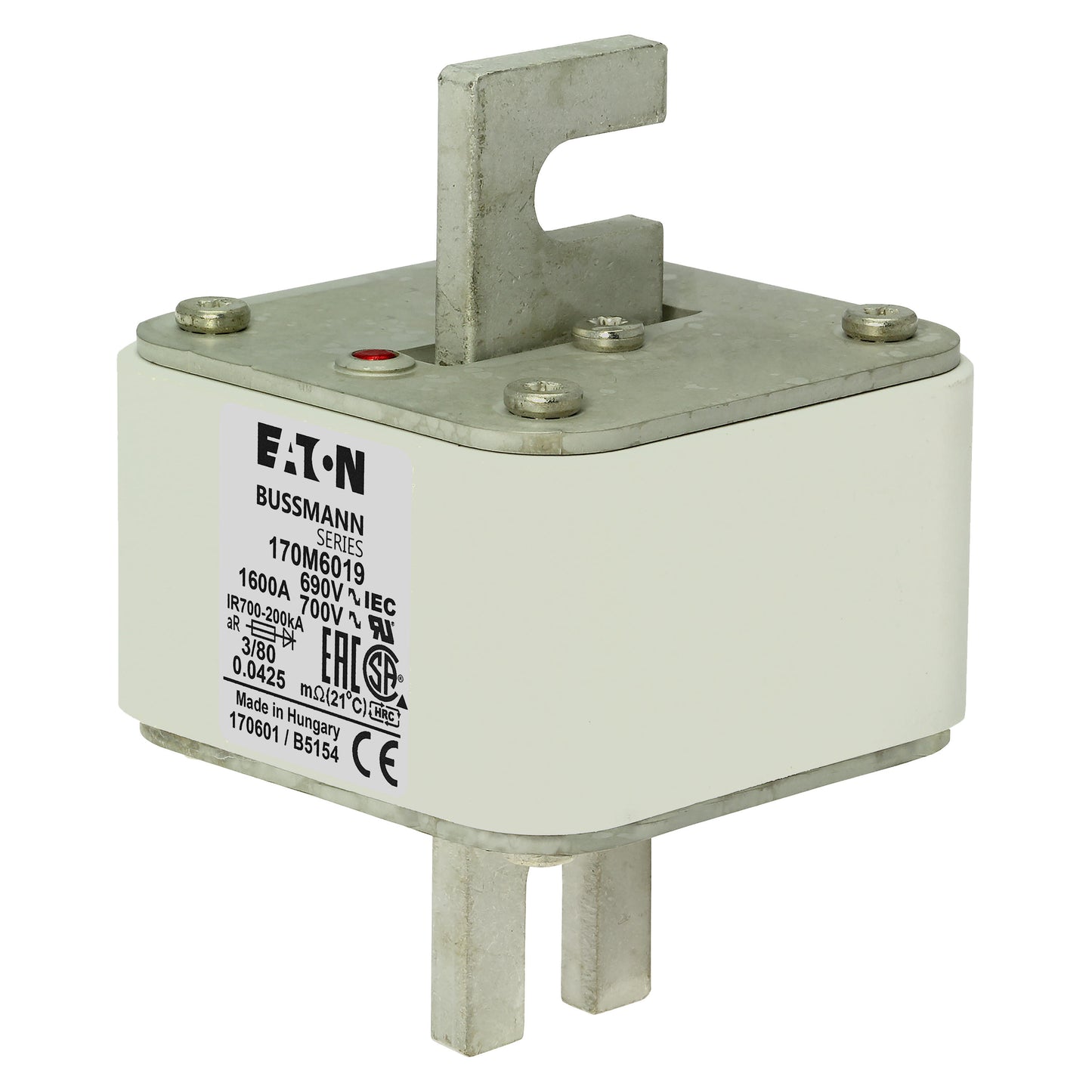

Eaton Bussmann 170M6019 High Speed Fuse, 1600A 690V AC, Size 3 Square Body, DIN 43653 Bolted Tag - Pack of 3

The Eaton Bussmann 170M6019 is a high-performance square body fuse designed specifically for the protection of power semiconductors. Engineered for high-demand industrial environments, this fuse features excellent DC performance and a low arc voltage, ensuring minimal I²t let-through values. It is compliant with DIN 43653 standards and features a visual indicator for rapid status identification.

Technical Specifications:

• Manufacturer: Eaton
• Brand: Bussmann series
• Catalog Number: 170M6019
• Model Code: FUSE 1600A 690V 3/80 AR UC
• Body Style: Square Body, Size 3
• Mounting Type: Bolted Tag (DIN 43653 /80mm centers)
• Indicator Type: Top Fuse Status Indicator / Visual Indicator
• Rated Current: 1600 A
• Rated Voltage: 690V AC (IEC) / 700V AC (UL)
• Utilization Category: aR (Partial range semiconductor protection)
• Breaking Capacity: 200 kA RMS Sym.

Physical Characteristics:

• Dimensions: 168 mm (L) x 95 mm (W) x 76 mm (H)
• Net Weight: 938 g
• Certifications: IEC Rated, UL Recognized, CE Marked, RoHS Compliant

Application: Optimized for the protection of rectifiers, inverters, DC drives, UPS systems, and other sensitive power electronics where high speed clearing is critical.
