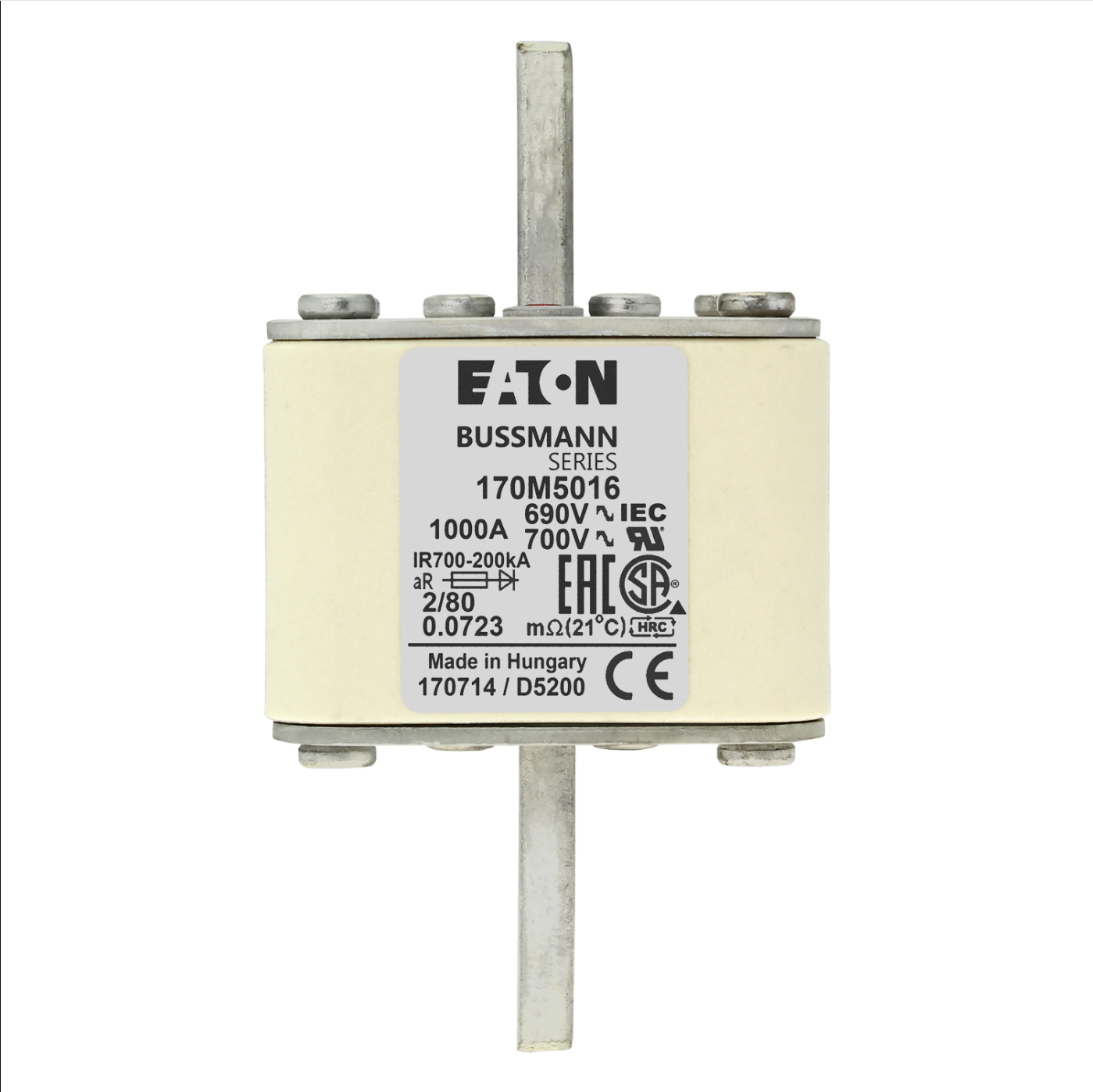

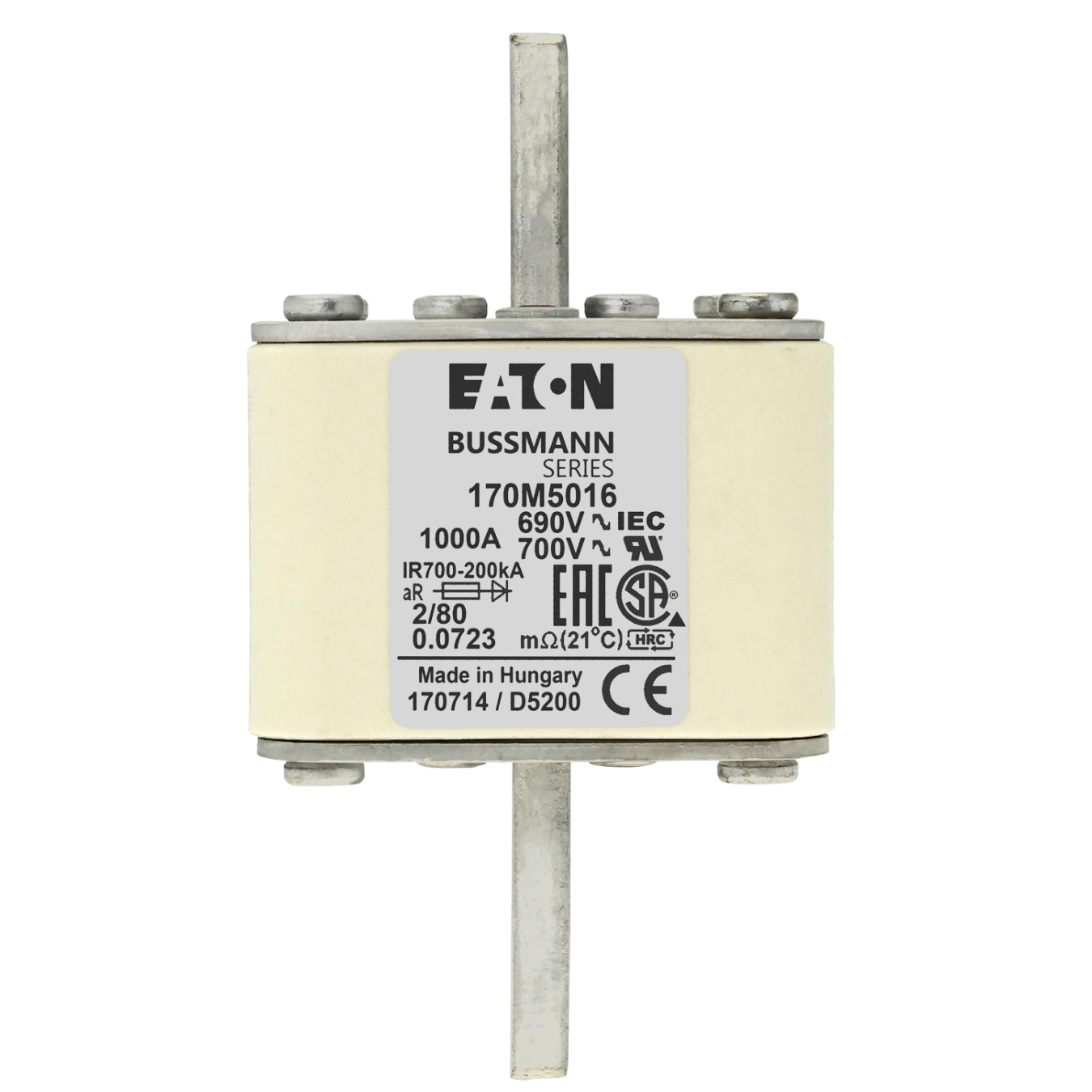

Eaton Bussmann 170M5016 High Speed Fuse, 1000A 690VAC, aR Square Body DIN 2 - Pack of 3

The Eaton Bussmann 170M5016 is a high-performance square body fuse-link engineered specifically for the protection of power semiconductors. As part of the premium High Speed series, this fuse is designed to minimize let-through energy (I²t) and peak currents, effectively safeguarding diodes, thyristors, and IGBTs. Featuring a Size 2 DIN-standard construction with slotted center bolted tags, it is ideal for heavy-duty industrial power conversion and distribution applications.

Key Features

• Semiconductor Protection: Optimized with an 'aR' utilization category, providing ultra-fast response times to protect sensitive electronic components from overcurrent damage.
• High Breaking Capacity: Rated for a massive 200kA interrupt capacity at 690VAC, ensuring safe circuit isolation even under severe fault conditions.
• Visual Status Monitoring: Equipped with a top-mounted visual fuse status indicator for rapid identification of blown fuses and minimized system downtime.
• Robust Bolted Connection: Designed with slotted center bolted tags (DIN 43653) for secure, low-resistance mounting in industrial busbars and fuse bases.
• Global Compliance: Fully certified under IEC 60269 and UL Recognized standards, ensuring performance reliability and safety across international markets.

Technical Specifications

• Manufacturer: Eaton Bussmann
• Product Series: 170M High Speed
• Model: 170M5016
• Body Type: Square Body, Size 2
• Connection: Slotted Center Bolted Tags
• Current Rating: 1000 A
• Voltage Rating: 690V AC (IEC) / 700V AC (UL)
• Clearing I²t: 1,250,000 at 660V
• Watts Loss: 115 W
• Package Quantity: 3 Pieces
