Eaton Bussmann 100NHG000B NH Fuse, 100A 500VAC, gG/gL Class Size 000 - Pack of 10

The Eaton Bussmann 100NHG000B is a high-performance, low-voltage NH fuse-link designed for industrial-scale circuit protection. Part of the Square Body series with knife-blade contacts, this Size 000 fuse is engineered for high breaking capacity and reliable operation in demanding electrical environments. Rated at 100A and 500VAC, it complies with global standards including IEC 60269 and DIN 43620, ensuring safety and performance for utility, solar, and wind power applications.

Key Features

• Dual Utilization Class: Rated as Class gG/gL, providing comprehensive protection for both general-purpose cable protection and equipment isolation.
• High Interrupt Capacity: Features a massive 120kA breaking capacity at 500VAC, capable of safely handles extreme fault currents.
• Efficient Heat Dissipation: Designed with a ceramic body and metal-plated copper contacts to minimize power loss (7.4W at rated current) and maintain thermal stability.

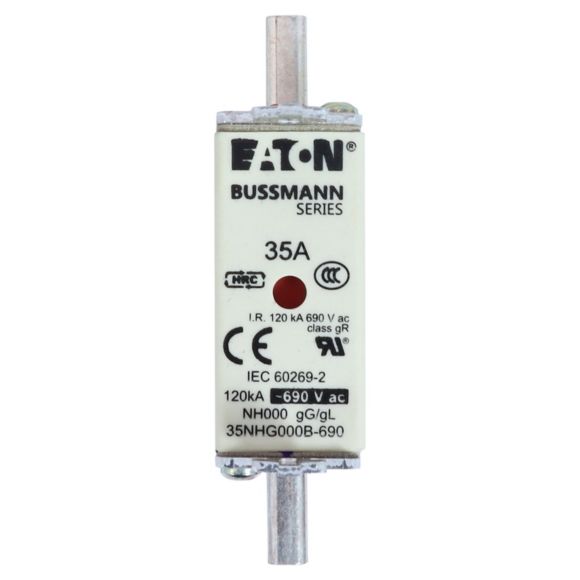

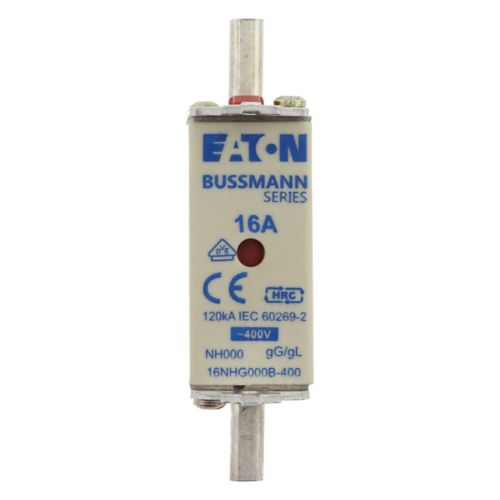

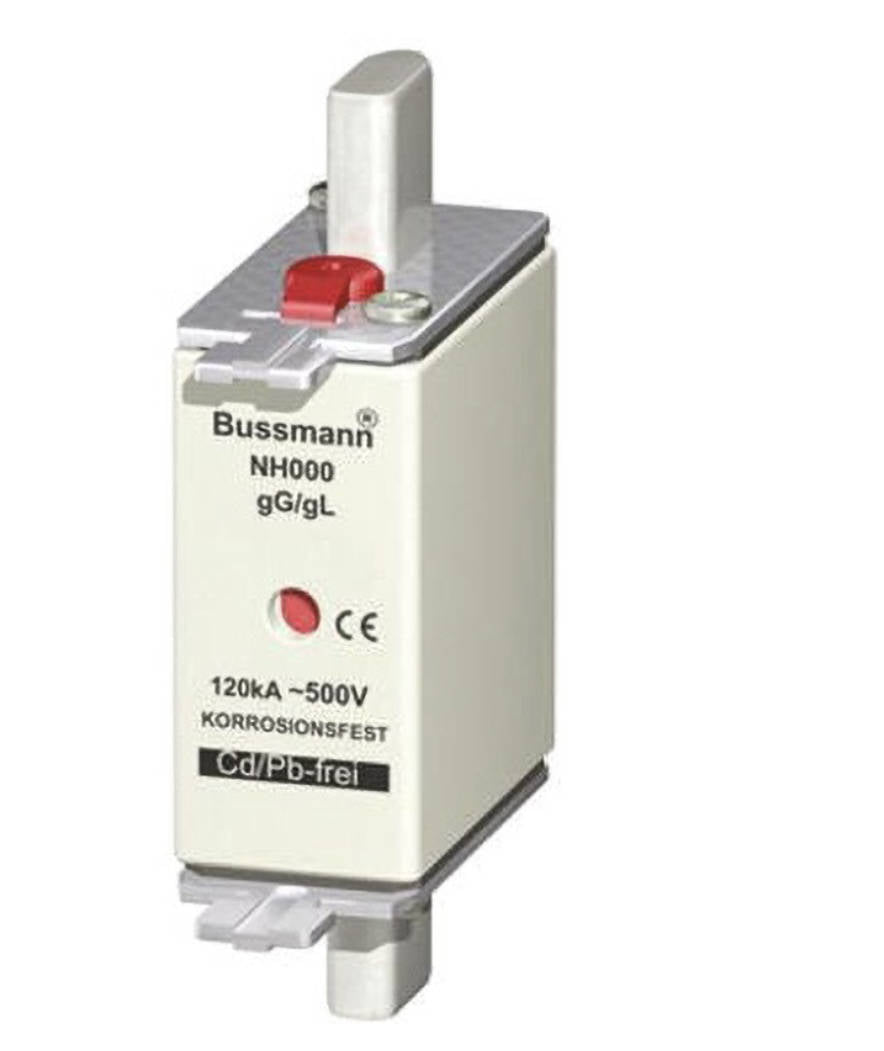

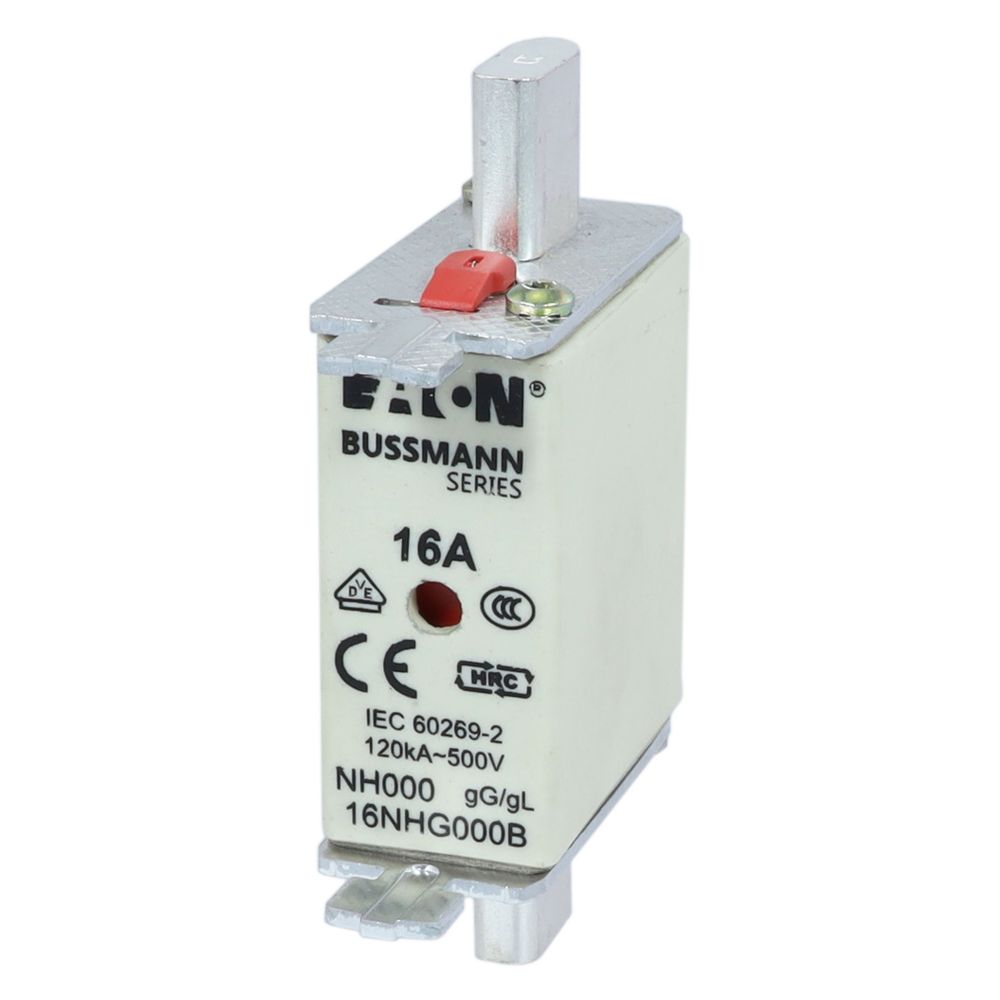

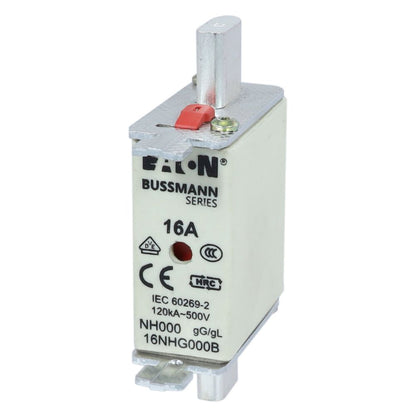

• Compact NH000 Construction: Offers a space-saving square body design with knife blade contacts for secure fitment in standard NH horizontal and vertical fuse switch-disconnectors.
• Combination Monitoring: Equipped with a dual-status indicator system for clear visual confirmation of the fuse state.
• Industrial Durability: Built to withstand frequencies from 45Hz to 62Hz, making it compatible with global power grid standards.

Technical Specifications

• Manufacturer: Eaton Bussmann
• Catalog Number: 100NHG000B
• Fuse Size: NH000
• Current Rating: 100A
• Voltage Rating: 500V AC
• Breaking Capacity: 120 kA
• Utilization Category: gG/gL
• Frequency Rating: 45 - 62 Hz
• Power Loss: 7.4 W
• Material: Ceramic Body, Metal Plated Copper Terminals
• Dimensions: 79 mm (L) x 51 mm (H) x 21 mm (W)
• Standards: IEC 60269-1, IEC 60269-2, DIN 43620, CE Marked
• Package Quantity: 10 Pieces
