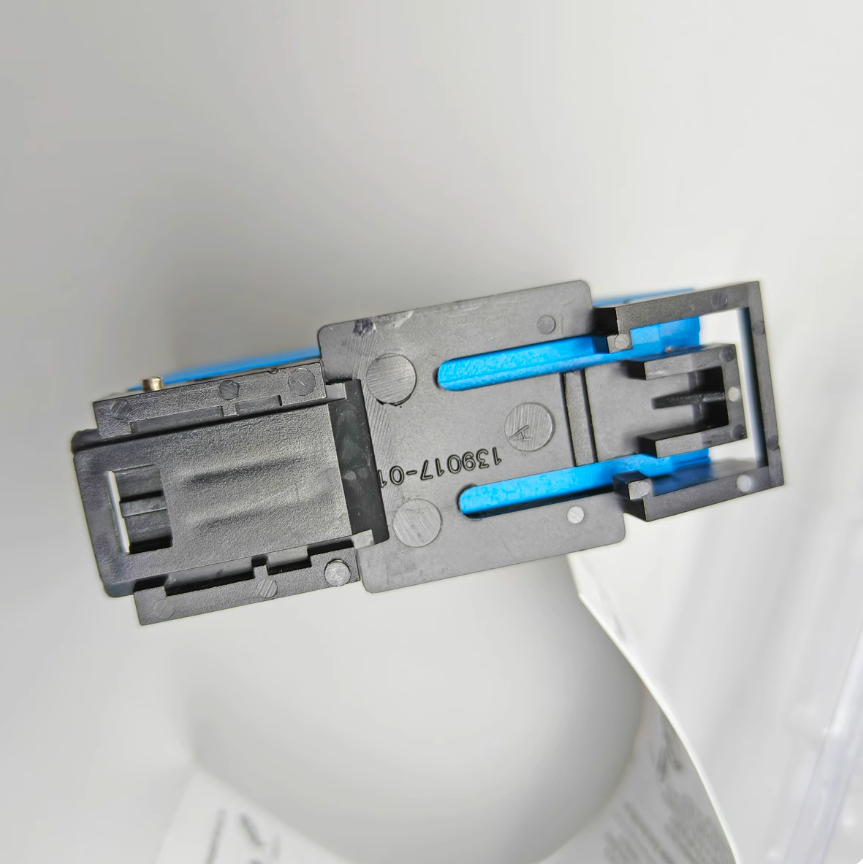

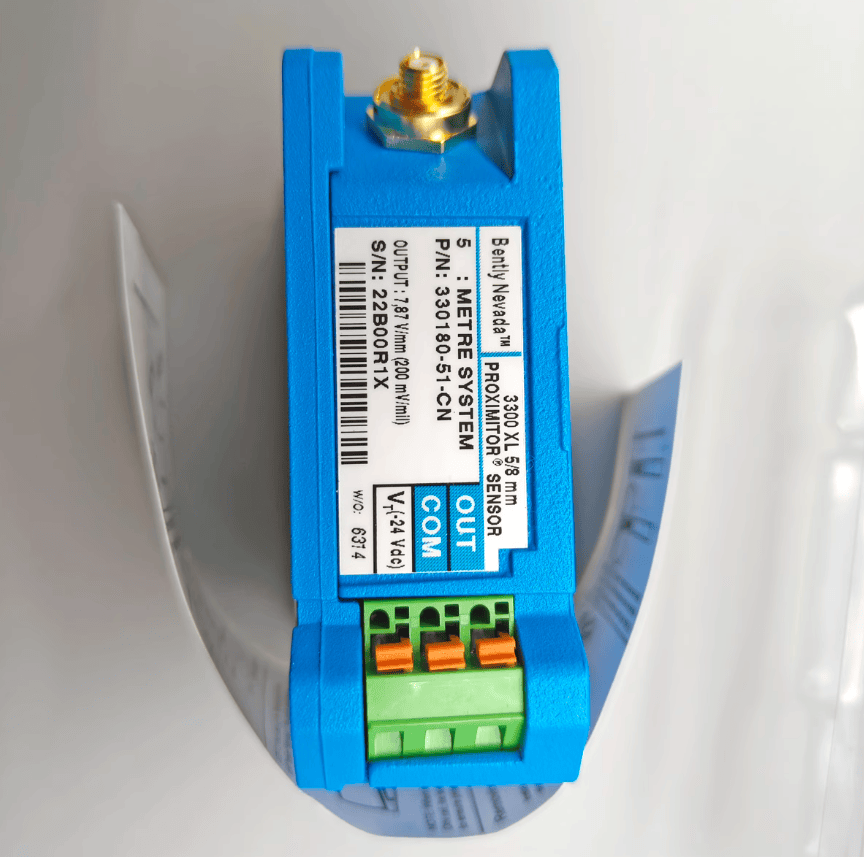

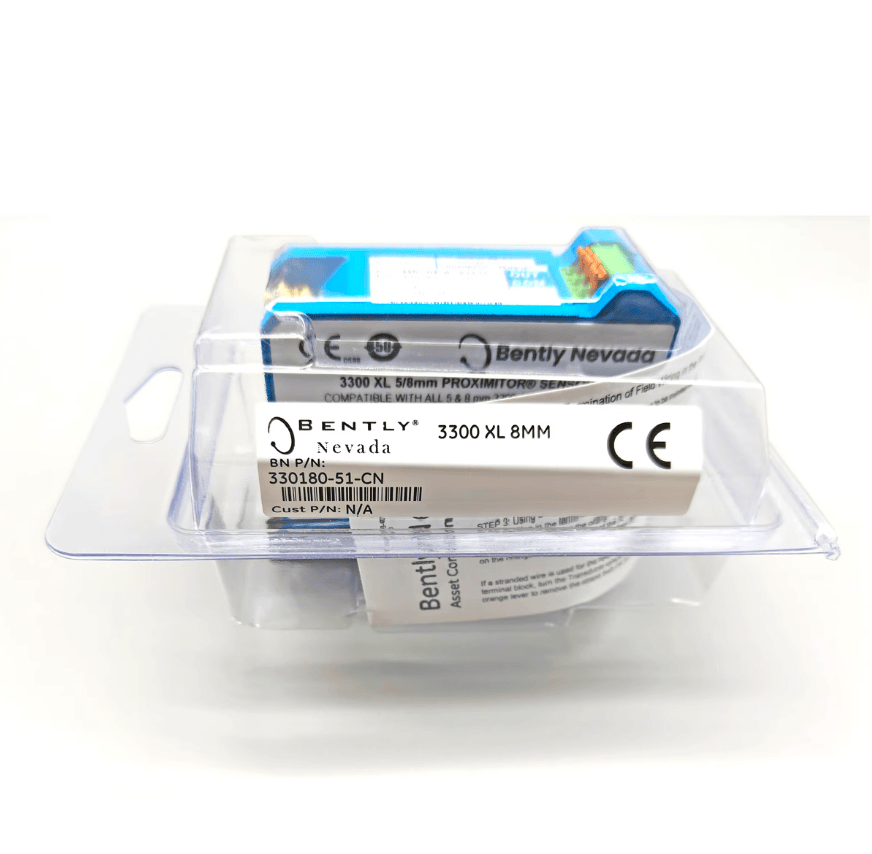

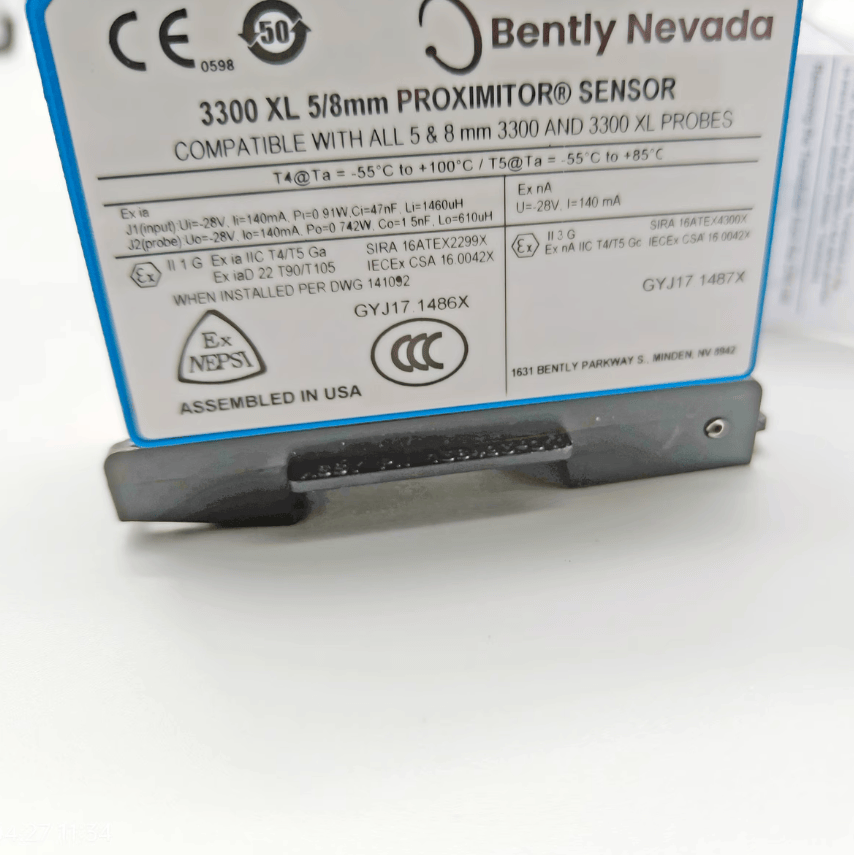

Bently Nevada 330180-51-CN 3300 XL Proximitor Sensor, 5.0 m System Length, DIN Mount, ATEX/IECEx/NEPSI Certified

The Bently Nevada 330180-51-CN 3300 XL Proximitor Sensor is a high-performance, non-contact Eddy Current proximity sensor designed for critical machinery vibration and position monitoring in hazardous industrial environments. As a core component of Bently Nevada's 3300 XL series, this sensor provides precise and reliable measurements of shaft absolute and relative vibration, axial position, and speed, crucial for the protection and smooth operation of rotating machinery.

This specific model, identified by the part number 330180-51-CN, features a total system length of 5.0 meters (approximately 16.4 feet), which includes the probe, extension cable (if used), and proximitor sensor. The "-51" option indicates a DIN rail mounting configuration for the proximitor sensor, allowing for convenient and secure installation within control cabinets or junction boxes. A key characteristic of this model is the "-CN" agency approval option, signifying ATEX/IECEx and Chinese NEPSI hazardous area markings. This certification guarantees that the sensor is intrinsically safe and suitable for deployment in potentially explosive atmospheres, complying with rigorous international and Chinese safety standards. The 3300 XL Proximitor Sensor offers superior performance, enhanced stability, and robust environmental immunity, making it ideal for monitoring critical assets such as steam turbines, gas turbines, compressors, and generators in industries like oil & gas, petrochemicals, and power generation where both operational reliability and safety are paramount.

Manufacturer Information

• Manufacturer: Bently Nevada
• Part No.: 330180-51-CN
• Model: 3300 XL Proximitor Sensor
• Total Length and Mounting Option: -51 (5.0 meter / 16.4 feet system length, DIN mount)
• Agency Approval Option: -CN (ATEX/IECEx and Chinese NEPSI hazardous area marking)
