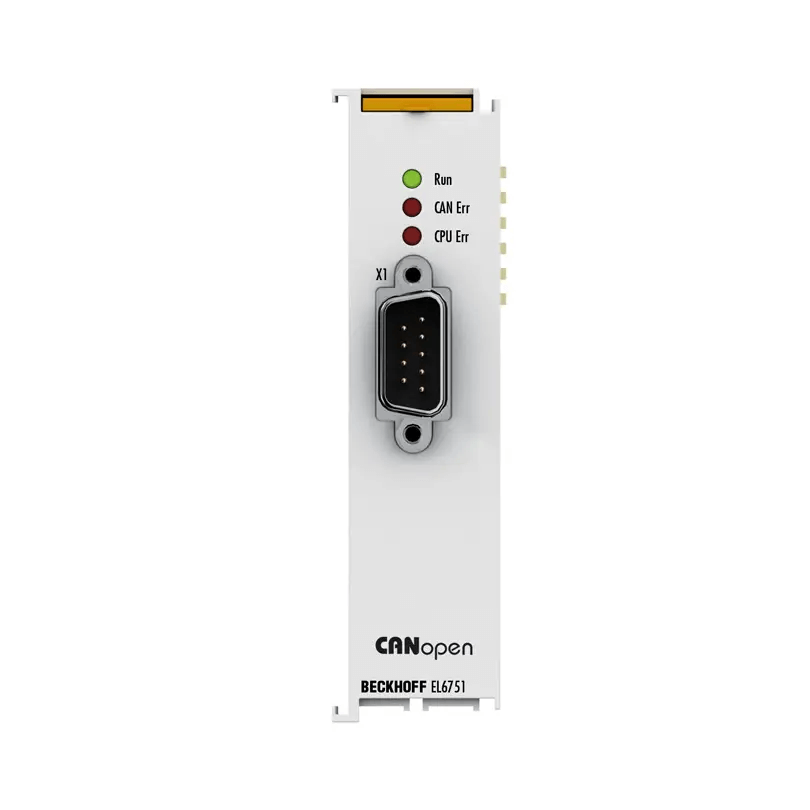

Beckhoff EL6751 EtherCAT Terminal CANopen Master/Slave Interface, 9-pin D-sub, 10 kbaud–1 Mbaud, 24×100×52 mm

Overview

The Beckhoff EL6751 is a CANopen master/slave communication EtherCAT Terminal. It integrates CANopen devices into an EtherCAT Terminal network and provides a powerful protocol implementation including PDO types (event/time-driven, synchronous, polling), SYNC cycle with quartz precision, SDO parameter communication at start-up and runtime, emergency handling, guarding/heartbeat, and extensive diagnostics. General CAN (RAW‑CAN) messages can also be sent/received without handling CAN frames in the application.

Key Features

• CANopen master/slave terminal for EtherCAT systems
• All CANopen PDO communication types supported; SYNC with quartz precision
• SDO parameter communication, emergency handling, guarding/heartbeat
• Diagnostic interfaces and online bus‑load display
• Galvanically decoupled 9‑pin D‑sub interface
• Supports RAW‑CAN in addition to CANopen

Applications

• Connecting CANopen drives, I/O and devices to EtherCAT Terminal networks
• Drive synchronization and motion tasks requiring isochronous SYNC
• Space‑saving CANopen integration without PCI cards

Specifications
