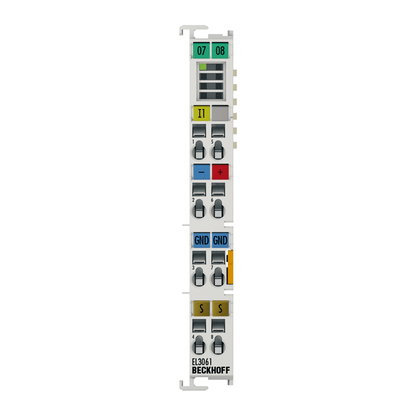

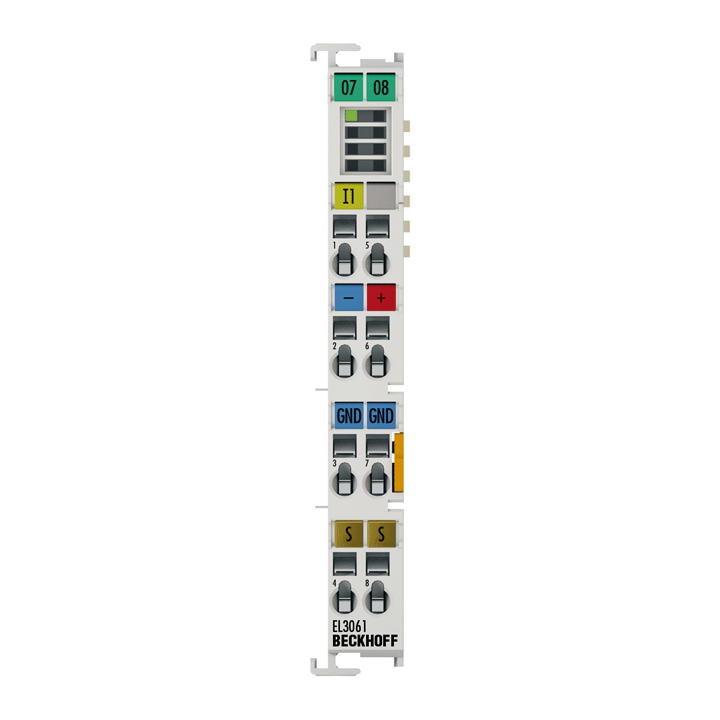

Beckhoff EL3061 EtherCAT Terminal Analog Input, 0–10 V, 12-bit, 1 Channel, 12×100×68 mm
Regular price
$145.00 USD
Regular price
Sale price
$145.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL3061 is a single-channel analog input EtherCAT Terminal for 0…10 V signals. The input is digitized with 12-bit resolution and transferred electrically isolated to the controller. The channel is single-ended with a common reference ground. Status LEDs indicate operating state.
Key Features
- 0…10 V single-ended analog input
- 12-bit resolution; default 0.625 ms conversion time (configurable, multiplexed)
- Input filter limit frequency 1 kHz; input impedance >130 kΩ
- Galvanic isolation: 500 V (E-bus/signal)
- Compact 12 mm IP20 terminal for DIN rail mounting
- FIR/IIR filters and limit value monitoring can be enabled
Applications
- Acquisition of 0–10 V process and sensor signals in EtherCAT systems
- Space-constrained panels needing a single isolated analog input
Specifications
| Specific MPN | EL3061 |
| Function | 1-channel analog input, voltage 0…10 V (single-ended) |
| Power Supply | Via E-bus |
| Signal Voltage | 0…10 V |
| Resolution | 12 bit (16-bit presentation incl. sign) |
| Conversion Time (default) | 0.625 ms (configurable, multiplexed) |
| Input Filter Limit Frequency | 1 kHz |
| Input Impedance | > 130 kΩ |
| Dielectric Strength | max. 30 V |
| Electrical Isolation | 500 V (E-bus/signal voltage) |
| Current Consumption (E-bus) | typ. 130 mA |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, ATEX, IECEx |
