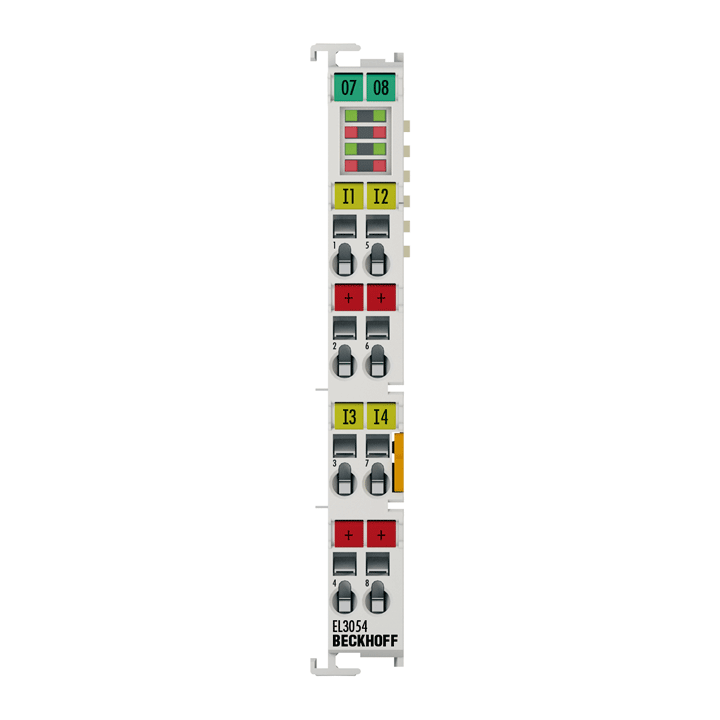

Beckhoff EL3054 EtherCAT Terminal 4-Channel Analog Input, 4–20 mA, 12-bit, 12×100×68 mm
Regular price
$220.00 USD
Regular price
Sale price
$220.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL3054 is a 4-channel analog input EtherCAT Terminal for 4–20 mA current signals. Each channel is digitized with 12-bit resolution and transmitted galvanically isolated to the controller. The 24 V power contact is routed through the terminal to enable direct connection of 2‑wire sensors without an external supply. LEDs indicate run/error conditions and wire break/overload.
Key Features
- 4 single-ended current inputs, 4–20 mA
- 12-bit resolution; default conversion time 0.625 ms (configurable, multiplex)
- Independent of power-contact supply; 24 V power contact passed through for 2‑wire sensors
- Integrated diagnostics: overload and wire-break indication
- Electrical isolation between E‑bus and signal voltage (500 V)
- Compact 12 mm IP20 terminal for space-saving control cabinets
Applications
- Acquisition of 4–20 mA process signals from transmitters and sensors
- Control panels needing compact, isolated multi-channel analog inputs
Specifications
| Specific MPN | EL3054 |
| Function | 4-channel analog input, current 4…20 mA (single-ended) |
| Signal Range | 4…20 mA |
| Resolution | 12 bit (16-bit presentation incl. sign) |
| Conversion Time | 0.625 ms default; configurable (multiplexed) |
| Input Filter Limit Frequency | 1 kHz |
| Internal Resistance | typ. 85 Ω |
| Dielectric Strength | max. 30 V |
| Measurement Uncertainty | < ±0.3% of full scale |
| Electrical Isolation | 500 V (E-bus / signal voltage) |
| Current Consumption (E-bus) | typ. 130 mA |
| Process Image | Inputs: 16 byte; FIR/IIR filters and limit monitoring configurable |
| Dimensions | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, ATEX, IECEx |
