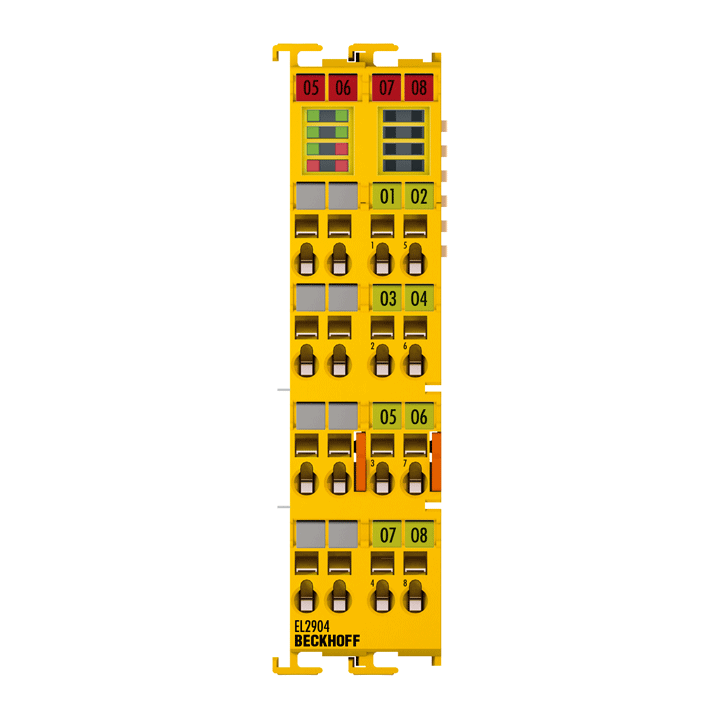

Beckhoff EL2904 TwinSAFE EtherCAT Terminal, 4 Safe DO, 24V DC, 0.5A/Channel, 24×100×68 mm
Regular price
$220.00 USD
Regular price
Sale price
$220.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL2904 is a TwinSAFE digital output EtherCAT Terminal with four fail-safe 24 V DC outputs (0.5 A per channel). Controlled via TwinSAFE/Safety over EtherCAT (FSoE), it performs a fail-stop on detected errors and offers parameterizable safety functions including output current measurement and channel test. Standard outputs can be enabled and internally ANDed with the safe outputs to allow faster switching when a safe release is present.
Key Features
- 4 safe outputs, 24 V DC, up to 0.5 A per channel
- TwinSAFE/Safety over EtherCAT (FSoE) controlled; fail-stop behavior on error
- Configurable safety parameters: current measurement, channel test, watchdog
- Optional standard outputs available in the process image, ANDed with safe outputs
- DIN rail, compact IP20 housing (24 × 100 × 68 mm)
- Safety standards: DIN EN ISO 13849-1 (Cat. 4, PL e), EN 61508 (SIL 3)
Applications
- Safety-related switching of actuators in EtherCAT systems
- Machines requiring SIL 3 / PL e outputs with fast standard output mirroring
Specifications
| Specific MPN | EL2904 |
| Function | TwinSAFE digital output terminal, 4 channels |
| Connection Technology | 1-/2-wire |
| Number of Outputs | 4 safe outputs |
| Max. Output Current | 0.5 A per channel (min. 20 mA with active current measurement) |
| Protocol | TwinSAFE / Safety over EtherCAT (FSoE) |
| Fault Response Time | ≤ watchdog time (parameterizable) |
| E‑bus Current Consumption | typ. 221 mA |
| Safety Standards | DIN EN ISO 13849-1:2008 (Cat. 4, PL e); EN 61508:2010 (SIL 3) |
| Protection Rating | IP20 |
| Ex Marking | ATEX: II 3G Ex ec IIC T4 Gc; IECEx: Ex ec IIC T4 Gc; cFMus Class I, Div. 2 / Zone 2 |
| Power Contacts (max.) | 10 A |
