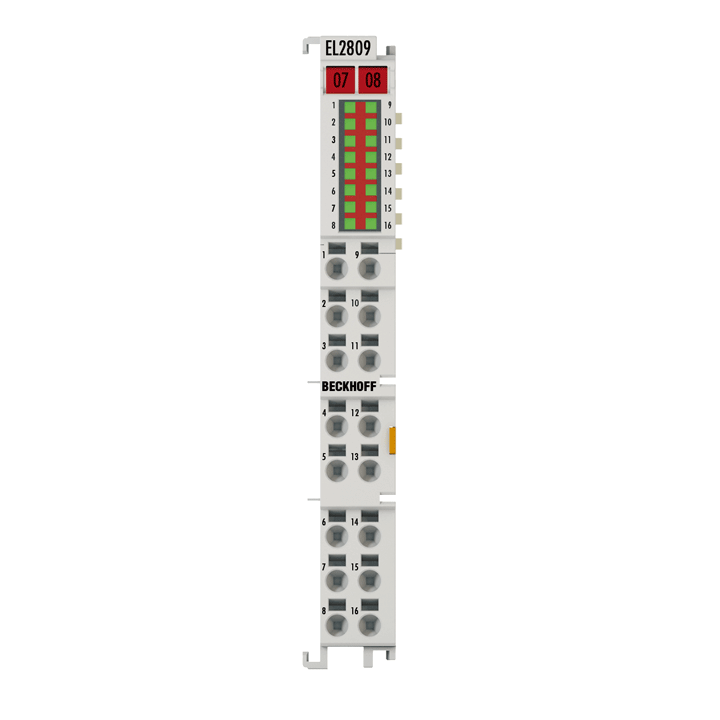

Beckhoff EL2809 EtherCAT Terminal Digital Output, 16-Channel 24V DC, 0.5A/Channel, 12×100×68 mm
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL2809 is a 16-channel 24 V DC digital output EtherCAT Terminal that drives actuators at the process level with galvanic isolation. Outputs are supplied via the 24 V DC power contact. Each channel includes LED status indication, supports multiple load types, and is overload/short-circuit proof with reverse-polarity protection. The compact 12 mm HD housing offers high channel density and tool-free direct plug-in wiring for solid conductors.
Key Features
- 16 digital outputs, 24 V DC
- 0.5 A maximum per channel; overload and short-circuit proof
- Supports ohmic, inductive, and lamp loads
- Reverse-polarity protection; breaking energy < 150 mJ/channel
- Typical switching times: TON 60 μs, TOFF 300 μs
- 1‑wire connection; high-density 12 mm housing with per-channel LEDs
Applications
- Driving relays, solenoids, and lamps in EtherCAT systems
- Space-constrained control panels requiring high output density
Specifications
| Specific MPN | EL2809 |
| Series / Type | EtherCAT Terminal, digital output |
| Connection Technology | 1-wire |
| Number of Outputs | 16 |
| Nominal Voltage | 24 V DC (-15%/+20%) |
| Max. Output Current | 0.5 A per channel (short-circuit proof) |
| Load Types | Ohmic, inductive, lamp load |
| Switching Times | Typical TON 60 μs; TOFF 300 μs |
| Protections | Reverse-polarity protection; typ. short-circuit current < 2 A; breaking energy < 150 mJ/channel |
| Electrical Isolation | 500 V (E-bus / field potential) |
| Current Consumption (E-bus) | typ. 140 mA |
| Current Consump. (Power Contacts) | typ. 35 mA + load; power contacts up to 10 A |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
