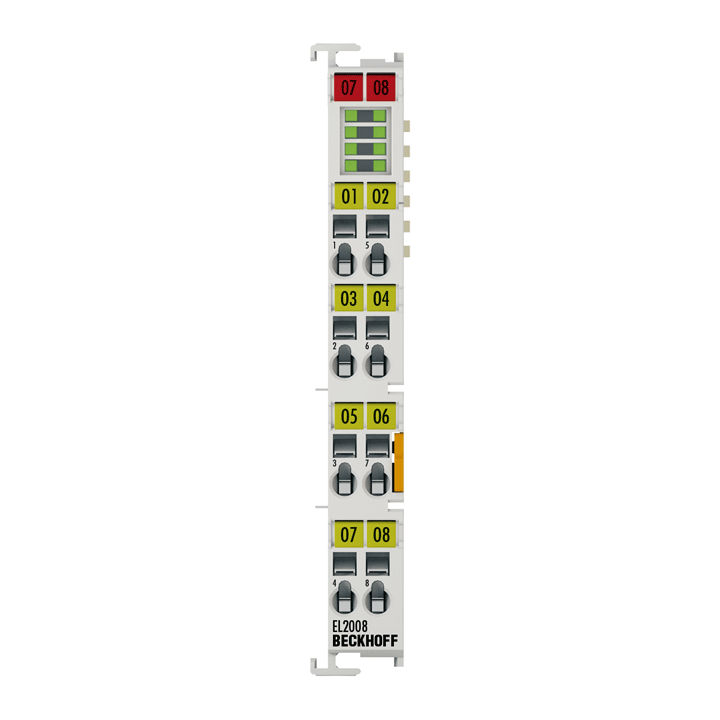

Beckhoff EL2008 EtherCAT Terminal 8-Channel Digital Output, 24V DC, 0.5A Per Channel, 12×100×68 mm
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL2008 is an EtherCAT Terminal that drives eight 24 V DC digital outputs to actuators at the process level with galvanic isolation. Each channel includes an LED status indicator, supports multiple load types, and is short-circuit proof with reverse-polarity protection.
Key Features
- 8-channel 24 V DC digital output terminal
- 0.5 A max per channel; short-circuit proof
- Supports ohmic, inductive, and lamp loads
- Reverse-polarity protection on outputs
- 500 V electrical isolation (E-bus/field)
- Compact 12 mm IP20 terminal with per-channel LED indication
Applications
- Driving solenoids, relays, lamps, and general 24 V DC actuators in EtherCAT systems
- Space-constrained control panels requiring high channel density
Specifications
| Specific MPN | EL2008 |
| Function | 8-channel digital output EtherCAT Terminal |
| Connection Technology | 1-wire |
| Number of Outputs | 8 |
| Nominal Voltage | 24 V DC (-15%/+20%) |
| Max. Output Current | 0.5 A per channel (short-circuit proof) |
| Load Types | Ohmic, inductive, lamp load |
| Protection Features | Reverse-polarity protection; typ. short-circuit current < 2 A; breaking energy < 150 mJ/channel |
| Switching Times | typ. TON 60 μs; typ. TOFF 300 μs |
| Current Consumption (E-bus) | typ. 110 mA |
| Current Consump. (Power Contacts) | typ. 15 mA + load; power contacts up to 10 A |
| Electrical Isolation | 500 V (E-bus / field potential) |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
