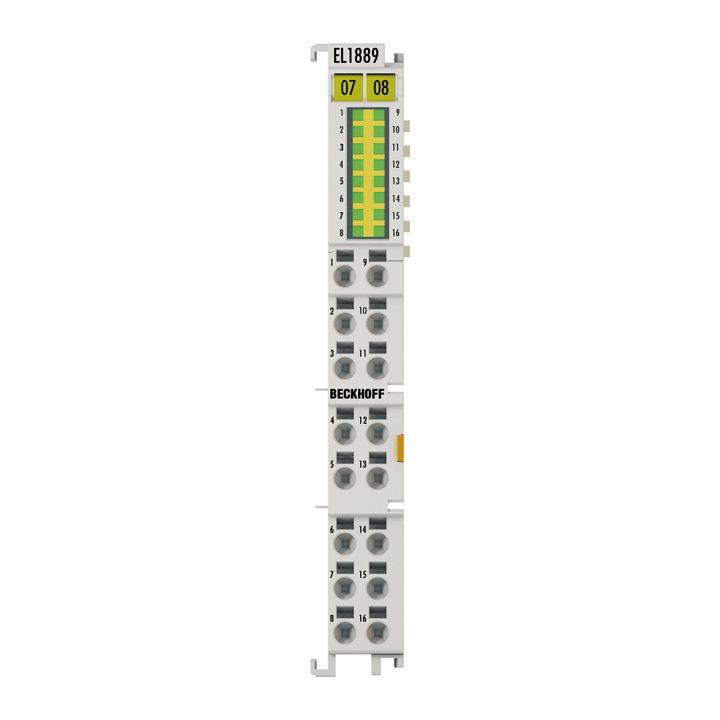

Beckhoff EL1889 EtherCAT Terminal 16-Channel Digital Input, 24V DC, 3 ms Filter (Ground Switching), 12×100×68 mm
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL1889 is a 16-channel digital input EtherCAT Terminal for 24 V DC signals. It uses ground switching, acquires binary inputs with galvanic isolation, and indicates each channel state via LEDs. A built-in 3 ms input filter suppresses contact bounce. The reference ground for all inputs is the 24 V power contact.
Key Features
- 16 digital inputs, 24 V DC, ground-switching reference
- 3 ms input filter for bounce suppression
- 1-wire connection; high-density 12 mm housing
- Per-channel LED indication
- 500 V isolation between E-bus and field potential
- Tool-free direct plug-in wiring for solid conductors
Applications
- General 24 V DC signal acquisition where ground switching is required
- Space-constrained panels needing high input density
Specifications
| Specific MPN | EL1889 |
| Series / Type | EtherCAT Terminal, 16-channel digital input (ground switching) |
| Connection Technology | 1-wire |
| Number of Inputs | 16 |
| Nominal Voltage | 24 V DC (-15%/+20%) |
| Signal Voltage Thresholds | “0”: 18…30 V; “1”: 0…7 V (ground switching) |
| Input Current | typ. 3 mA |
| Input Filter | typ. 3 ms |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Current Consumption | Power contacts: typ. 35 mA; E-bus: typ. 110 mA |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx |
