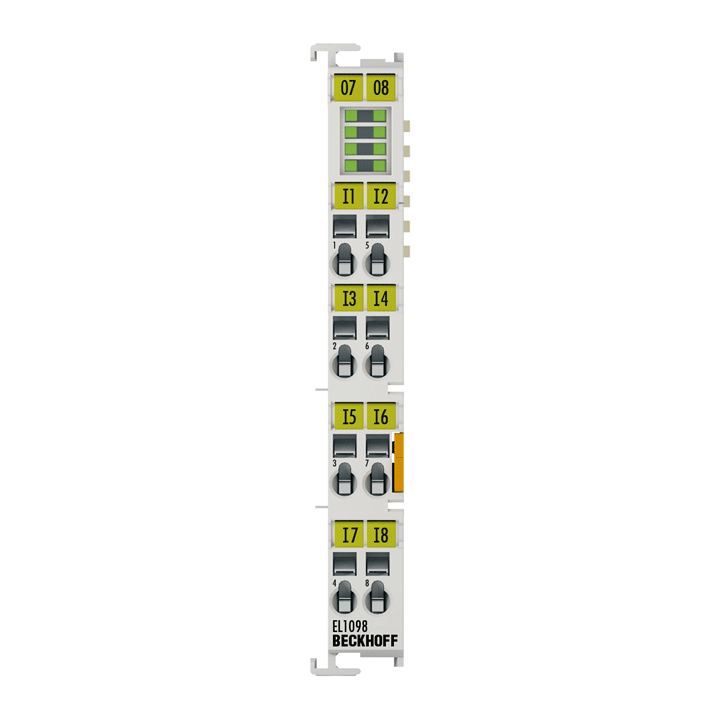

Beckhoff EL1098 EtherCAT Terminal 8‑Channel Digital Input, 24V DC Ground‑Switching, 10µs Filter, 12×100×68 mm
Regular price
$140.00 USD
Regular price
Sale price
$140.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL1098 is an 8‑channel digital input EtherCAT Terminal for 24 V DC signals using ground‑switching logic. It features a fast 10 µs input filter for low delay acquisition and is suitable for direct connection of multi‑channel inductive or capacitive sensors via 1‑wire technique. Inputs are galvanically isolated from the E‑bus, with per‑channel LED indication.
Key Features
- 8 digital inputs, 24 V DC (ground‑switching)
- Fast input filter: typ. 10 µs
- 1‑wire connection; direct connection of multi‑channel sensors
- 500 V isolation between E‑bus and field potential
- Compact 12 mm IP20 terminal with status LEDs
- Approvals: CE, UL, ATEX, DNV GL
Specifications
| Specific MPN | EL1098 |
| Function | 8‑channel digital input terminal |
| Nominal Voltage | 24 V DC (−15% / +20%) |
| Logic (Ground‑switching) | “0”: 18…30 V; “1”: 0…7 V; typ. input current 3 mA |
| Input Filter | typ. 10 µs |
| Connection Technology | 1‑wire |
| Electrical Isolation | 500 V (E‑bus / field) |
| Current Consumption | Power contacts: typ. 25 mA; E‑bus: typ. 90 mA |
| Operating / Storage Temp. | 0…+55 °C / −25…+85 °C |
| Dimensions (W × H × D) | 12 × 100 × 68 mm; IP20 |
