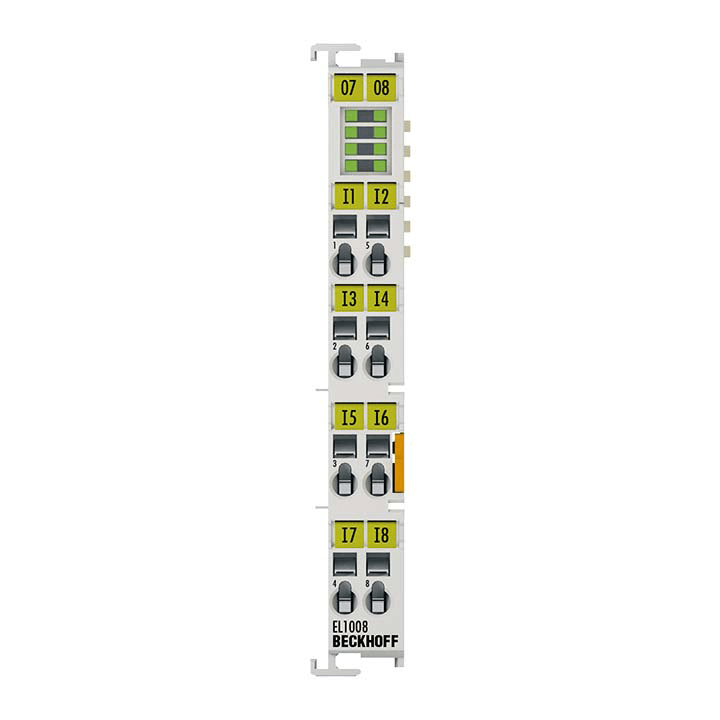

Beckhoff EL1008 EtherCAT Terminal, 8‑Channel Digital Input 24V DC, 3 ms Input Filter, 12×100×68 mm
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL1008 is an EtherCAT Terminal that acquires eight 24 V DC binary input signals and transmits them galvanically isolated to the controller. Each channel has an LED status indicator. A built-in 3 ms input filter suppresses contact bounce from mechanical switches.
Key Features
- 8-channel 24 V DC digital input (EN 61131-2, type 1/3)
- 3 ms input filter for bounce suppression
- Electrical isolation between E-bus and field potential
- Compact 12 mm-wide IP20 terminal for 35 mm DIN rail
- LED indication per channel
- Approvals: CE, CCC, UL, ATEX, IECEx, DNV, cFMus
Applications
- General-purpose 24 V DC input acquisition in EtherCAT systems
- Mechanical switch and sensor inputs requiring debounce filtering
Specifications
| Specific MPN | EL1008 |
| Function | 8-channel digital input terminal for EtherCAT |
| Connection Technology | 1‑wire |
| Specification | EN 61131‑2, type 1/3 |
| Nominal Voltage | 24 V DC (−15%/+20%) |
| Signal Voltage “0” / “1” | “0”: −3…+5 V; “1”: 11…30 V (type 3) |
| Input Current | typ. 3 mA (type 3) |
| Input Filter | typ. 3 ms |
| Current Consumption (E‑bus) | typ. 90 mA |
| Current Consumption (Power Contacts) | typ. 2 mA + load; power contacts up to 10 A |
| Electrical Isolation | 500 V (E‑bus / field potential) |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
