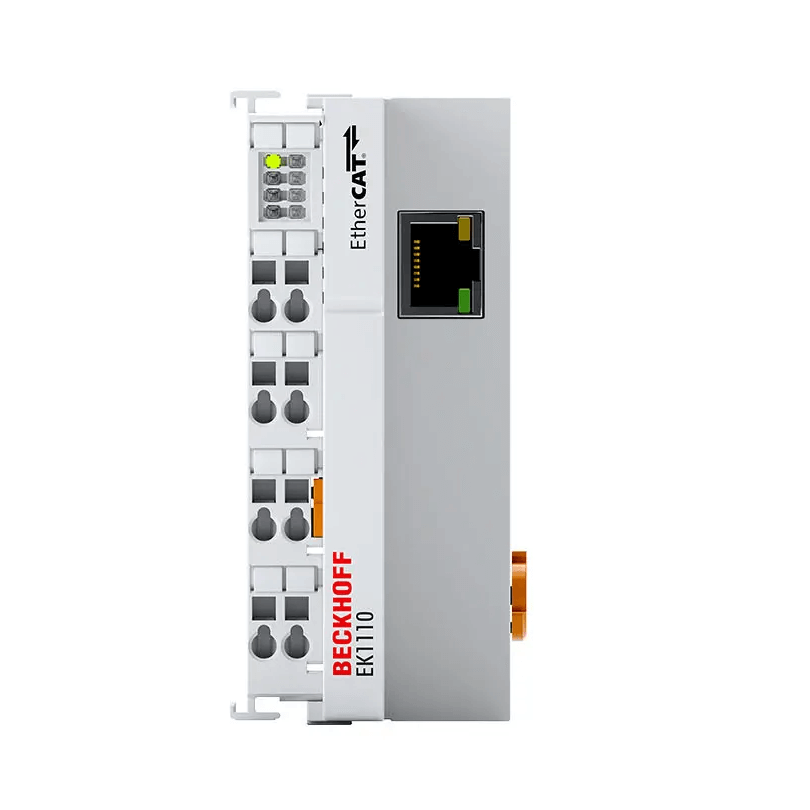

Beckhoff EK1110 EtherCAT Extension Extension Module, 1x RJ45 100BASE-TX, 100 m Segment, 44×100×68 mm
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EK1110 is an EtherCAT extension placed at the end of an EtherCAT Terminal segment or a CX Embedded PC to extend the EtherCAT network in a line topology. It converts E‑bus signals to 100BASE‑TX Ethernet continuously, requires no configuration, and is powered via the E‑bus.
Key Features
- Extends EtherCAT networks in line topology
- Converts E‑bus signals to 100BASE‑TX Ethernet
- 1 × RJ45 interface; up to 100 m between stations
- No parameterization or configuration required
- Powered from the E‑bus
- Compact IP20 DIN‑rail housing with status LEDs
Applications
- Adding further EtherCAT segments or devices after an ELxxxx terminal string or CX Embedded PC
- Building long line topologies without additional configuration
Specifications
| Brand | Beckhoff |
| Series | EtherCAT Extension |
| Specific MPN | EK1110 |
| Task | Conversion of E‑bus signals to 100BASE‑TX Ethernet for EtherCAT network extension |
| Bus Interface | 1 × RJ45 (100BASE‑TX) |
| Data Transfer Rate | 100 Mbit/s; delay approx. 1 μs |
| Distance Between Stations | Up to 100 m (Cat.5 shielded cable or better) |
| Configuration | Not required |
| Power Supply | From E‑bus; typical E‑bus current consumption 130 mA |
| Electrical Isolation | 500 V (supply voltage / Ethernet) |
| Operating Temperature | -25…+60 °C (storage -40…+85 °C) |
| Protection / Mounting | IP20; 35 mm DIN rail (EN 60715); compact terminal housing with LEDs |
| Approvals / Markings | CE, CCC, UL, ATEX, IECEx, DNV; Ex: ATEX II 3 G Ex ec IIC T4 Gc; IECEx Ex ec IIC T4 Gc |
| Dimensions (W × H × D) | 44 mm × 100 mm × 68 mm; weight ≈ 50 g |
