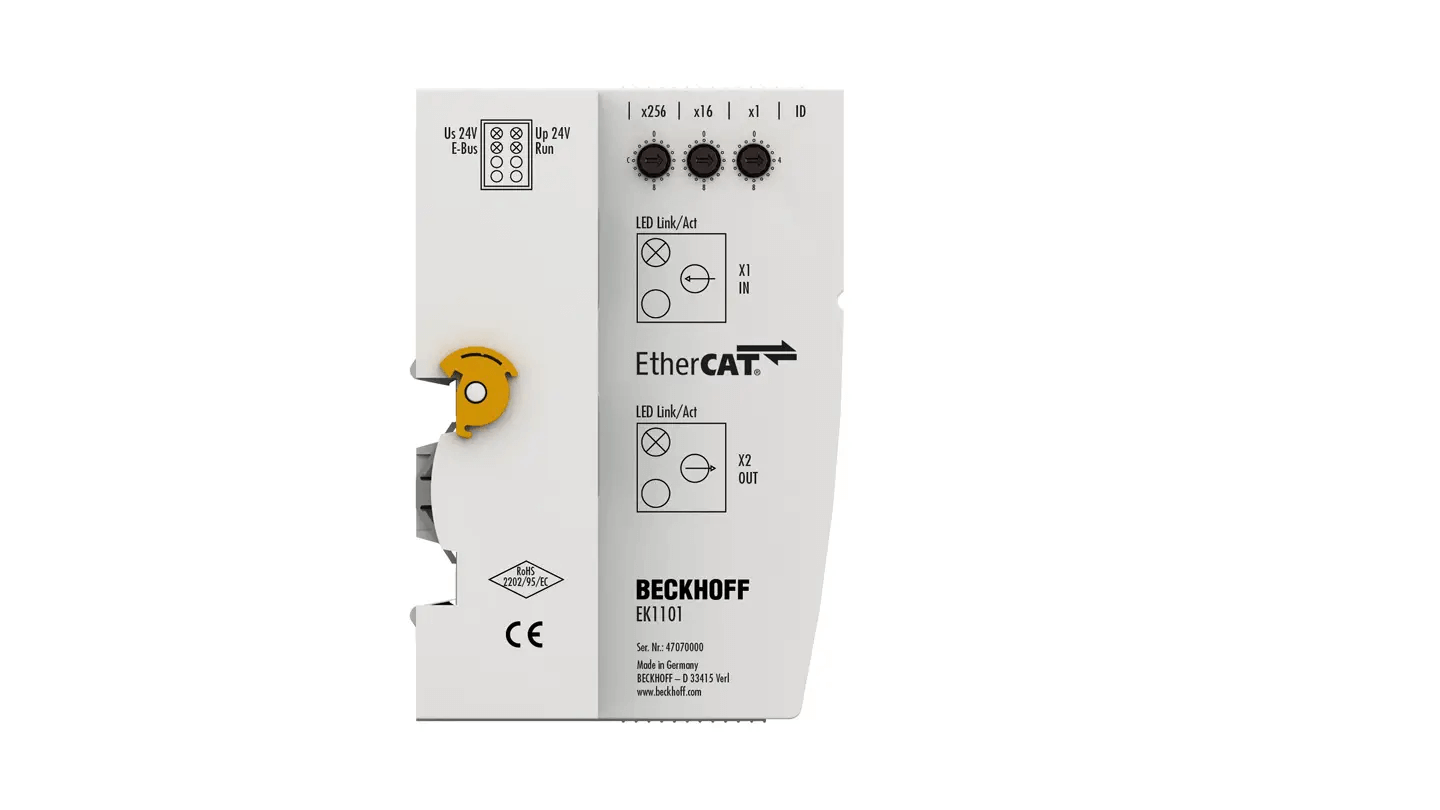

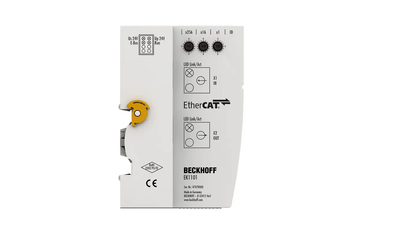

Beckhoff EK1101 EtherCAT Coupler EtherCAT Coupler with ID Switch, 2x RJ45 100BASE-TX, 24V DC Supply, 44×100×68 mm

$300.00 USD
$300.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview

The Beckhoff EK1101 EtherCAT Coupler links 100BASE‑TX EtherCAT networks to EtherCAT Terminals (ELxxxx). It converts Ethernet telegrams to E‑bus signals, auto-detects attached terminals, and includes three hexadecimal ID switches for assigning a unique group ID, enabling flexible, variable topologies. System and field supplies (24 V DC) are provided at the coupler; the E‑bus can supply up to 5 V / 2 A to terminals.

Key Features

  • EtherCAT coupler with identity verification via three hex ID switches (up to 4096 configurable IDs)
  • 2 × RJ45 ports for 100BASE‑TX; up to 100 m between stations
  • Supports up to 65,534 EtherCAT Terminals in the overall system
  • E‑bus current supply up to 2000 mA; power contacts up to 24 V DC / 10 A
  • Electrical isolation 500 V between power contacts, supply voltage, and Ethernet
  • Compact IP20 housing; DIN‑rail (EN 60715) mounting; status LEDs
  • Approvals: CE, CCC, UL, ATEX, IECEx, DNV, cFMus

Applications

  • Coupling ELxxxx EtherCAT Terminals to EtherCAT networks with flexible placement using ID switches
  • Line or star topologies using EtherCAT junctions/extensions
  • Industrial control panels requiring compact, DIN-rail mounted couplers

Specifications

Brand Beckhoff
Series EtherCAT Coupler
Specific MPN EK1101
Function Coupling ELxxxx EtherCAT Terminals to 100BASE‑TX EtherCAT networks; identity verification with ID switches
Bus Interface 2 × RJ45 (100BASE‑TX)
Data Rate / Delay 100 Mbit/s; approx. 1 μs delay
Distance Between Stations Max. 100 m (Cat.5 shielded or better)
Max. EtherCAT Terminals Up to 65,534; addressable I/O up to 4.2 GB
Configurable IDs 4096 (three hexadecimal ID switches)
Power Supply 24 V DC (-15% / +20%)
Current Consumption (US) 70 mA + (∑ E‑bus current / 4)
E‑bus Current Supply 2000 mA (5 V)
Power Contacts Max. 24 V DC / max. 10 A
Electrical Isolation 500 V (power contact / supply voltage / Ethernet)
Operating Temperature -25…+60 °C (storage -40…+85 °C)
Protection / Mounting IP20; 35 mm DIN rail (EN 60715); compact terminal housing with LEDs
Dimensions (W × H × D) 44 mm × 100 mm × 68 mm; weight ≈ 105 g
