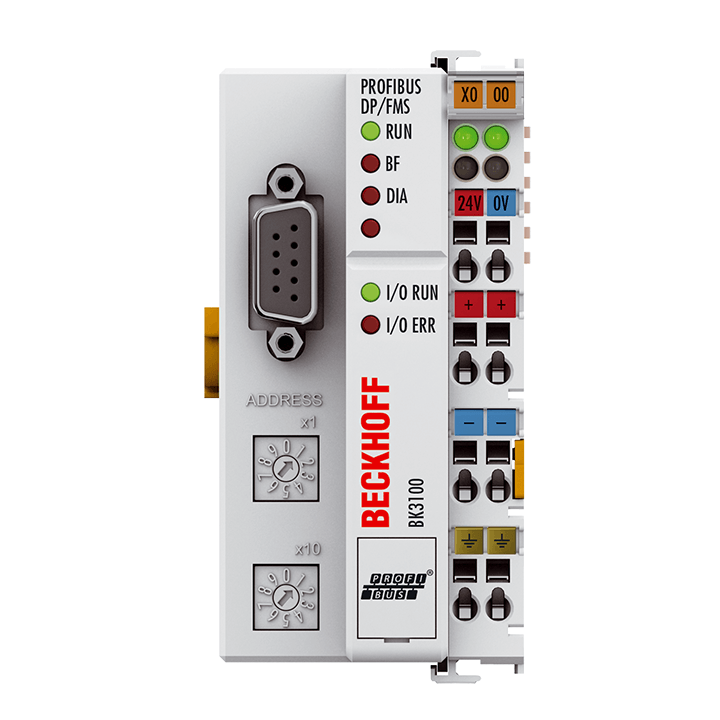

Beckhoff BK3100 PROFIBUS Bus Coupler, 12 Mbaud Auto-Detect, 64 Terminals, 64 In/64 Out (DP/FMS) or 128 In/128 Out (DP), 24V DC, 51×100×69 mm
Regular price
$380.00 USD
Regular price
Sale price
$380.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff BK3100 PROFIBUS Bus Coupler connects modular Bus Terminals to PROFIBUS networks. It automatically detects baud rates up to 12 Mbaud and maps connected terminals to the process image. In DP mode it supports up to 128 bytes input and 128 bytes output; in DP and FMS mode up to 64 bytes input and 64 bytes output. Up to 64 terminals can be attached (K‑bus current 1,750 mA).
Key Features
- PROFIBUS Bus Coupler with automatic baud detection up to 12 Mbaud
- Process image: 64 In/64 Out (DP & FMS) or 128 In/128 Out (DP only)
- Supports 512 digital I/O or 64 analog I/O (DP mode)
- K‑bus current supply 1,750 mA; up to 64 Bus Terminals
- 24 V DC supply; 500 V electrical isolation (power contacts/supply/fieldbus)
- D‑sub 9‑pin PROFIBUS interface; shielded copper cable 2 × 0.25 mm²
Specifications
| Model | BK3100 PROFIBUS Bus Coupler |
| Bus Terminals Supported | Up to 64 |
| Process Image | 64 bytes In / 64 bytes Out (DP & FMS); 128 bytes In / 128 bytes Out (DP only) |
| PROFIBUS Interface | 1 × D‑sub 9‑pin socket (shielded); cable 2 × 0.25 mm² |
| Data Rate | Automatic detection up to 12 Mbaud |
| Power Supply | 24 V DC (−15%/+20%); input current 70 mA + (Σ K‑bus/4), max 500 mA |
| K‑bus Current Supply | 1,750 mA |
| Power Contacts | Max. 24 V DC / 10 A |
| Electrical Isolation | 500 V (power contacts / supply voltage / fieldbus) |
| Dimensions (W × H × D) | 51 × 100 × 69 mm |
| Approvals | CE, CCC, UL, ATEX, IECEx, DNV |
| Status | Regular delivery (not recommended for new projects); recommended alternatives: BK3120, BK3150 |
