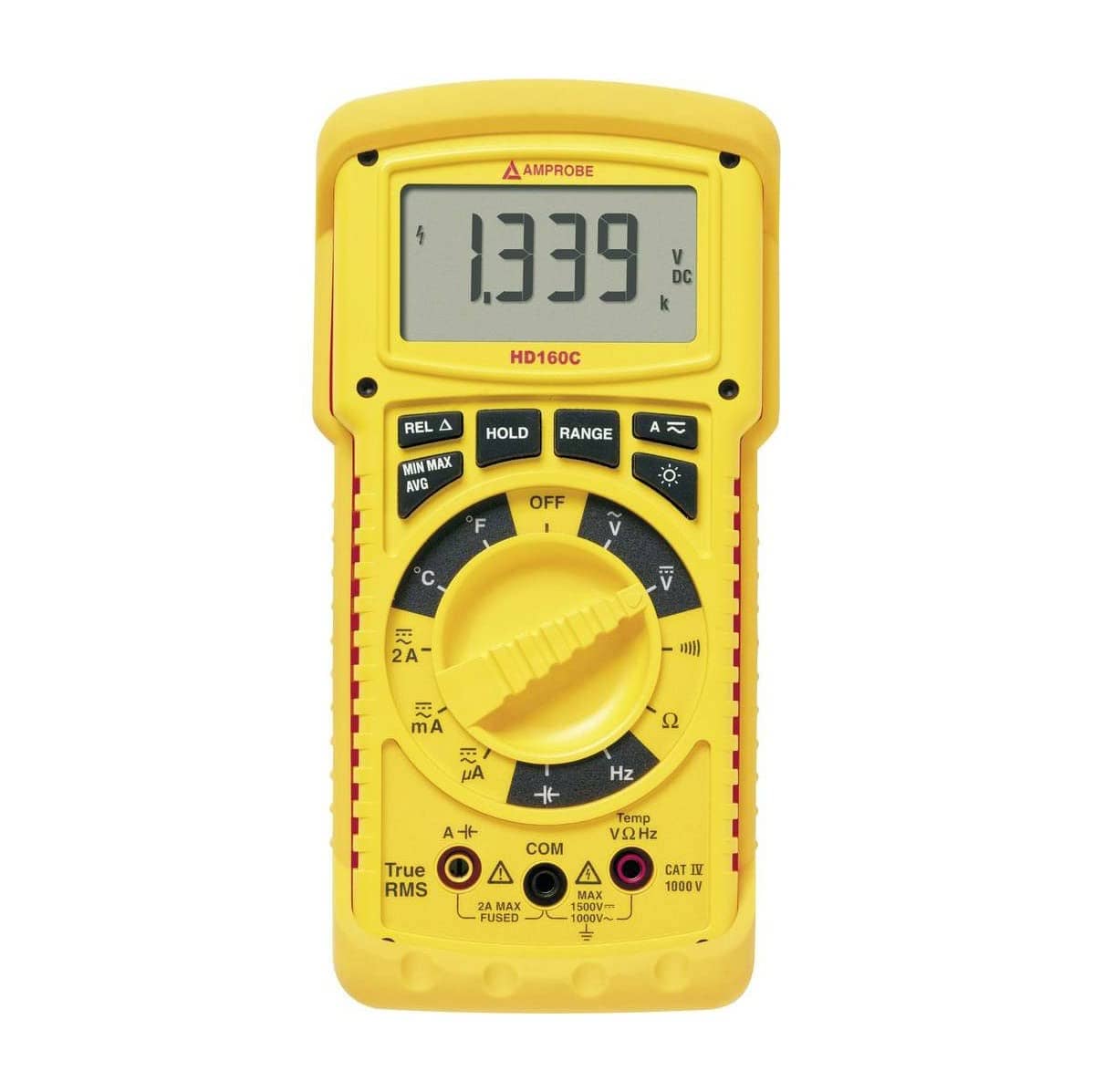

AMPROBE HD160C IP67 Heavy Duty Multimeter

Amprobe HD160C Heavy Duty Digital Multimeter

The Amprobe HD160C is a rugged, heavy-duty digital multimeter designed for demanding industrial and commercial applications. Built to withstand harsh environments, this meter offers a wide range of measurement capabilities and advanced features to ensure accurate and reliable results.

Key Features:

• True-RMS Measurement: Provides accurate AC voltage and current readings, even with distorted waveforms.
• High Voltage Capability: Measures up to 1000 V AC/DC.
• High Current Capability: Measures up to 20 A AC/DC.
• Temperature Measurement: Measures temperature from -40°F to 1832°F (-40°C to 1000°C) using a K-type thermocouple.
• Capacitance Measurement: Measures capacitance from 0.01 nF to 9999 µF.
• Frequency Measurement: Measures frequency from 0.001 Hz to 9.999 MHz.
• Audible Continuity: Quickly checks for shorts and open circuits.
• Diode Test: Tests diodes for proper functionality.
• Min/Max/Avg Recording: Captures minimum, maximum, and average readings over time.
• Relative Mode: Makes comparative measurements.
• Data Hold: Freezes the display for easy reading.
• Backlit Display: Provides clear visibility in low-light conditions.
• Safety Rated: CAT IV 600 V, CAT III 1000 V for safe operation in high-energy environments.
• IP42 Rated: Water and dust resistant.
• Built-in Flashlight: Illuminates dark work areas.

Specifications:

• DC Voltage: 0.1 mV to 1000 V
• AC Voltage: 0.1 mV to 1000 V (True-RMS)
• DC Current: 0.1 µA to 20 A
• AC Current: 0.1 µA to 20 A (True-RMS)
• Resistance: 0.1 Ω to 60 MΩ
• Capacitance: 0.01 nF to 9999 µF
• Frequency: 0.001 Hz to 9.999 MHz
• Temperature: -40°F to 1832°F (-40°C to 1000°C)
• Safety Category: CAT IV 600 V, CAT III 1000 V
• IP Rating: IP42

Applications:

• Industrial maintenance
• Electrical troubleshooting
• HVAC repair
• Automotive diagnostics
• Commercial electrical work
