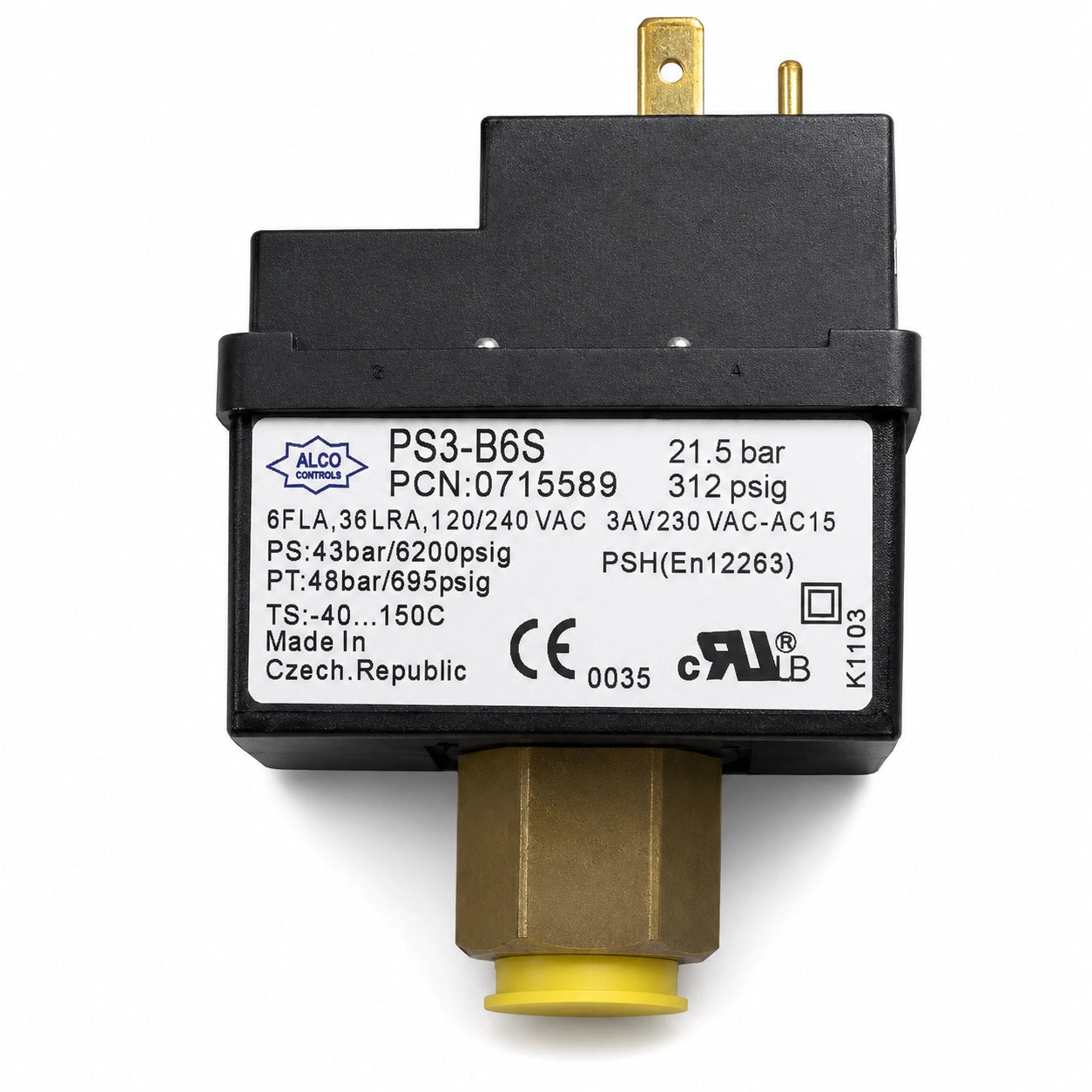

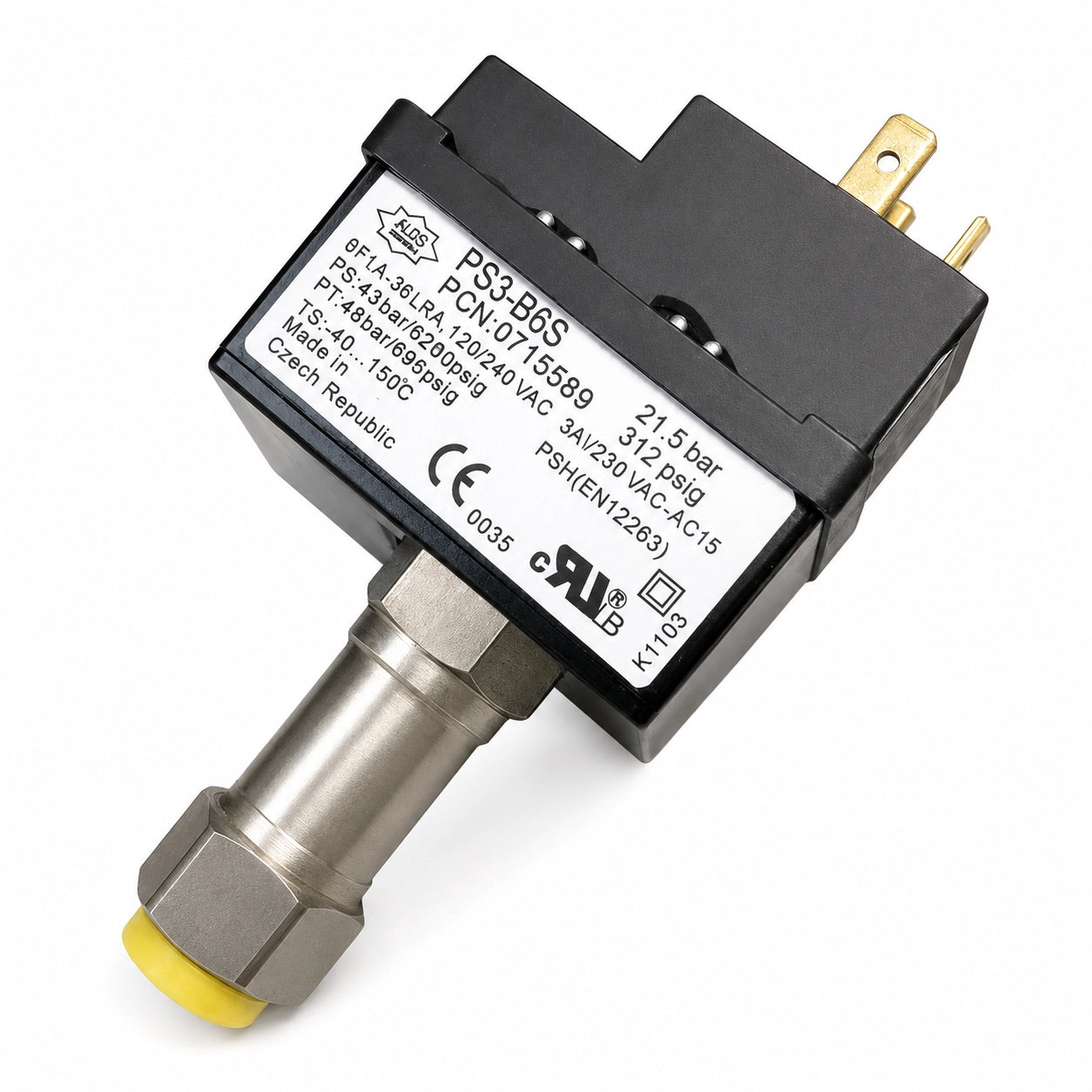

ALCO PS3-B6S Adjustable Pressure Switch, 21.5 bar 312 psig, SPDT, High-Pressure, Refrigeration/HVAC, PCN 0715589

ALCO PS3-B6S Adjustable Pressure Switch - High Pressure SPDT, Refrigeration/HVAC (PCN 0715589)

The ALCO PS3-B6S pressure switch, identified by PCN 0715589, is a robust and highly reliable adjustable high-pressure control device specifically engineered for demanding safety and operational oversight within critical refrigeration and HVAC systems. This model is designed to monitor and respond to upper pressure limits, featuring a customizable setpoint of 21.5 bar (312 psig), with predefined pressure switch (PS) at 43 bar (6200 psig) and pressure trip (PT) at 48 bar (695 psig) capabilities. This ensures comprehensive protection for compressors and other sensitive system components against potentially damaging overpressure conditions. Employing a Single Pole Double Throw (SPDT) contact configuration, the PS3-B6S offers versatile electrical control, allowing for the precise immediate activation or deactivation of associated system elements, such as compressor shutdowns, alarm signals, or cooling fans, when critical pressure thresholds are breached. It is rated for 6 FLA, 36 LRA at 120/240 VAC, and 3A @ 230V AC15, indicating its suitability for reliable operation in various robust power circuits. Constructed with a durable metallic pressure sensor for enhanced longevity and performance, and designed for a wide operating temperature range from -40°C to an impressive 150°C, this switch is capable of enduring severe environmental conditions. Manufactured in the Czech Republic and compliant with international safety standards (CE and cURus listed, PSH(EN12263)), the PS3-B6S is an indispensable component for maintaining system integrity, ensuring maximum operational safety, and extending the lifespan of valuable equipment in a broad array of industrial and commercial applications.

Key Features:

• Part Number (PCN): 0715589
• Model Series: PS3
• Configuration: B6S (Specific internal configuration)
• Type: Adjustable High Pressure Switch
• Adjustable Setpoint: 21.5 bar / 312 psig
• Pressure Switch Setpoint (PS): 43 bar / 6200 psig
• Pressure Trip Point (PT): 48 bar / 695 psig
• Contact Type: SPDT (Single Pole, Double Throw)
• Electrical Ratings: 6 FLA, 36 LRA, 120/240 VAC; 3A @ 230V AC15
• Operating Temperature (TS): -40 to 150°C
• Application: Crucial for high-pressure control, system protection, and safety cut-out in refrigeration, air conditioning, and heat pump systems dealing with high-pressure refrigerants or fluids.
• Function: Guards against excessive system pressures by activating or deactivating electrical circuits to prevent equipment damage.
• Sensor Material: Durable metallic construction for enhanced resilience and wider temperature tolerance.
• Certifications: CE, cURus, PSH(EN12263)
• Manufacturing Origin: Made in Czech Republic

Manufacturer Information:

ALCO (An Emerson Brand) ALCO is an internationally recognized and highly respected brand under Emerson's extensive Commercial & Residential Solutions division. It is globally acclaimed for its specialized expertise in the development and manufacture of critical components designed for sophisticated refrigeration, air conditioning, and comprehensive HVAC-R systems. With a venerable heritage that spans many decades, ALCO has cemented its position as a leading innovator and a profoundly trusted supplier. The brand offers an extensive portfolio comprising high-quality flow controls, meticulously engineered mechanical and electronic expansion valves, and a diverse range of essential control components, which include advanced pressure switches and highly precise thermostats. ALCO products are distinguished by their rigorous design for unparalleled precision, unwavering reliability, and optimal energy efficiency. They play a pivotal role in achieving peak system performance and ensuring crucial safety across a broad spectrum of commercial and industrial refrigeration applications, as well as in residential and commercial air conditioning sectors worldwide. ALCO components are fundamental to the effective operation, extended lifespan, and sustainable performance of complex fluid handling systems globally.
