• ABB ABB OS63GD03P SWITCH FUSE
1 1

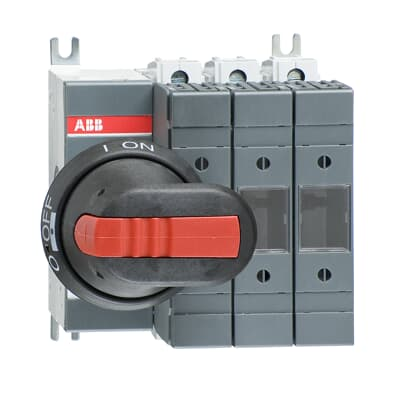

ABB OS63GD03P Switch Disconnector Fuse, 63A 690VAC, 3-Pole DIN NH000, Front Operated - Handle and Shaft Included

$180.00 USD
$180.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express

The ABB OS63GD03P is a compact and high-efficiency 3-pole switch-disconnector fuse designed for precise circuit protection and isolation in industrial electrical systems. This front-operated unit is specifically optimized for DIN NH000 size fuse links. It combines the safety functionality of a manual disconnector with the high-breaking capacity of an integrated fuse base. Engineered for durability, this model is ideal for motor protection and branch circuit applications. The product is supplied as a complete kit, including a dedicated pistol handle and the necessary drive shaft for immediate installation.

Key Features

  • High Short-Circuit Resilience: Rated for a conditional short-circuit current of up to 100kA at 500V and 80kA at 690V, providing superior system safety.
  • Enhanced Energy Efficiency: Features an exceptionally low power loss of only 2W at rated current, minimizing heat generation within electrical enclosures.
  • Robust Insulation and Protection: Offers a rated impulse withstand voltage (Uimp) of 12kV and a rated insulation voltage (Ui) of 1000V, ensuring reliable performance under electrical stress.
  • Versatile Connection: Equipped with screw terminals supporting wire cross-sections from 2.5 mm² to 25 mm², allowing for flexible and secure cabling.
  • Flexible Orientation: Designed for base mounting with dual terminal positioning (Top In - Bottom Out or Bottom In - Top Out) to accommodate various cabinet designs.

Technical Specifications

  • Brand: ABB
  • Model Number: OS63GD03P
  • Product ID: 1SCA115207R1001
  • Number of Poles: 3
  • Rated Current (In): 63A
  • Rated Operational Voltage: 690VAC
  • Compatible Fuse Size: NH000
  • Fuse System: DIN
  • Degree of Protection: IP20
  • Operating Torque: 3 – 4 N·m
  • Connection Capacity: 2.5 … 25 mm²
  • Rated Operational Power (AC-23A): 30kW at 400V / 55kW at 690V
  • Standard Compliance: IEC 60947-3
  • Dimensions: 112mm (W) x 125mm (H) x 121mm (D)
  • Net Weight: 1.18 kg
