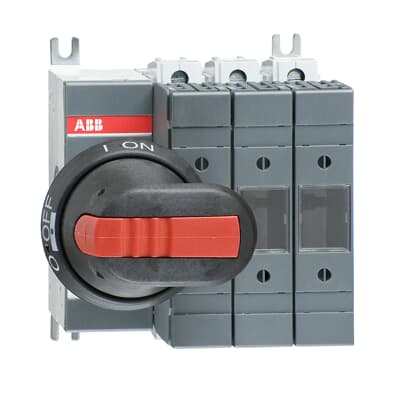

ABB OS32GD03P Switch Disconnector Fuse, 32A 690VAC, 3-Pole DIN NH000, Front Operated - Handle and Shaft Included

The ABB OS32GD03P is a high-performance 3-pole switch-disconnector fuse designed for safe circuit control and reliable overcurrent protection in industrial environments. Engineered for use with DIN NH000 size fuse links, this front-operated device serves as both a manual disconnect and a fused protection point for motors and distribution circuits. Each unit is supplied as a complete kit, including a durable pistol-grip handle and an adjustable drive shaft, ensuring a seamless installation process into low-voltage switchgear and control panels.

Key Features

• Superior Protection: Provides high-level circuit safety with a rated conditional short-circuit current of up to 100kA at 500V and 80kA at 690V.
• High Insulation Strength: Features a rated impulse withstand voltage (Uimp) of 12kV and a rated insulation voltage (Ui) of 1000V, providing maximum reliability during voltage surges.
• Energy Efficient: Optimized internal design results in an extremely low power loss of only 1W per pole, reducing heat dissipation within the enclosure.
• Flexible Installation: Supports base mounting with flexible cable entry options (Top/Bottom) and accommodates wire cross-sections from 2.5 mm² to 25 mm².
• Industrial Standard Compliance: Fully compliant with IEC 60947-3 standards, ensuring safety and performance in demanding AC-23A applications.

Technical Specifications

• Brand: ABB
• Model: OS32GD03P
• Product ID: 1SCA115189R1001
• Number of Poles: 3
• Rated Operational Current (Ie): 32A
• Rated Operational Voltage (Ue): 690VAC
• Compatible Fuse Size: NH000
• Fuse System: DIN
• Enclosure Rating: IP20
• Operating Mechanism: 03 (Left Side)
• Connection Type: Screw Terminals (Hexagon 4)
• Tightening Torque: 3 – 4 N·m
• Operational Power (AC-23A): 15kW at 400V / 22kW at 690V
• Dimensions: 112mm (W) x 125mm (H) x 121mm (D)
• Net Weight: 1.18 kg
