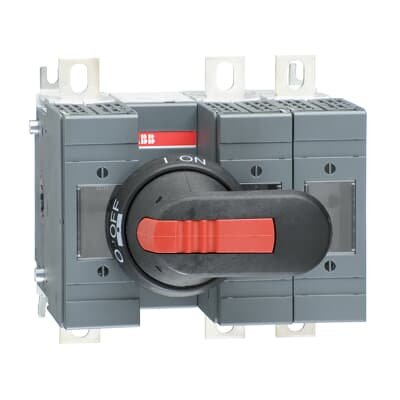

ABB OS160GD12P Switch Disconnector Fuse, 160A 690VAC, 3-Pole DIN NH000/NH00, Front Operated - Handle and Shaft Included

$260.00 USD
$260.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express

The ABB OS160GD12P is a high-performance 3-pole switch-disconnector fuse engineered for demanding industrial power distribution and motor protection applications. Designed for maximum reliability, it supports both DIN NH000 and NH00 fuse links. This specific model features an operating mechanism located between the poles (12), offering a specialized configuration for balanced torque and space efficiency. Rated at 160A with a maximum operational voltage of 690VAC, it ensures safe circuit isolation and high-capacity fault protection. The unit is provided as a comprehensive kit, complete with a professional-grade pistol handle and a drive shaft.

Key Features

  • Specialized Mechanism: Equipped with the "12" mechanism type (Between the Poles), providing a centered operation point for specific panel board layouts.
  • High Breaking Performance: Delivers a rated conditional short-circuit current of up to 100kA at 500V and 80kA at 690V, ensuring safety during high-energy faults.
  • Industrial Durability: Built to IEC 60947-3 standards with a high rated insulation voltage (Ui) of 1000V and an impulse withstand voltage (Uimp) of 8kV.
  • Flexible Installation: Features lug terminals with a 20mm width, supporting secure power cable connections with a tightening torque range of 15–22 N·m.
  • Optimized Safety: Rated for AC-23A utilization, allowing for the switching of highly inductive loads such as motors, even under heavy-duty conditions.

Technical Specifications

  • Brand: ABB
  • Model Number: OS160GD12P
  • Product ID: 1SCA115643R1001
  • Rated Current (In): 160A
  • Rated Operational Voltage: 690VAC
  • Number of Poles: 3
  • Compatible Fuse Sizes: NH000, NH00
  • Fuse System: DIN
  • Operating Mechanism: 12 (Between the Poles)
  • Mounting Type: Base mounting
  • Power Loss: 8W per pole (at rated current)
  • Terminal Type: Lug terminals (20mm width)
  • Standard Compliance: IEC 60947-3
  • Dimensions: 147mm (W) x 140mm (H) x 130mm (D)
  • Net Weight: 2.035 kg
