ABB OS160GD03P Switch Disconnector Fuse, 160A 690VAC, 3-Pole DIN NH000/NH00, Front Operated - Handle and Shaft Included

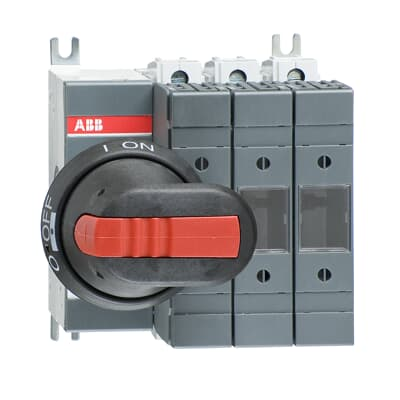

The ABB OS160GD03P is an industrial-grade 3-pole switch-disconnector fuse designed for high-reliability circuit protection and isolation. This front-operated unit is specifically built to accommodate DIN-standard NH000 and NH00 fuse links. Combining the safety of a disconnector with the high-breaking capacity of a fuse, it provides a compact and efficient solution for power distribution and motor protection. The package is supplied as a complete kit, including a robust pistol-grip handle and an adjustable mounting shaft.

Key Features

• High Performance: Supports a conventional thermal current of 160A and offers impressive operational power ratings up to 132kW at 690V (AC-23A).
• Flexible Installation: Features a base-mounting design with versatile "Top In - Bottom Out" or "Bottom In - Top Out" terminal configurations to accommodate various wiring requirements.
• Enhanced Safety: IP20-rated protection against accidental contact, with a high insulation voltage of 1000V and an 8kV impulse withstand voltage.
• Efficient Operation: Minimal power loss of only 8W at rated current, contributing to energy efficiency and reduced heat within enclosures.
• Complete Assembly: Includes a dedicated pistol handle and drive shaft, ensuring compatibility and ease of installation for the end-user.

Technical Specifications

• Brand: ABB
• Catalogue Number: OS160GD03P
• Product ID: 1SCA115399R1001
• Number of Poles: 3
• Rated Current (In): 160A
• Rated Operational Voltage: 690VAC
• Compatible Fuse Sizes: NH000, NH00
• Fuse System: DIN
• Short-Circuit Capacity (Inc): 80kA at 690V / 100kA at 500V
• Operating Mechanism: 03 (Left Side)
• Terminal Type: Lug terminals (20mm width)
• Tightening Torque: 15 – 22 N·m
• Compliance: IEC 60947-3
• Dimensions: 147mm (W) x 140mm (H) x 130mm (D)
• Net Weight: 2.035 kg
