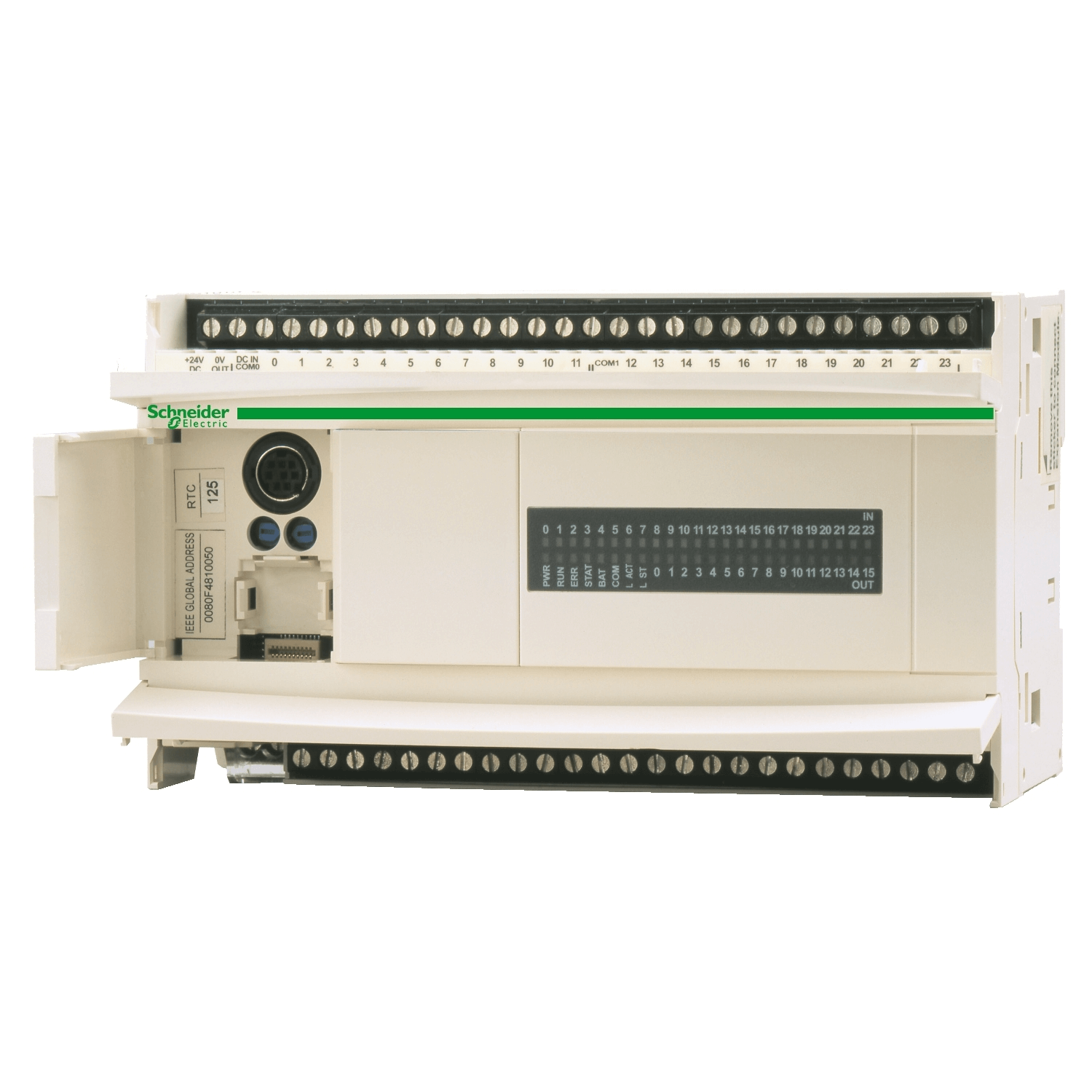

Schneider Electric TWDLCAA40DRF Twido Compact Base Controller — 100–240 VAC Supply, 14 Digital Inputs (24 VDC), 10 Relay Outputs - Compact PLC

Product overview The Schneider Electric TWDLCAA40DRF is a Twido-series compact base controller designed for small-machine and OEM automation applications. It integrates a universal 100–240 VAC power supply with 14 digital inputs (24 VDC sensing) and 10 relay outputs, providing a compact, field-ready control solution with isolated switching for loads and actuators.

Key specifications

• Manufacturer: Schneider Electric (Twido series)
• Model: TWDLCAA40DRF
• Power supply: 100–240 VAC mains input (universal AC)
• Digital inputs: 14 inputs, designed for 24 VDC field signals (PNP/N.O. style per Twido input standard)
• Outputs: 10 relay outputs, providing galvanic isolation between controller logic and switched loads
• Form factor: Compact base controller for small control panels and machine-mounted enclosures
• Programming: Compatible with Schneider Electric TwidoSuite programming tools (confirm software version compatibility)

Features and benefits

• Universal mains input (100–240 VAC) for global deployment without DC power conversion
• Relay outputs allow safe isolation for switching contactors, solenoids, lamps, and other AC/DC loads
• 14 discrete inputs support common 24 VDC sensors (pushbuttons, proximity sensors, switches)
• Compact footprint reduces panel space and simplifies integration in OEM machines
• Reliable Schneider Electric build quality and integration with the Twido ecosystem for straightforward configuration and diagnostics

Typical applications

• Small-machine sequencing and logic control
• Packaging, material handling, and conveyor control
• OEM control panels requiring isolated outputs and universal AC compatibility
• Replacement or upgrade of legacy compact PLCs in industrial machinery

Installation and configuration notes

• Ensure field input devices supply 24 VDC for inputs; verify wiring and polarity per Twido installation guide.
• Verify relay contact ratings and load requirements against Schneider Electric datasheet before connecting inductive or high-current loads.
• Use TwidoSuite for program development, troubleshooting and firmware compatibility checks.
• Follow all applicable local electrical codes and Schneider Electric installation instructions for safe mounting, grounding, and wiring.
