Schneider Electric TWDLCAA24DRF Twido Compact Base PLC Controller, 14x 24VDC Digital Inputs, 10x Relay Outputs, 100-240VAC Supply

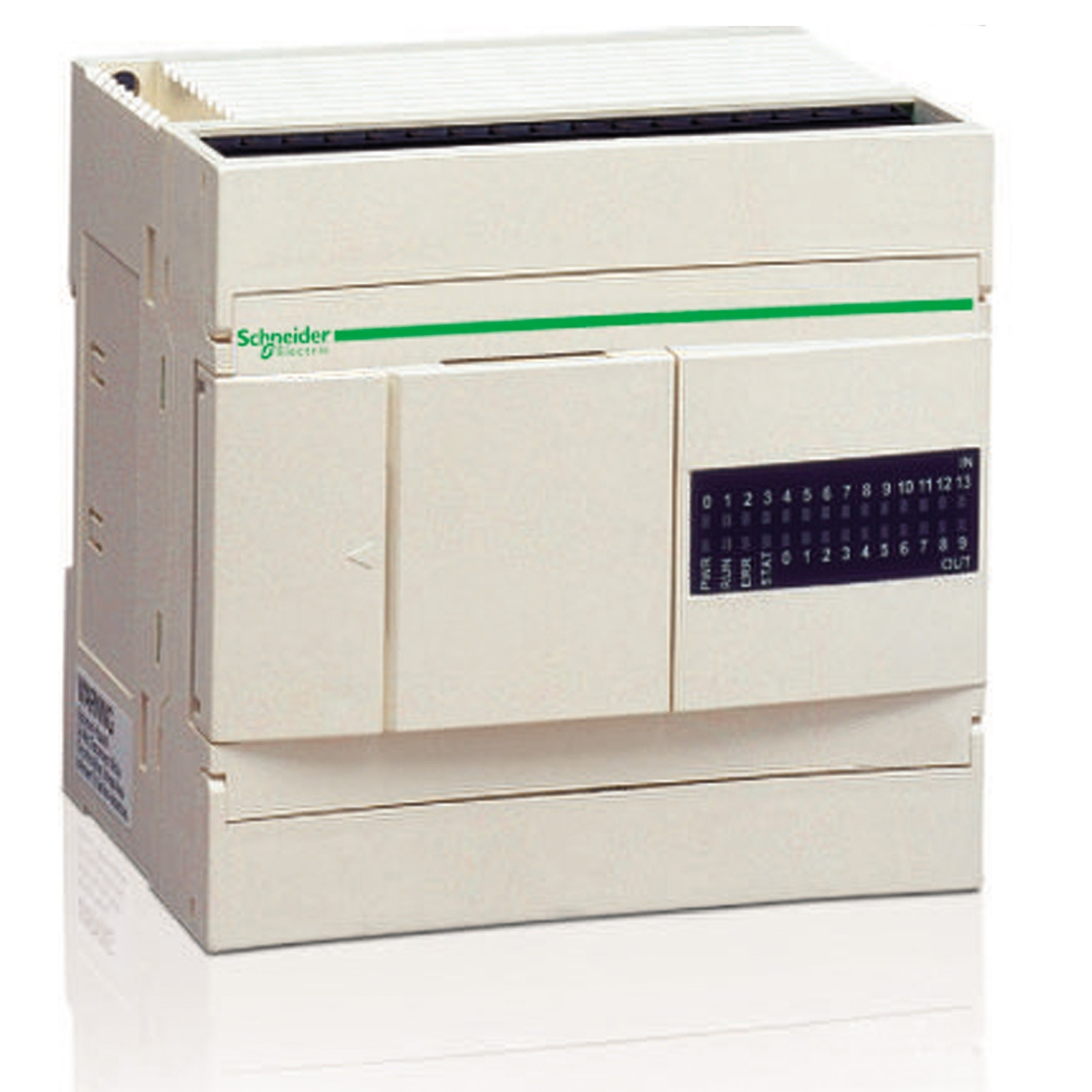

Schneider Electric TWDLCAA24DRF Twido Compact Base PLC Controller

The Schneider Electric TWDLCAA24DRF is a versatile and robust compact base programmable logic controller (PLC) from the renowned Twido series. Designed for a wide range of industrial automation applications, this controller provides efficient and reliable control for small to medium-sized machines and processes. Its integrated I/O, extendable architecture, and communication capabilities make it an ideal solution for streamlining operations, enhancing system flexibility, and improving overall operational efficiency in various industrial and commercial settings.

Key Features:

• Part Number: TWDLCAA24DRF
• Product Type: Compact Base PLC Controller
• Range: Twido
• Discrete I/O: 24 (Total)
• Discrete Inputs: 14 (24 VDC; Sink or Source logic; Input voltage limits 20.4-28.8 V)
• Discrete Outputs: 10 (Relay type; Load current 2A at 240 VAC / 30 VDC)
• Rated Supply Voltage: 100-240 VAC (85-264 V limits, 50/60 Hz)
• Expandability: Supports up to 4 I/O Expansion Modules, allowing for a maximum of 120 I/O (spring terminal), 152 I/O (HE-10 connector), or 88 I/O (removable screw terminal).
• Integrated Communication: Non-isolated serial link (mini DIN) with Modbus/character mode (RTU/ASCII RS485 half duplex, 38.4 kbit/s).
• Program Memory: 3000 Instructions
• Memory Backup: Internal RAM with Lithium battery for data retention (30 days, 10 hours, 10 years).
• Special Functions: Event processing, PID control, and high-speed counting inputs (1x 20 kHz, 3x 5 kHz).
• Power Consumption: 33 VA (at 100 V) to 40 VA (at 264 V).
• Protection Type: Internal fuse for power protection; Insulation resistance >10 MOhm at 500V.
• Compact Dimensions (WxHxD): 90 mm x 95 mm x 70 mm (3.5 in x 3.7 in x 2.8 in).
• Certifications: UL, CSA, CE
• Environmental Ratings: IP20 degree of protection; Ambient operating temperature 0…55 °C (32…131 °F).
