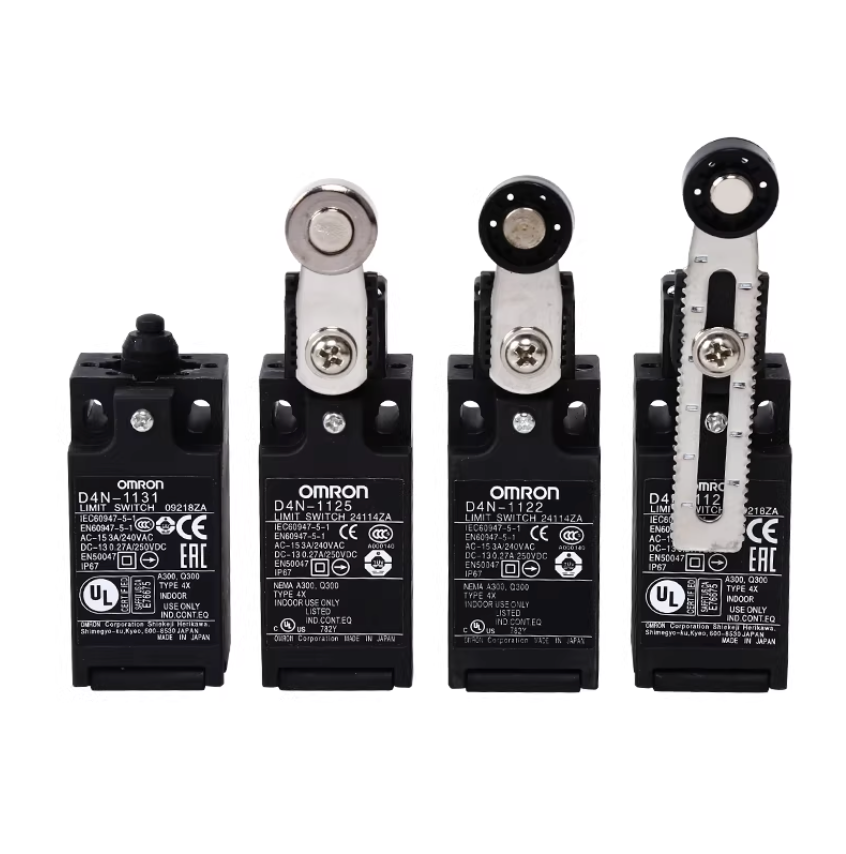

OMRON D4N-1162 Safety Limit Switch, 1NC/1NO, IP67 Protection, One-way Roller Arm Lever
Precio habitual
$25.00 USD
Precio habitual
Precio de oferta
$25.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The OMRON D4N-1162 is a safety limit switch with a one-way roller arm lever designed for horizontal operation. Its robust construction and snap-action mechanism ensure reliable performance in critical safety applications.
Key Features:
- One-way action roller arm lever with a 12.5 mm diameter resin roller
- Horizontal operation type
- Snap-action mechanism
- 1NC/1NO contact form for versatile applications
- IP67 rated for high protection in challenging environments
- PG13.5 conduit connection
- Supports general and micro load applications
| Product ID | D4N-1162 |
| Operating Mechanism | Snap action |
| Contact Form | 1NC/1NO |
| Degree of Protection | IP67 |
| Operating Temperature | -30 to 70 ℃ |
| Ambient Humidity | 95% RH max. |
| Operating Frequency | 30 operations/min max. |
| Conduit Size | PG13.5 |
| Durability | 15,000,000 operations min. |
| Vibration Resistance | 10 to 55 Hz, 0.75 mm single amplitude |
| Shock Resistance | Destruction: 1000 m/s², Malfunction: 300 m/s² |
