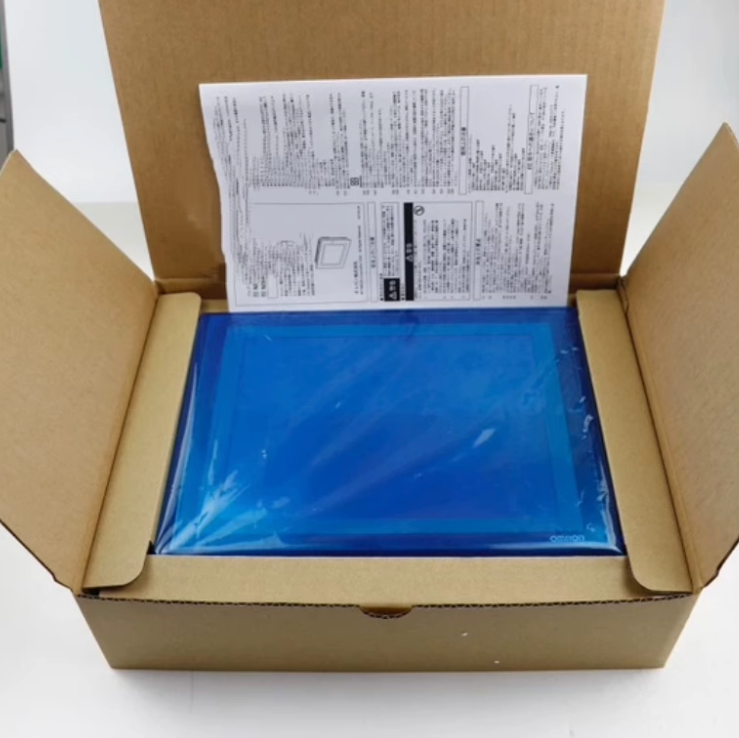

OMRON NS8-TV00B-V2 NS Series Programmable Terminal, 8.4-inch TFT Color LCD, 640x480 VGA, Black Case
Verfügbarkeit für Abholungen konnte nicht geladen werden
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The OMRON NS8-TV00B-V2 is a high-performance 8.4-inch NS-series Programmable Terminal designed for advanced factory automation environments. This model features a high-definition TFT color LCD with VGA (640 x 480) resolution, capable of supporting up to 32,768 colors for realistic image rendering. Housed in a slim, space-saving black case with a depth of only 48.5 mm, it is optimized for modern control panels.
The NS8-TV00B-V2 provides extensive connectivity through dual RS-232C serial ports, a USB Master port for printer support, and a USB Slave port for high-speed screen data transfer. It is equipped with 60 MB of internal screen memory and supports standard OMRON features such as Smart Active Parts (SAP) Library, which dramatically reduces the effort required to create PLC ladder programming and complex HMI screens.
| Product ID | NS8-TV00B-V2 |
| Series | NS8-V2 (NS Series) |
| Display Type | 8.4-inch High-definition TFT color LCD |
| Effective Display Area | Width 170.9 x Height 128.2 mm |
| Resolution | 640 x 480 pixels (VGA) |
| Display Colors | 256 colors |
| Image Data Colors | 32,768 colors (BMP/JPG support) |
| Case Color | Black |
| Built-in Ethernet | No |
| Field of Vision | Right/left: ±65°, Top: 50°, Bottom: 60° |
| Screen Data Capacity | 60 Mbytes |
| Memory Card Support | Supported (CompactFlash slot) |
| Backlight Service Life | 50,000 hours minimum |
| Touch Panel Method | Matrix Resistive membrane |
| Number of Switches | 768 (32 horizontal x 24 vertical) |
| Serial Comm Port A | RS-232C, D-Sub 9-pin female |
| Serial Comm Port B | RS-232C, D-Sub 9-pin female |
| USB Slave | 1 Port (USB 1.1, Type B) |
| USB Master (Host) | 1 Port (USB 1.1, Type A) |
| Rated Power Supply | 24 VDC |
| Allowable Voltage Range | 20.4 to 27.6 VDC |
| Power Consumption | 25 W maximum |
| Dimensions (W x H x D) | 232 x 177 x 48.5 mm |
| Panel Cutout | 220.5 x 165.5 mm |
| Degree of Protection | IP65F / NEMA4 (Front panel) |
| Applicable Standards | cULus, CE |
