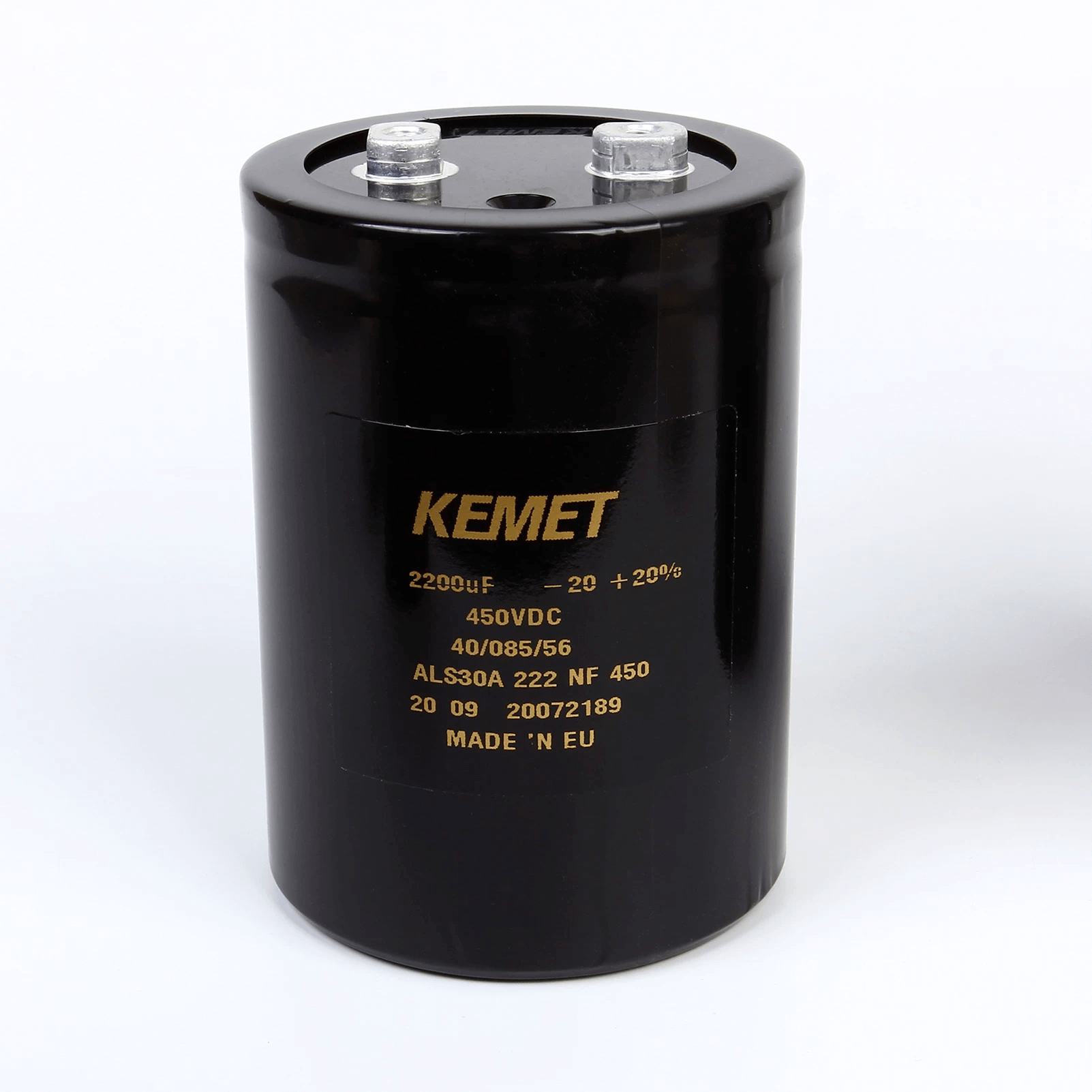

KEMET ALS30A222NF450 — ALS30 Series Screw‑Terminal Aluminum Electrolytic Capacitor, 2200 µF ±20%, 450 VDC, 20,000 hr, Ø77×105 mm, Lead Spacing 31.8 mm, ESR 59 mΩ @100 Hz, Ripple 12.2 A — Pack of 5

KEMET ALS30A222NF450 — ALS30 Series Screw‑Terminal Aluminum Electrolytic Capacitor, 2200 µF ±20%, 450 VDC, 20,000 hr, Ø77×105 mm, Lead Spacing 31.8 mm, ESR 59 mΩ @100 Hz, Ripple 12.2 A — Pack of 5

$500.00 USD
$500.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express

The KEMET ALS30A222NF450 is a high‑reliability screw‑terminal aluminum electrolytic capacitor from the ALS30 series, engineered for demanding power electronics applications such as DC link, bulk energy storage, smoothing, and industrial power supplies. This listing is for a pack of 5 units. Each capacitor is rated 2200 µF at 450 VDC and is specified for long operational life with robust screw‑terminal connections.

Key specifications

  • Manufacturer / Brand: KEMET
  • Manufacturer part number: ALS30A222NF450
  • Distributor reference: Mouser 80-ALS30A222NF450
  • Series: ALS30
  • Product type: Screw‑terminal aluminum electrolytic capacitor (radial can, chassis mount)
  • Capacitance: 2200 µF
  • Capacitance tolerance: ±20%
  • Rated voltage (DC): 450 VDC
  • Rated life: 20,000 hours
  • Operating temperature range: −40 °C to +85 °C
  • Diameter: 77 mm
  • Length / Height: 105 mm
  • Lead spacing (terminal pitch): 31.8 mm
  • Termination style: Screw terminals (chassis mount)
  • ESR: 59 mΩ (measured @ 100 Hz)
  • Ripple current: 12.2 A (test frequency 100 Hz)
  • Leakage current: 5.94 mA
  • Test frequency: 100 Hz
  • Packaging: Pack of 5 (bulk)
  • Unit weight: 690 g

Features & benefits

  • High 2200 µF capacitance at 450 VDC suitable for DC link and high‑voltage energy storage applications.
  • Extended 20,000‑hour life rating for continuous industrial service.
  • Low ESR (59 mΩ) and high ripple current capacity (12.2 A) support efficient thermal performance under heavy ripple conditions.
  • Screw‑terminal termination provides secure, low‑impedance connections to busbars and heavy wiring.

Handling & installation notes

  • Confirm polarity before installation.
  • Use manufacturer‑recommended terminal torque to prevent damage to terminals or seals.
  • Ensure adequate ventilation and spacing to dissipate ripple losses and achieve rated life.
  • Verify mechanical clearance for Ø77×105 mm body and 31.8 mm terminal spacing in your assembly.

Ordering & technical resources

  • Order using KEMET part ALS30A222NF450 or Mouser 80-ALS30A222NF450. Consult the official KEMET datasheet and ECAD models for full mechanical drawings, test conditions, and additional electrical characteristics.
